Paper Feed
SM 4-93 D062/D063/D065/D066
Replacement
and
Adjustment
If the LCT is connected, disconnect it and pull it away from the machine.
Pull out all three trays (do not remove).

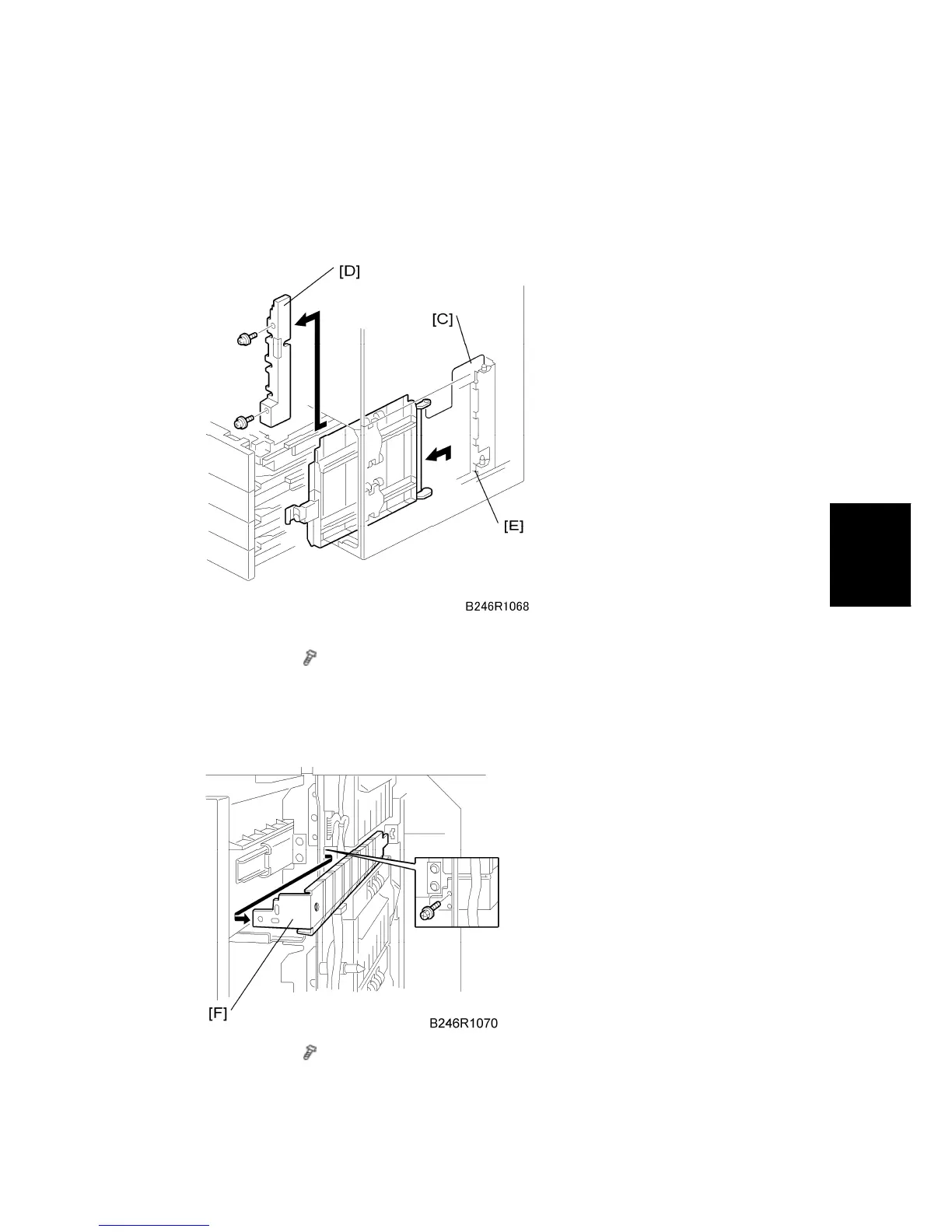

1. Nylon peg [A]
2. Toner collection bottle [B]
3. Vertical transport guide [C]
4. Inner cover [D] (
x 2)
Reinstallation
When re-installing the vertical transport guide, remove the lower right cover then
insert from [E].
5. Guide plate [F] (
x 1) (1st feed unit only)
To Next Page
