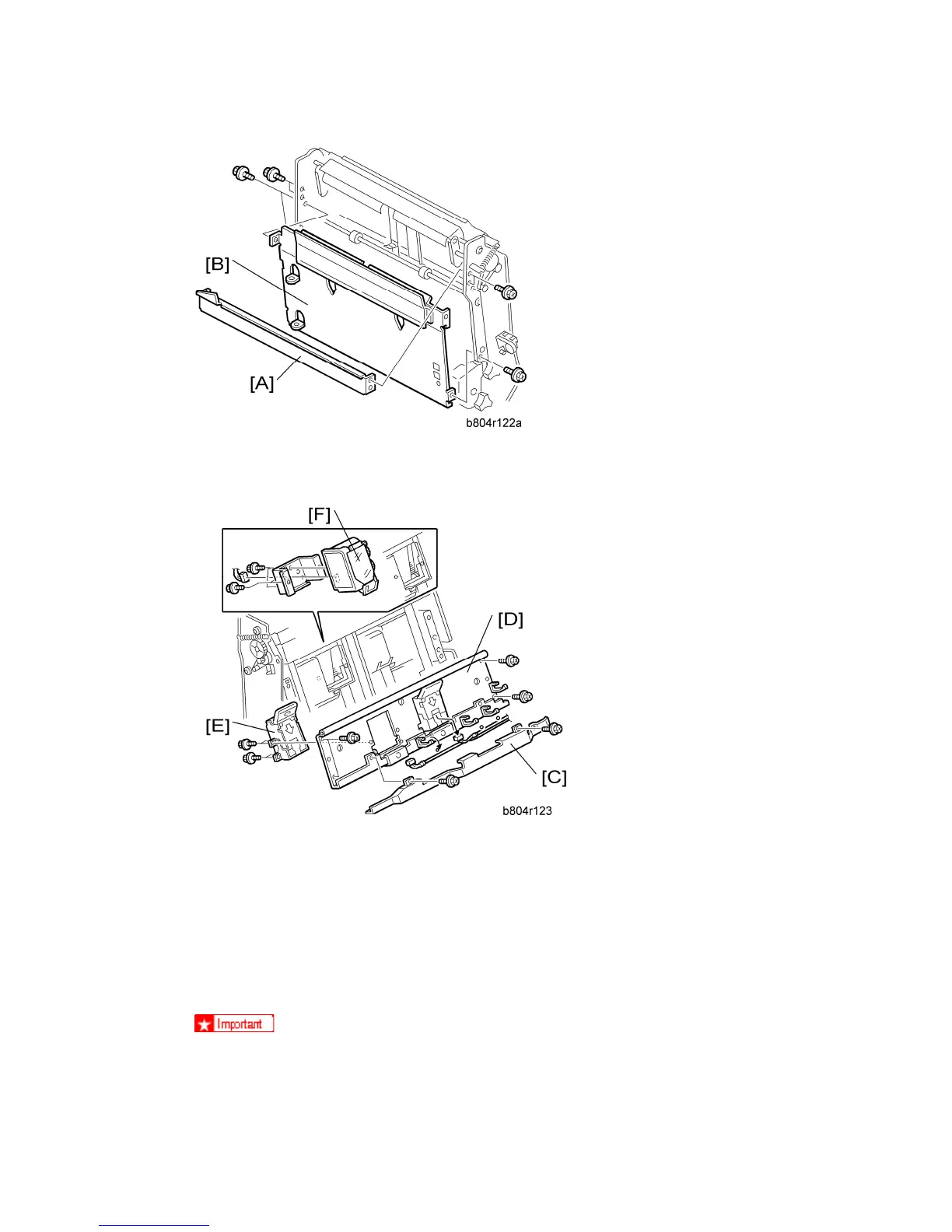

Booklet S
tapler Unit
D373/D37
4 20
SM
3.
S
tay [A] (
x4).
4.
Left plate [B] (
x4)
5.
Harness cover [C] (
x2)
6.
Booklet stapler support stay [D] (
x4,
x2,
=
x4)
7.
Booklet stapler [E] (
x4)
8.
Booklet stapler motor [F] (
x2
,
x1)
To Reattach the Booklet Stapler Motor
1.
Reattach the booklet stapler motor
.
Do not tighten the screws.
950
952
