5. Turn on the main power switch of the machine.

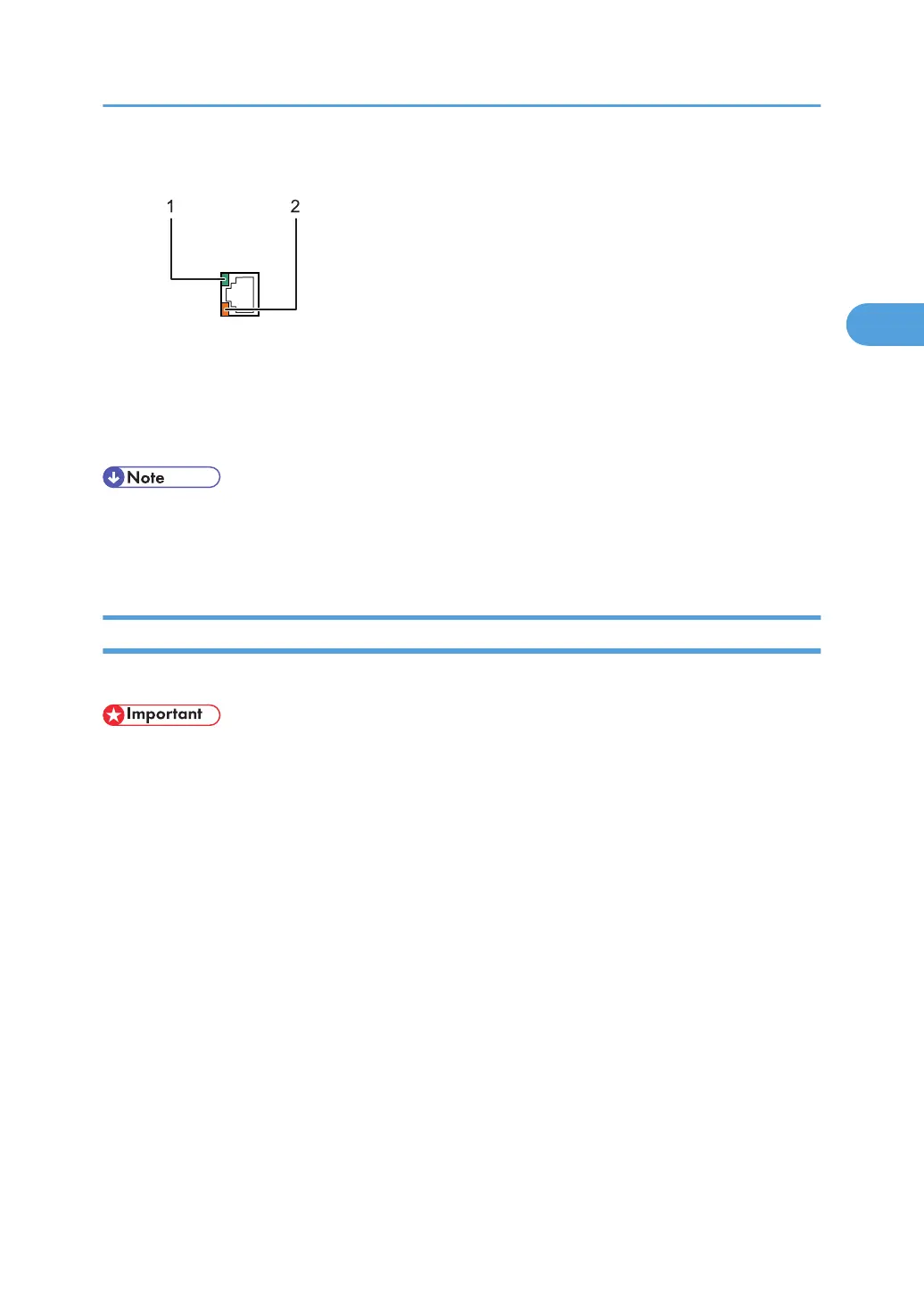

1. Indicator (green)
Lights up green when the machine is connected correctly to the network.
2. Indicator (yellow)
Lights up yellow when 100BASE-TX is in operation. Goes off when 10BASE-T is in operation.
• For details about how to turn on the main power switch, see "Turning On the Power", About This
Machine.
• For details about installing the printer driver, see "Preparing the Machine", Printer Reference.
Connecting to the Gigabit Ethernet Interface
This section describes how to connect the Ethernet interface cable to the Gigabit Ethernet port.
• If the main power switch is on, turn it off.
• Use the following Ethernet cables.
• When using 100BASE-TX/10BASE-T:
Unshielded Twisted Pair Cable (UTP) or Shielded Twisted Pair Cable (STP) and Category type
5 or more
• When using 1000BASE-T:
Unshielded Twisted Pair Cable (UTP) or Shielded Twisted Pair Cable (STP) and Category type
5e or more
Connecting to the Interfaces
63
