1. Guide to the Printer

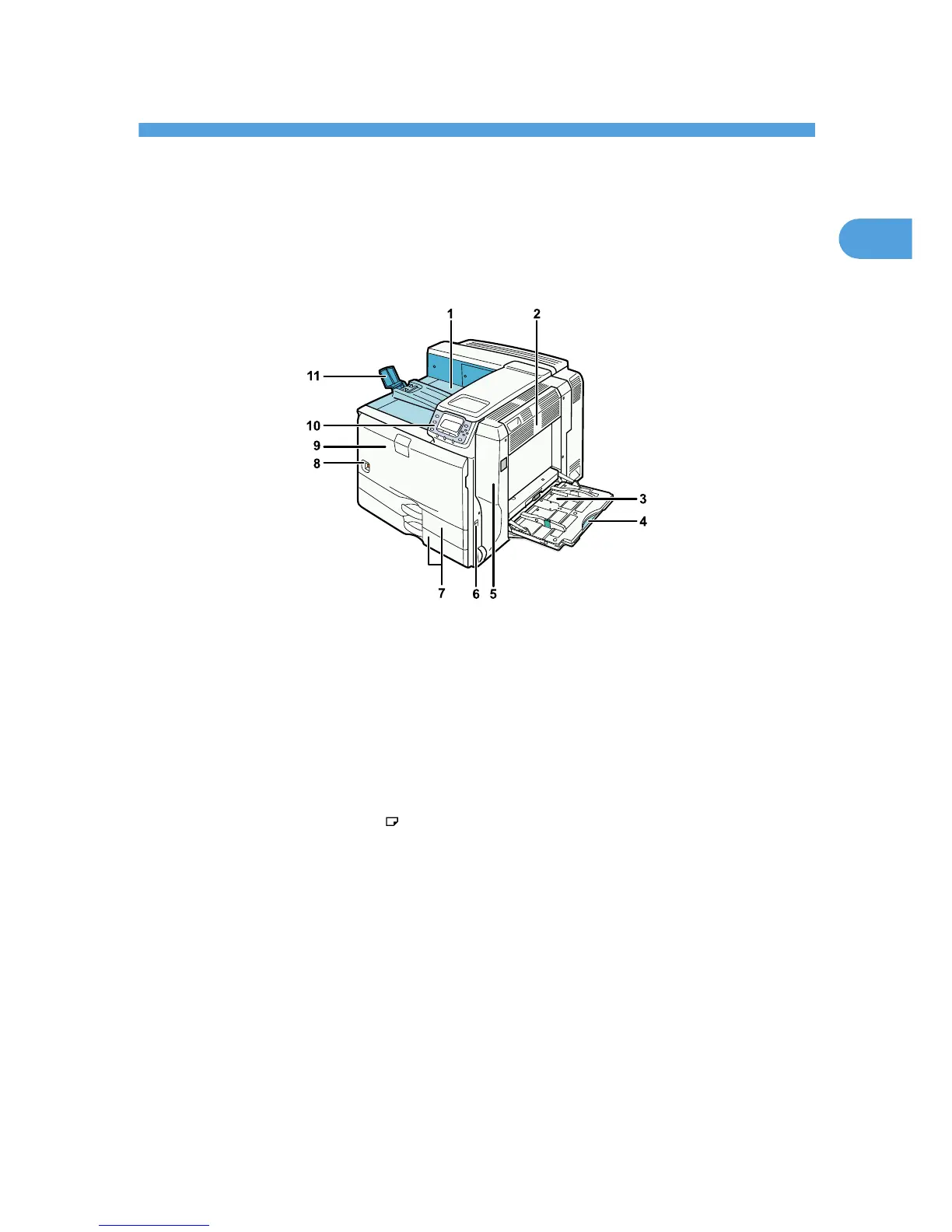

Exterior: Front View
This section explains names and functions of the parts on the front and right side of the printer.
BEK193S
1. Standard Output Tray
Printed pages are output here.
2. Upper Right Cover
Open this cover to remove jammed paper.
3. Bypass Tray
Up to 100 sheets of plain paper can be loaded.
4. Bypass Tray Extension
When loading paper larger than A4 , pull out the bypass tray extension.
5. Right Cover
Open this cover to remove jammed paper, or to replace Maintenance Kit B (the fusing unit and transfer unit).
6. Handle
Pull out this handle when lifting the printer.
7. Tray 1, Tray 2
Up to 550 sheets of plain paper can be loaded in each tray.
8. Power Switch
Use this switch to turn the power on and off.
9. Front Cover
Open this cover to replace the toner or Maintenance Kit A (the development unit).
13
