3. Connect the other end of the cable to a network hub, for example, to connect the printer to
the network.
• For details about configuring the network environment, see "Ethernet Configuration".
• p.37 "Installing the Gigabit Ethernet Board"
• p.55 "Ethernet Configuration"

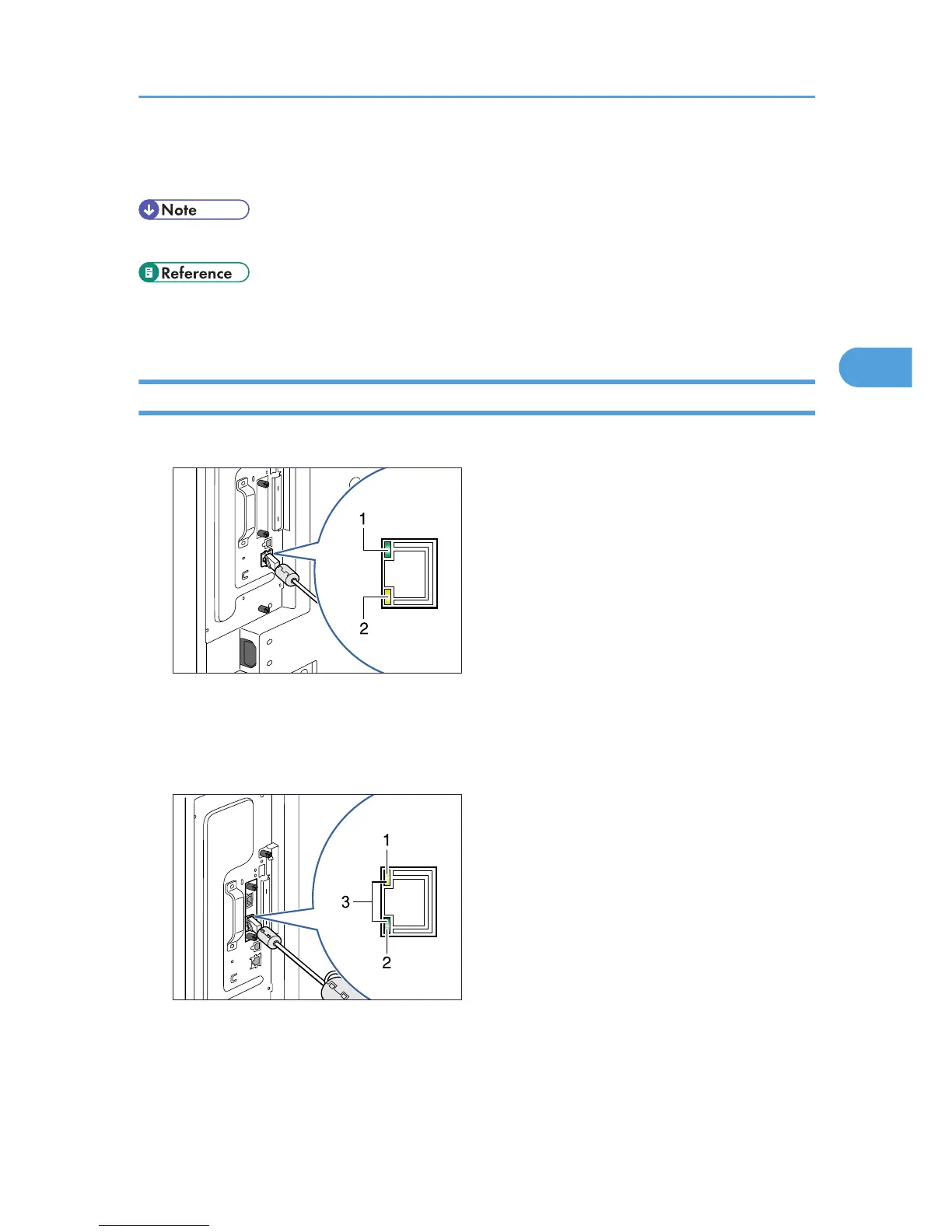

Reading the LED Lamps
Standard Ethernet port
1. Green: turns on when the printer is properly connected to the network.
2. Yellow: turns on when 100BASE-TX is in use. It turns off when 10BASE-T is in use.
Ethernet port of the Gigabit Ethernet board
1. Yellow: turns on when 100BASE-TX is in use.
2. Green: turns on when 10BASE-T is in use.
3. Both the green and yellow lamps are lit when 1000BASE-T is in use.
Ethernet Cable Connection
51
