INSTALLATION PROCEDURE 31 October 2001

1-20

- For C217 and C225 -

1. Turn off the main switch and unplug the power cord.

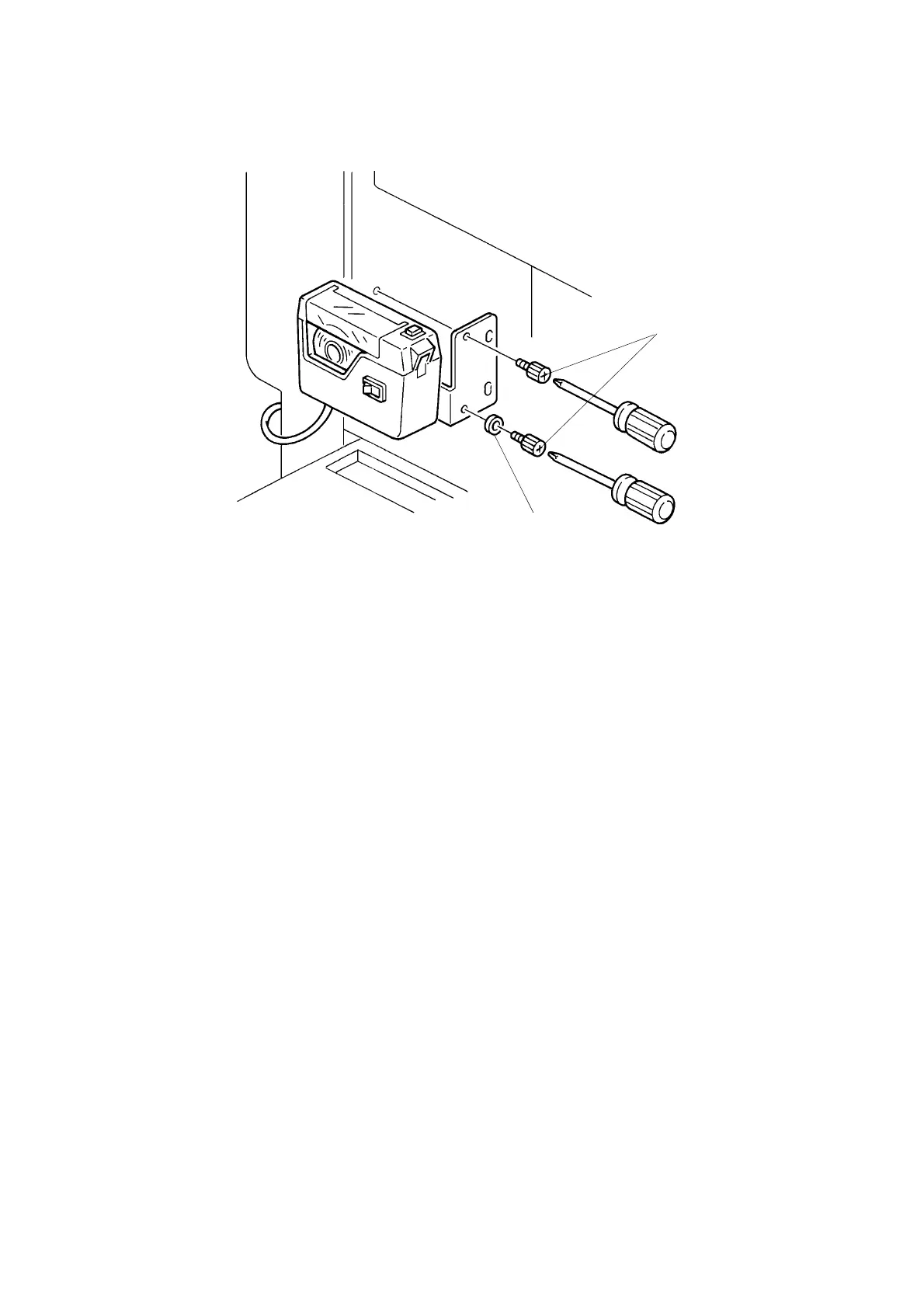

2. Install the tape marker on the main body with two knob screws [A]

(accessories) in the two inner holes of the tape marker bracket.

NOTE: 1) Tighten the knob screws with a screwdriver to prevent them from

coming loose.

2) Install the lock washer [B] (accessory) with the lower of the two knob

screws.

3. Refer to “Common Steps”.

C238I503.PCX

[A]

[B]
