DRUM 31 October 2001

3-26

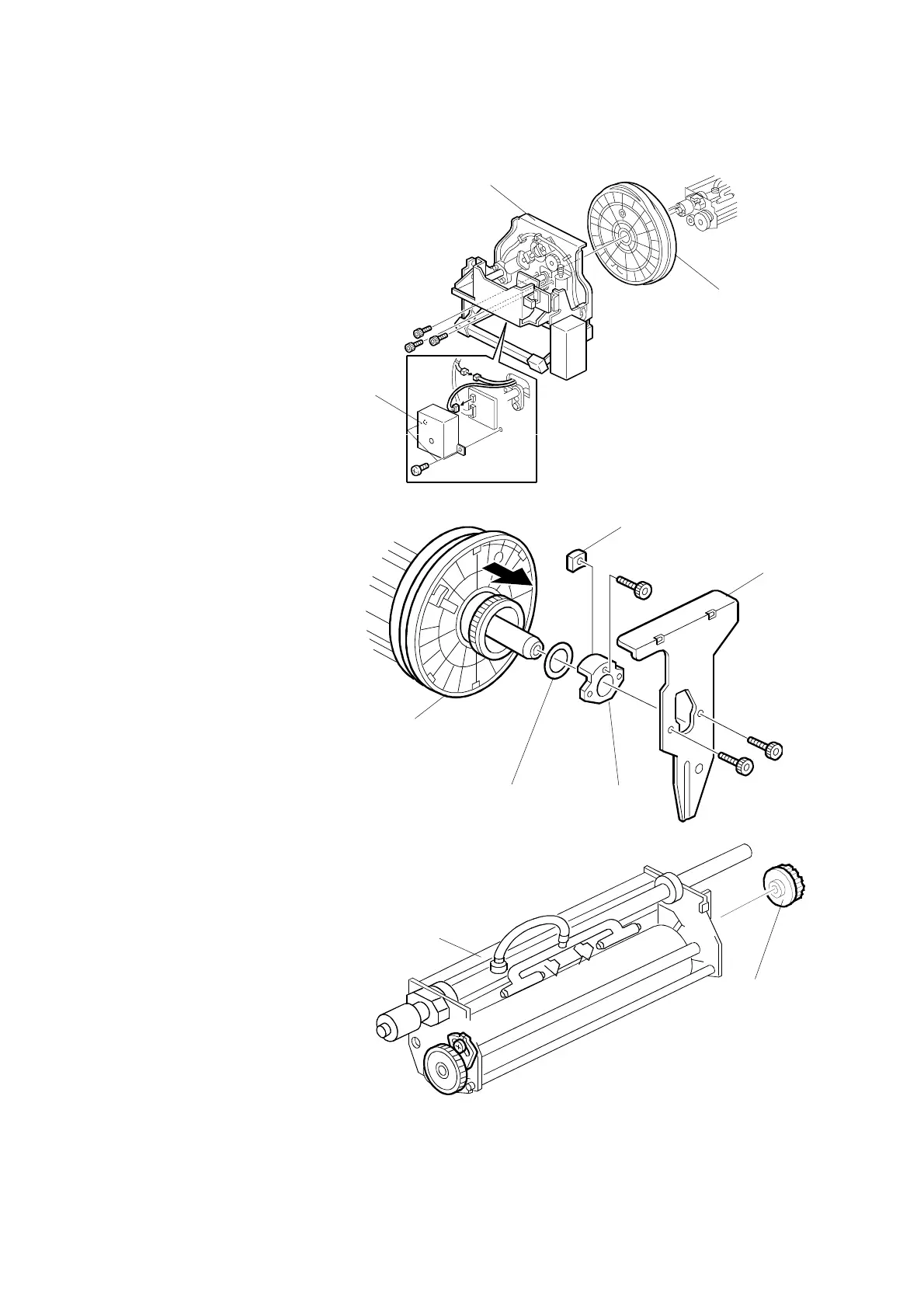

3.8.5 INK ROLLER UNIT / INK ROLLER ONE-WAY CLUTCH

• Metal screen (☛ 3.8.3)

• Pump covers (☛ 3.8.4)

[A]: Board cover (! x 2)

[B]: Front stay (" x 2, ! x 3)

[C]: Front flange

[D]: Rear stay (! x 2)

[E]: Rear stoppers (! x 1)

[F]: Ring

[G]: Rear flange

[H]: Ink roller unit

[I]: Ink roller one-way clutch

C238R023.WMF

C238R060.WMF

C238R033.WMF

[D]

[E]

[F]

[G]

[E]

[I]

[H]

[A]

[B]

[C]
