COVERS / BOARDS 31 October 2001

3-2

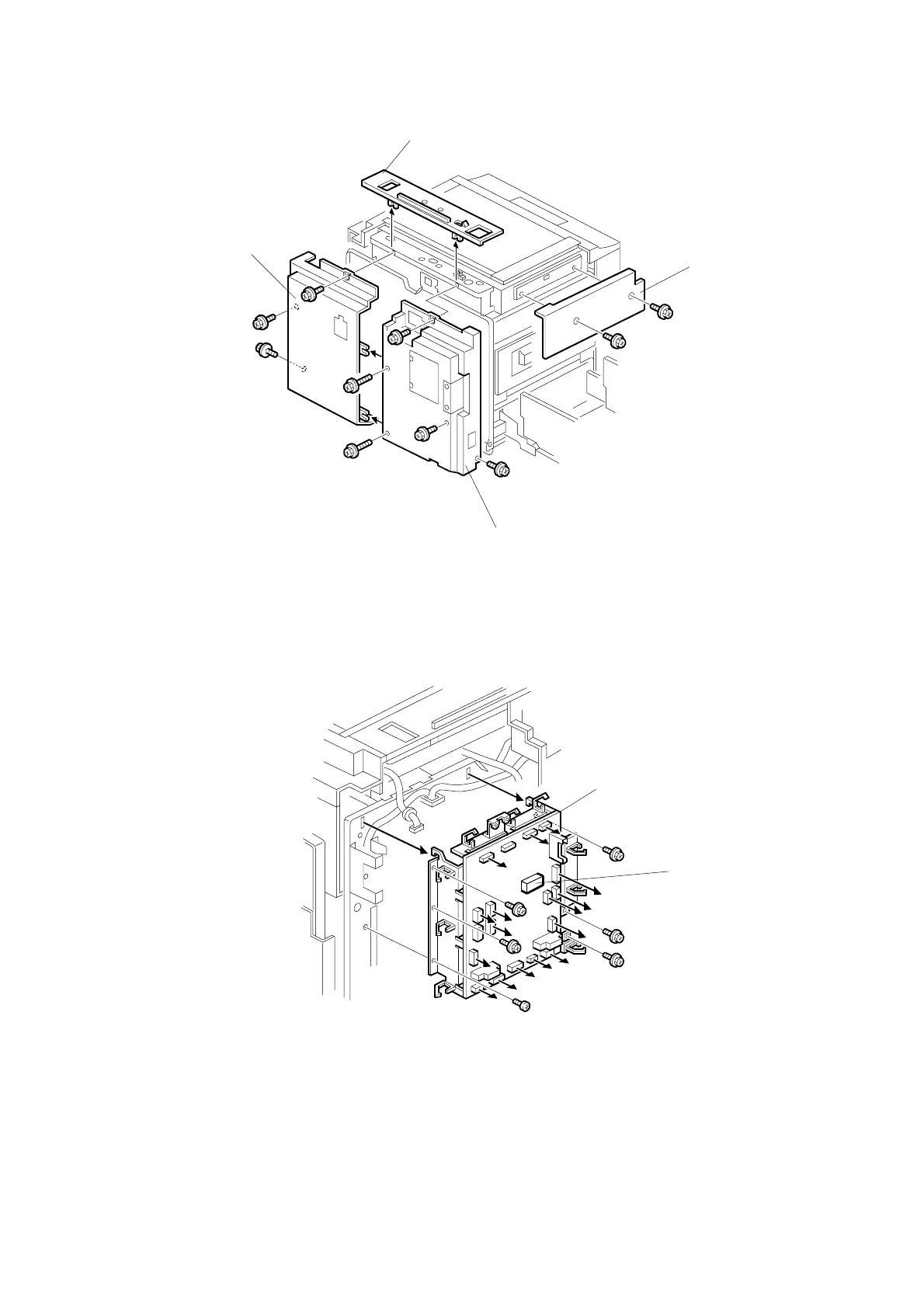

3.2.2 REAR COVERS

[A]: Rear left cover (! x 5)

[B]: Rear right cover (! x 3)

[C]: Upper left cover (! x 2)

[D]: Rear upper cover

3.2.3 MPU

• Rear left cover, Rear right cover (☛ 3.2.2)

[A]: MPU (" x 17, ! x 6, 9 clamps)

CAUTION: Move the RAM [B] from the old board to the new one, so that the SP

mode settings will be transferred to the new board. Adjust the master

end sensor (☛ 3.5.4) after installing the new MPU.

C238R007.WMF

C238R008.WMF

[A]

[B]

[C]

[D]

[A]

[B]
