31 October 2001 SCANNER
3-5
Replacement
Adjustment
[C]: Lamp stabilizer (" x 2, ! x 5)
[D]: Scanner motor (! x 2, 1 spring)

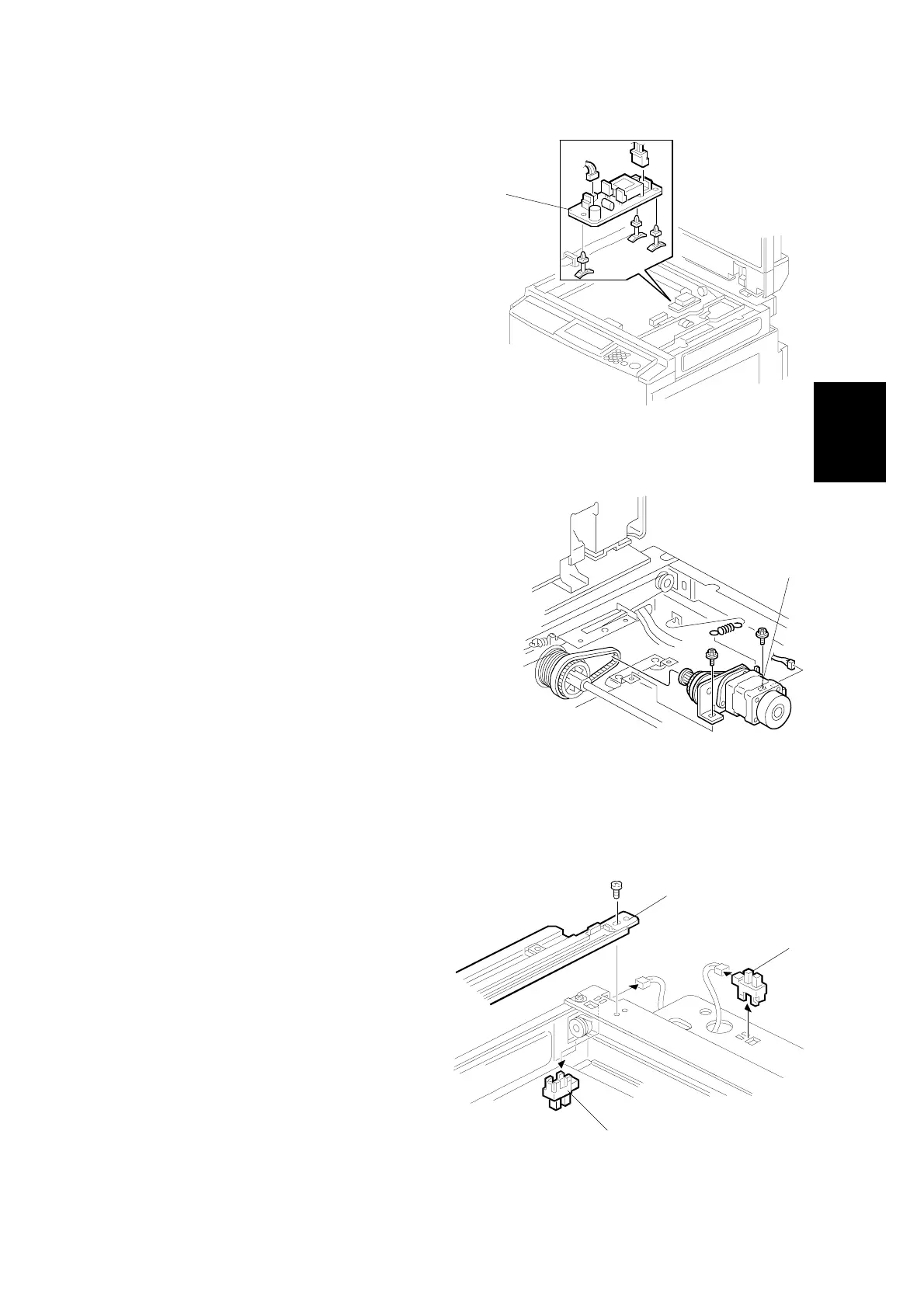

3.3.3 SCANNER H.P. SENSOR / PLATEN COVER SENSOR
• Left scale, Upper scale, Exposure glass (☛ 3.3.1)
• Operation panel (☛ 3.2.1)
• Rear upper cover (☛ 3.2.2)
[A]: Platen cover sensor (" x 1)
[B]: Left stay (! x 1)
[C]: Scanner H.P. sensor (" x 1)
C238R041.WMF
C238R042.WMF
C238R043.WMF
[C]
[D]
[A]
[B]
[C]
