Ricoh P C301W Field Service Manual

5.System Maintenance
169
Calibrating the LCD (MF Model Only)
You can calibrate the touch screen with the LCD Coordinate Maintenance Mode.
For further information, contact the supervisor in your branch office.
1.Set operation panel
coordinate
Set the calibration coordinates for the touch panel.
2.Check operation panel
coordinate
Check the position of the coordinates for the touch panel with the 5
marks on the screen.
• Procedure

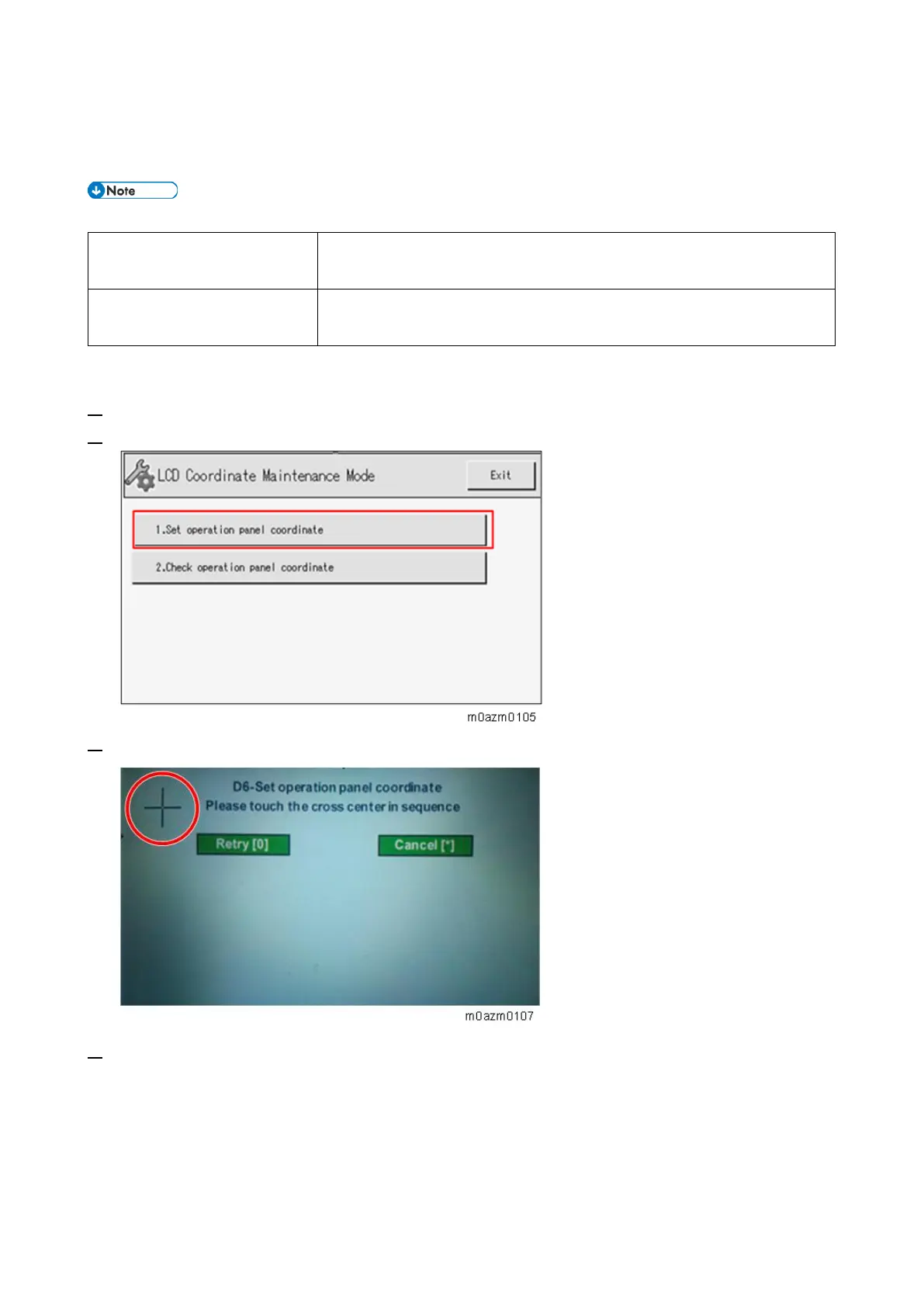

1. Enter the LCD Coordinate Maintenance Mode.
2. Press [1.Set operation panel coordinate] (or press the [1] key on the number keys).
3. Tap the center of the black (+) mark on the top left portion of the screen.
4. The black (+) marks appear in the following order:
- Top right
- Bottom right
- Bottom left
- Center
Tap all the (+) marks in this order.

Ricoh P C301W Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	9.4 s
Time to first page (color, normal)	9.8 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	256 MB
Built-in processor	-
Sound pressure level (printing)	- dB
Cables included	AC
Included cartridge capacity (black)	1000 pages
USB 2.0 ports quantity	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
Duplex media weight	60 - 90 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	751 sheets
Auto document feeder (ADF) input capacity	1 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (printing)	1300 W
Energy Star Typical Electricity Consumption (TEC)	0.3 kWh/week
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	65000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Product color	Black, White
Market positioning	Home & office
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	334 mm
Weight	25000 g
