Wiring 3-3
Power Wiring
The SMC-Flex can be connected to a Line-controlled motor as shown
in Figure 3.3. Current ratings for the motor must be in the range of
1 A…480 A.

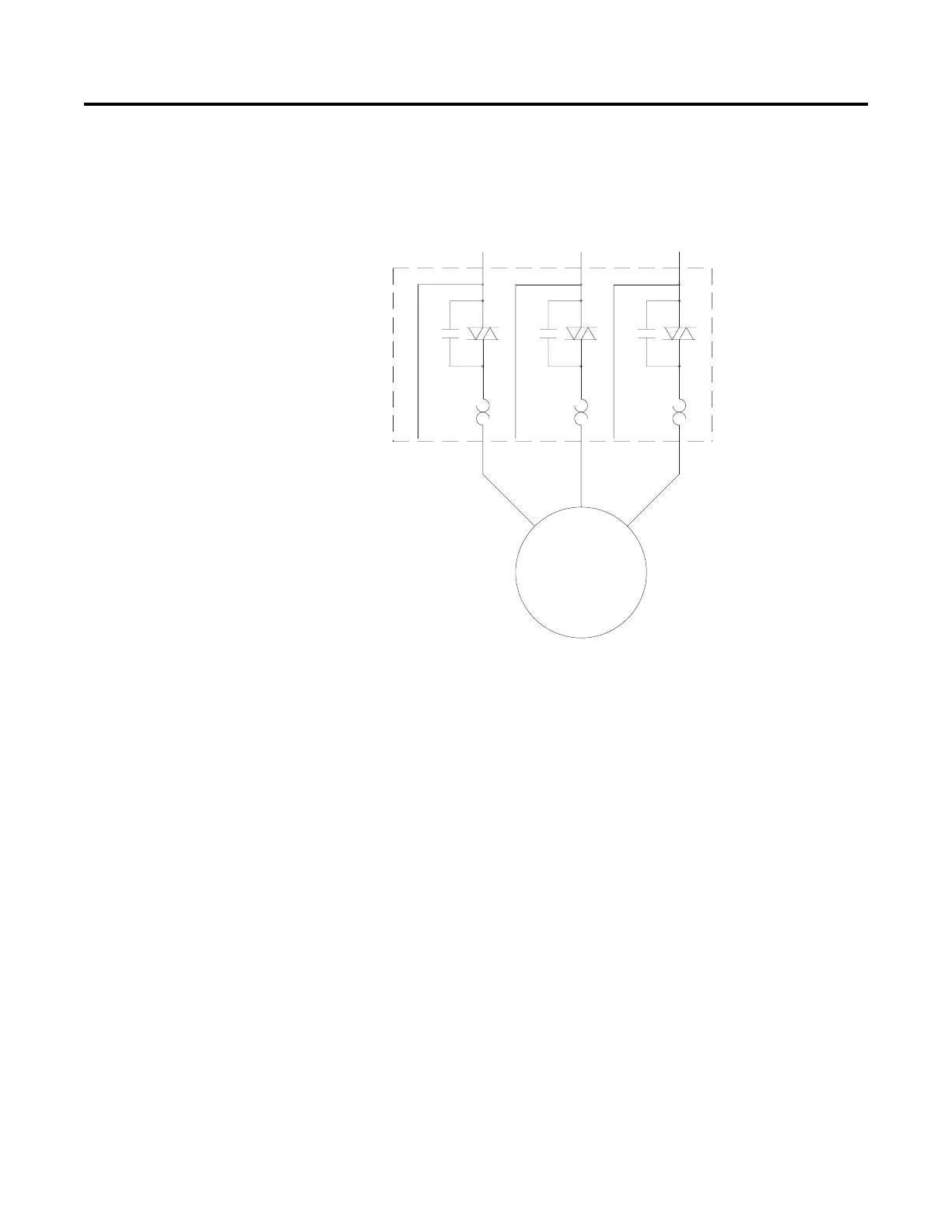

Figure 3.3 Line Power Wiring diagram
The SMC-Flex can be connected to a Wye-Delta motor in an inside-
the-Delta wiring configuration as shown in Figure 3.4. Current ratings
for the motor must be in the range of 1.8…831 A.
1
/
L
1
3/
L
2
5/
L
3
2
/
T
1
4
/
T
2
6/
T
3
12
/
T
6
8/
T
4
1
0/
T
5
M
