Chapter 6
Metering
Overview While the SMC-Flex controller operates your motor, it also monitors
several different parameters, providing a full function metering
①
package.

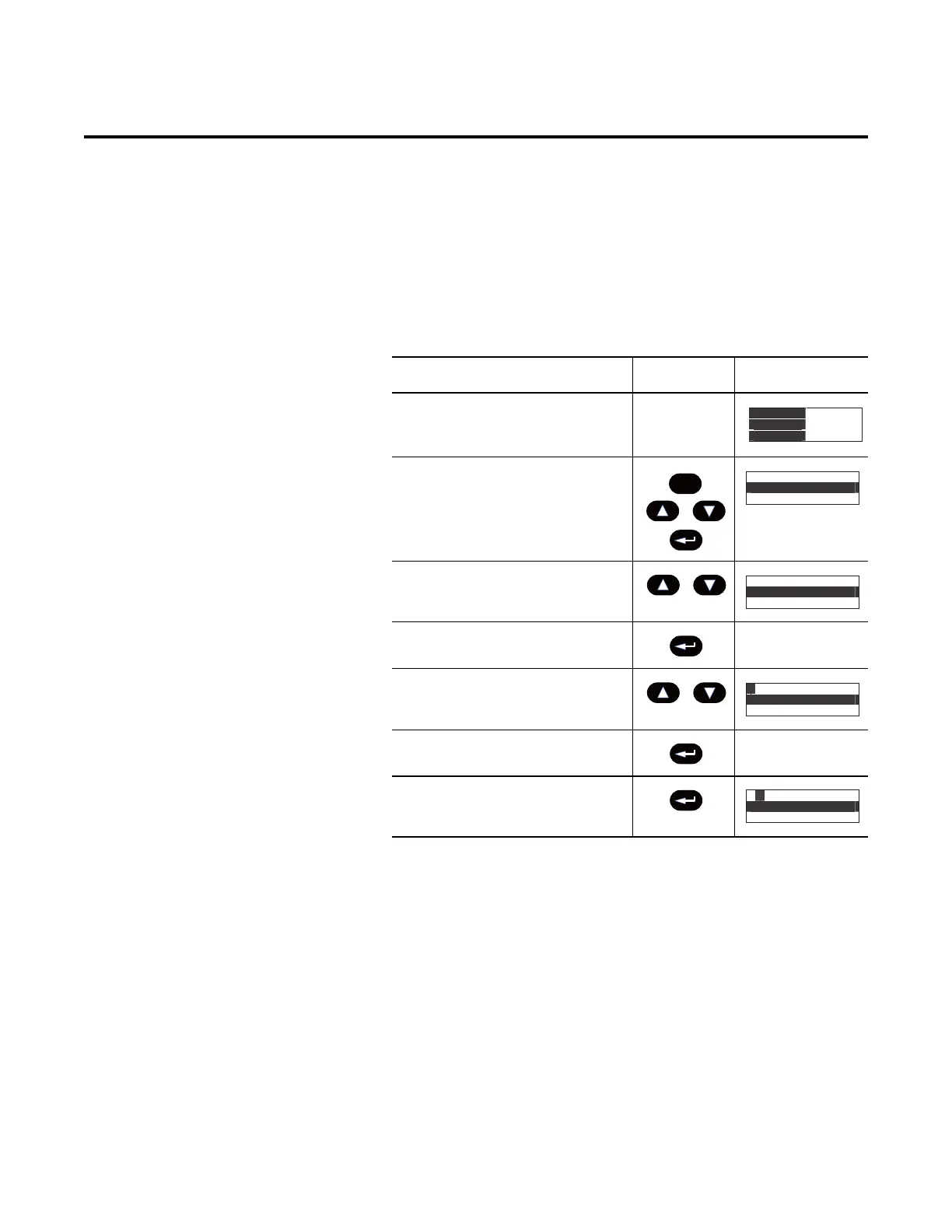

Viewing Metering Data To access the metering information, follow the procedure below.
➀
Refer to Metering on page 1-19 or Figure 4.2 on page 4-3 for details on the metering functions.
Description Action Display
——
1. Press any of the following keys to
access the Main Menu.
2. Scroll with the Up/Down keys until
the Parameter option is shown.
3. Press the Enter key to select the
Parameter option.
—
4. Scroll with the Up/Down keys until
the Monitoring option is displayed.
5. Press the Enter key to access the
Monitoring group.
—
6. Press the Enter key to access the
Metering group.
##.# Amps
### Volt
## %MTU
Esc
Main Menu
Parameter
Memory Storage
Main Menu
Parameter
Memory Storage
GP: File
Monitoring
Set Up
F
F P: Group
Metering
G
