Specifications and Site Requirements
Electrical Specifications
136 MagneMotion
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

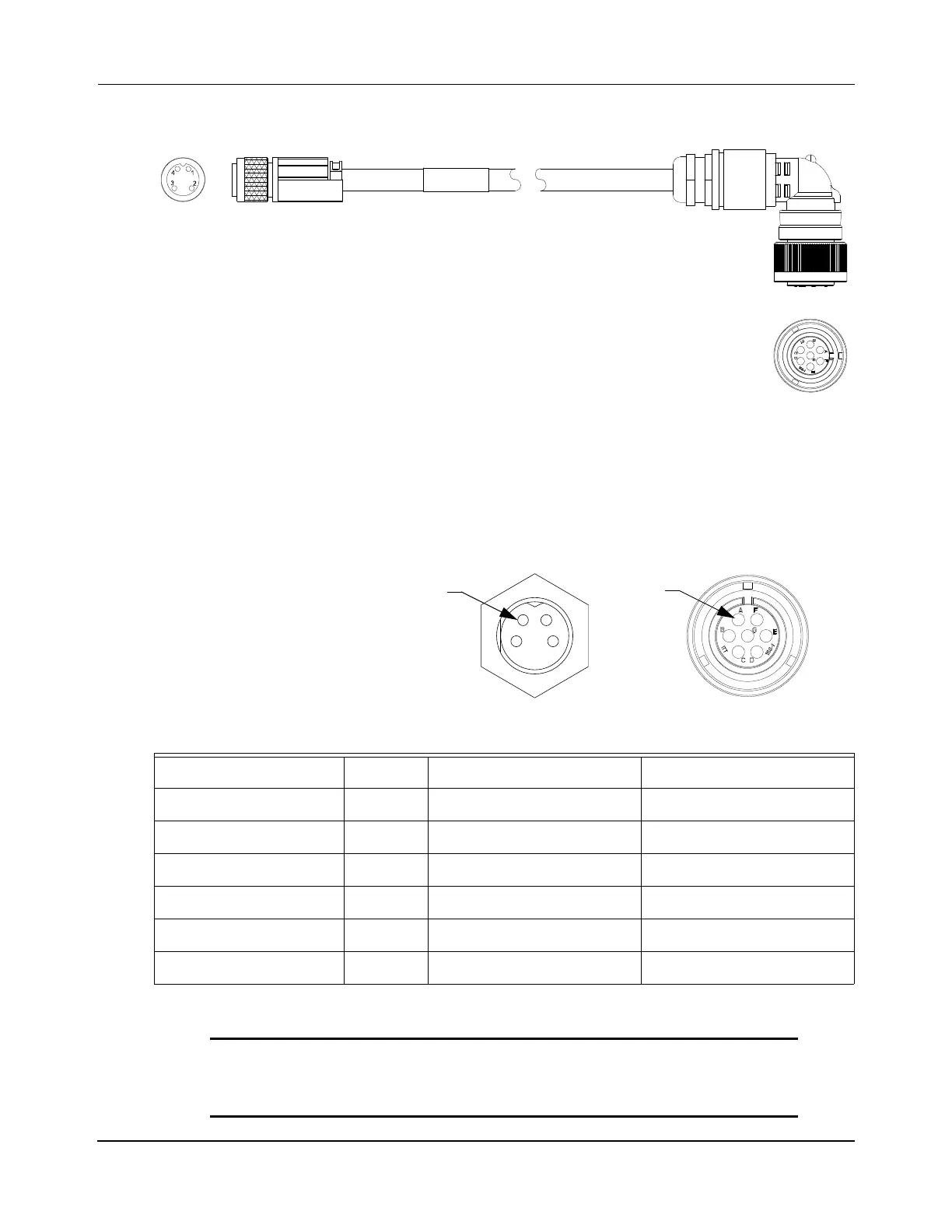

Figure 4-11: 1/2 m QSMC to Stator Drive Cable
Table 4-6: 1/2 m QSMC to Stator Drive Cable Pinouts
Wire
Gauge
Motor Controller
MINI-CON-X, 4-Pin,
Male
Motor
3-Pt Reverse Bayonet,
16S-1, Female
Stator Block, Phase A 16 AWG 3 A
Stator Block, Phase B 16 AWG 2 B
Stator Block, Phase C 16 AWG 1 C
— —— D
— —— E
— —— F
GND 16 AWG 4 G
NOTICE Modifications to the MMI motor to motor controller cables,
or using custom cables, violates the UL conditions of accept-
ability.
Motor
Motor Controller
700-1550-xx
1
23
4
1
A
