Specifications and Site Requirements
Electrical Specifications
QuickStick HT User Manual 151
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

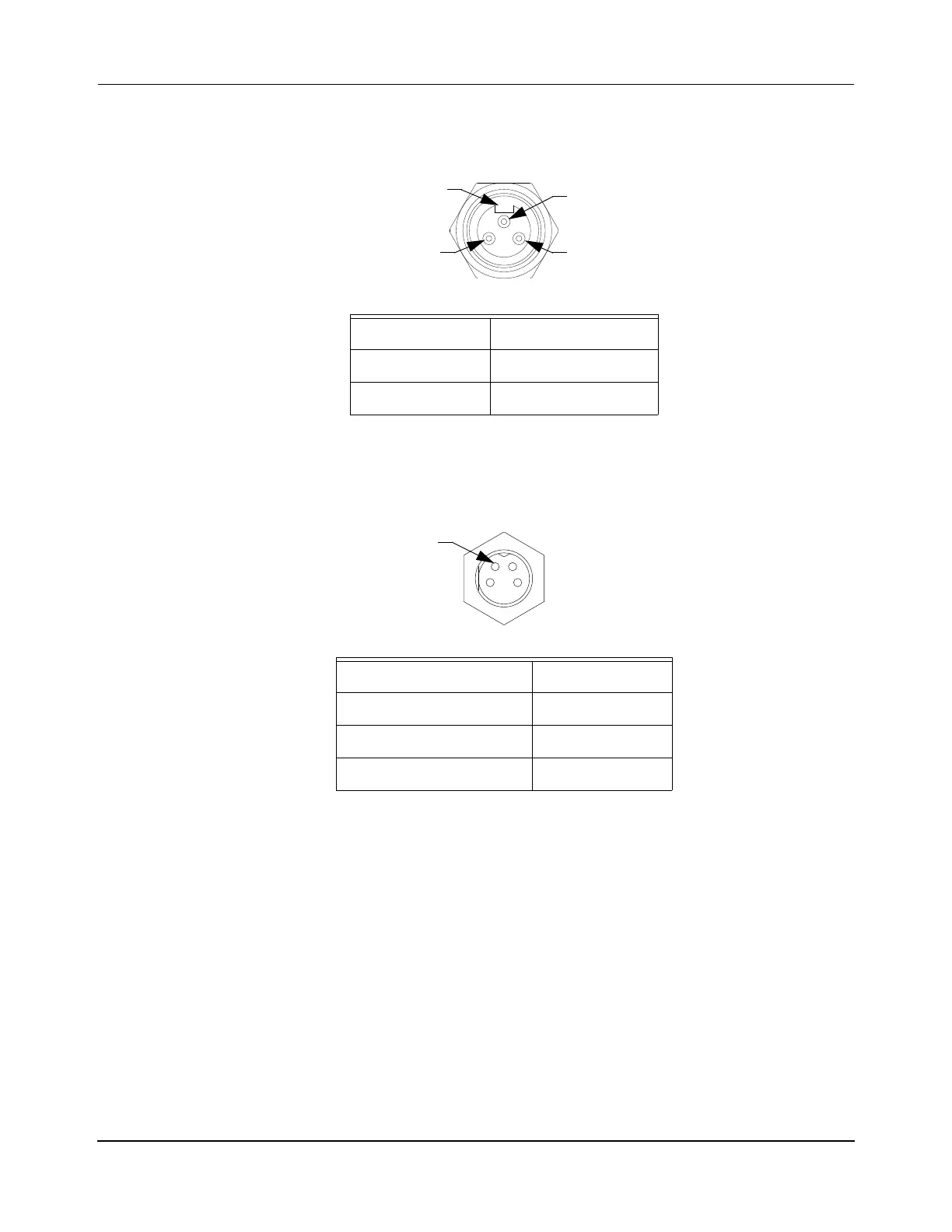

Table 4-28: QSMC-2 Motor Controller HVDC Power Connector Pinout
Powerfast, 3-Pin, Male
GND 1
PWR RTN 2
PWR HI 3
Table 4-29: QSMC-2 Motor Controller Stator Drive Connector Pinout
Mini-Con-X, 4-Pin, Female
Stator Block, Phase C 1
Stator Block, Phase B 2
Stator Block, Phase A 3
GND 4
2
1
3
Key
1
23
4
1
