Specifications and Site Requirements
Electrical Specifications
QuickStick HT User Manual 149
Rockwell Automation Publication MMI-UM007F-EN-P - September 2020

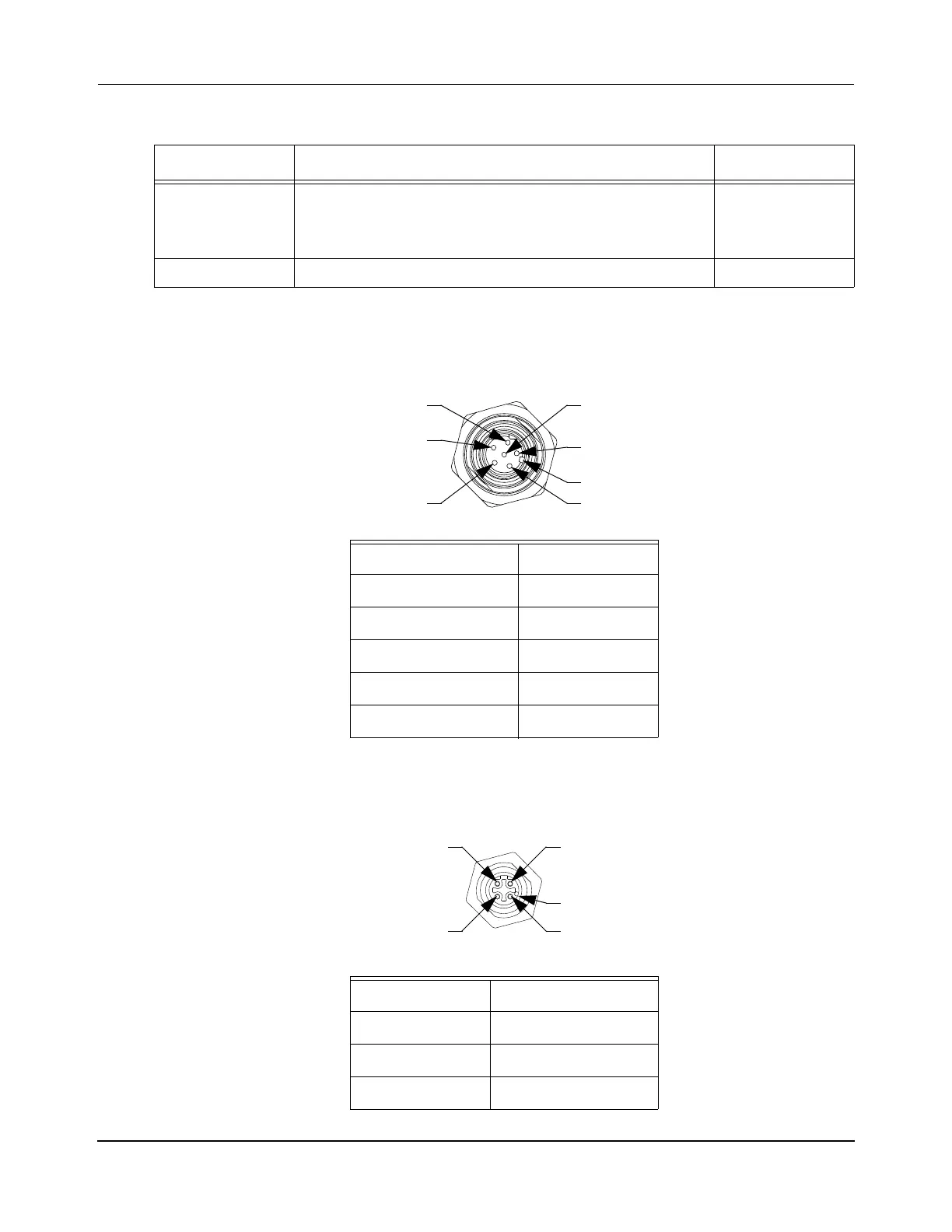

Table 4-23: QSMC-2 Motor Controller Indicators
Label Description Indicator Type
STATUS GREEN, Steady – Control power is present, not operating.
GREEN, Flashing – Control is OK.
RED, Flashing – Fault condition.
Red/Green LED
POWER ON – Indicates that Drive Power is on (HVDC > 20V DC). Red LED
Table 4-24: QSMC-2 Motor Controller Stator Sense Connector Pinout
M12 Eurofast, FKFD 4.6, Female
+V 1
GND 2
RxD- 3
RxD+ 4
TxD+ 5
TxD- 6
Table 4-25: QSMC-2 Motor Controller Ethernet Pinout
M12 Eurofast, FKFDD, Female
TD+ 1
RD+ 2
TD- 3
RD- 4
5
6
3
Key
1
2
4
4
1 2
3
Key
