13
Panel Descriptions
11.
[Write] button
Saves a customized tone as a User tone (p. 42).
12.
[Power] switch
Turns the power on/off (p. 18).
13.
[Volume] knob
Adjusts the volume (p. 19).
14.
Tone buttons: [Tone 1]–[Tone 4]
These buttons have the same function as 5.
You can use these buttons to select tones even when the keyboard
lid is in the Classic Position (p. 17).
15.
AC In
Connect the included power cord here (p. 18).
16.
Pedal connector
Connect the pedal cord here.
17.
USB for Update connector
This is used when updating the V-Piano Grand’s internal operating
program.
Do not connect anything to this connector during normal use.
18.
Output B connectors: L/3, R/4
These are sub-output jacks for audio signals. The signal to be output
from these jacks can be selected from a menu (p. 59).
You can use these jacks in conjunction with the Output A jacks to
output the V-Piano Grand’s sound as four-channel output.
The phone jack and XLR connectors output the same signal.
19.
Output A connectors: L/1, R/2
These are the main audio signal output jacks.
The phone jacks and XLR connectors output the same signal.
20.
Phones jack
Connect headphones here (p. 22).
Even when headphones are connected, sound will still be output
from the Output jack.
21.
Input jacks (RCA phono type) (L/Mono, R)
You can connect an audio device or another electronic musical
instrument to these jacks, and hear its sound through the V-Piano
Grand’s speakers (p. 73).
The input volume is adjusted using “GM2/WAV Volume” (p. 57).
22.
MIDI In, Out connectors
Connect these to external MIDI devices to transmit or receive MIDI
messages.
Jack Panel 1 (Bottom Left Panel)

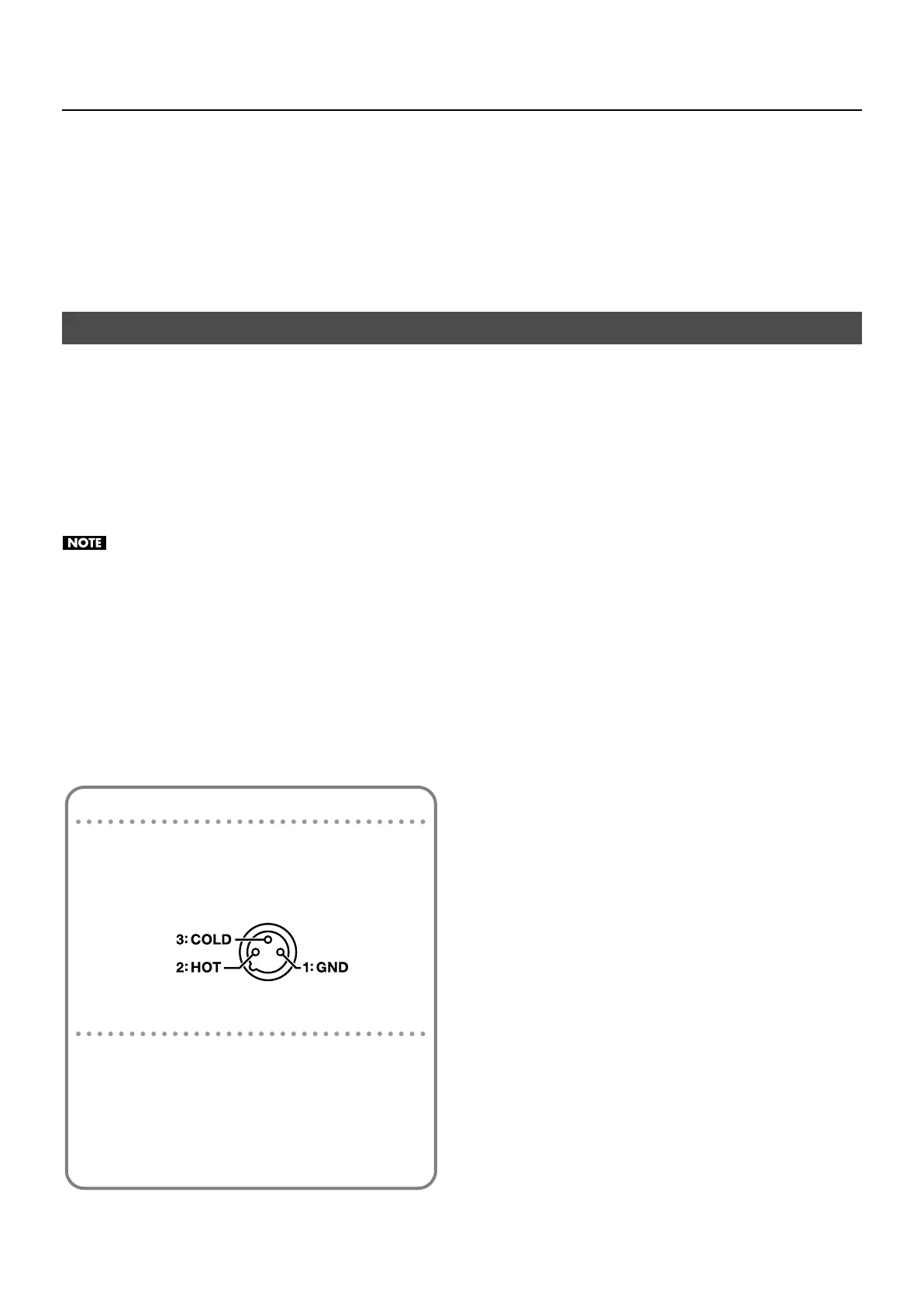

About the XLR Output connector
922
This instrument is equipped with balanced (XLR) type jacks.
Wiring diagrams for these jacks are shown below.
Make connections after first checking the wiring diagrams of
other equipment you intend to connect.
fig.XLRTRSJack.eps
About the phone (1/4”) Output connectors
If you connect a phone plug to only the L/1 (and L/3) phone
jacks, they will output a mono signal that mixes-in the R/2 (and
R/4) signals, allowing you to use these as mono outputs.
* The XLR connectors will output a stereo signal.
* The V-Piano Grand is designed to be used with stereo output.
The sound quality and tonal character will be affected if you
use monaural output.
