128

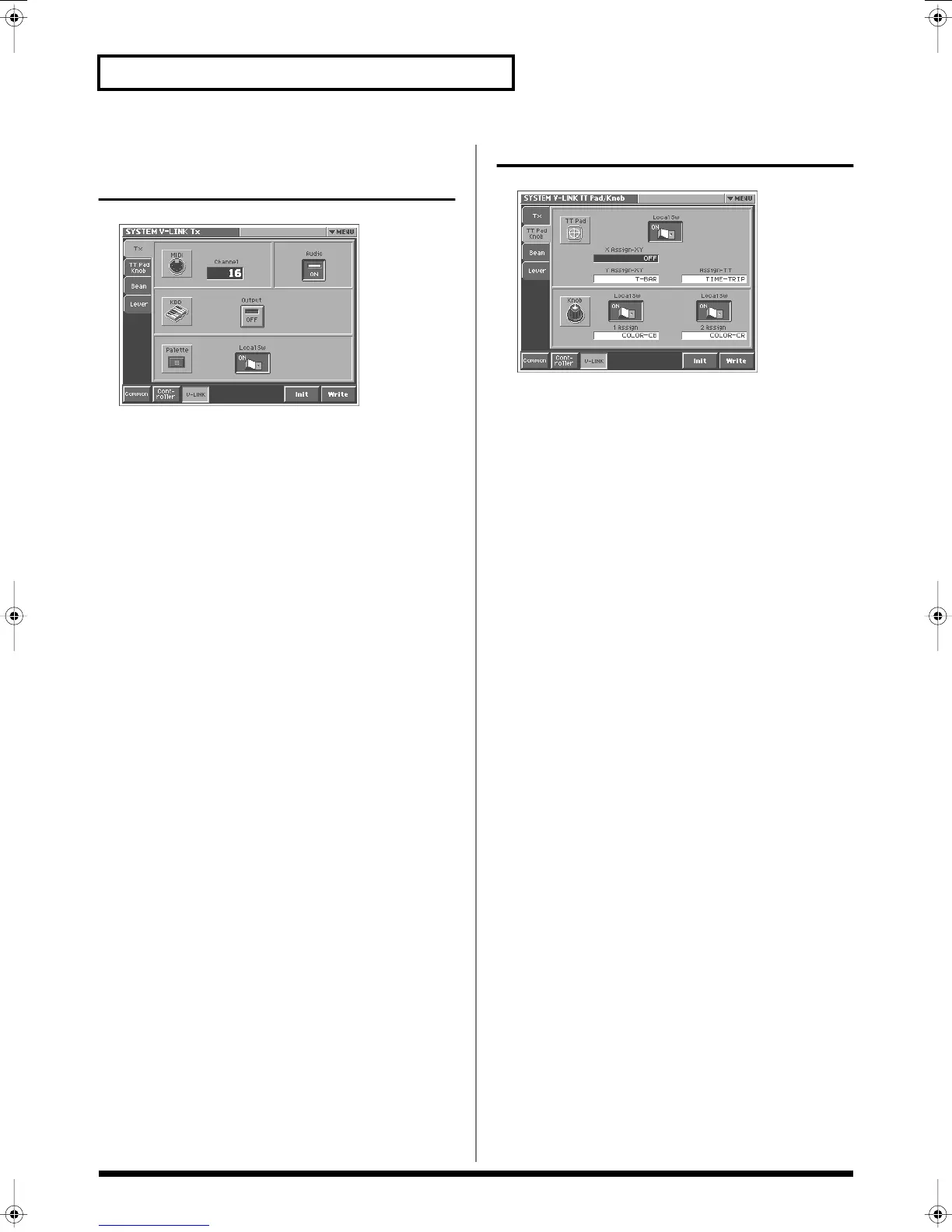

Settings Common to All Modes (System Mode)
V-LINK Settings (V-LINK)
Tx
fig.05-10_50
MIDI Channel (V-LINK MIDI Channel)
Specifies the channel used to transmit MIDI messages for V-LINK
control.
Value:
1–16
Audio (V-LINK Audio Switch)
Specifies whether sound from the externally connected video device
will be played (ON) or not played (OFF).
Value:
OFF, ON
KBD Output
(V-LINK Keyboard Output Fade Switch)
Specifies whether the video output from the video device will be
stopped (ON) or will not be stopped (OFF) when you are not
holding down a key.
Value:
OFF, ON
Palette Local Sw
(V-LINK Patch Palette Local Switch)
Specify whether you will press PATCH PALETTE NUMBER [1]–[8]
in V-LINK mode to switch patches (ON) or not (OFF)
Value:
OFF, ON
TT Pad/Knob
fig.05-11_50
TT Pad Local Sw
(V-LINK Time Trip Pad Local Switch)
Specify whether the Time Trip pad and the internal sound generator
will be disconnected in V-LINK mode (OFF) or not disconnected
(ON).
Value:
OFF, ON
X Assign-XY (V-LINK X Assign-XY)
Specify the V-LINK function that will be controlled when you
operate the Time Trip pad in the X (horizontal) direction in XY
mode.
Value
OFF:
The time trip pad will not be used.
PLAYBACK-SPEED:
Playback speed
DISSOLVE-TIME:
Dissolve time (time over which the image
switches)
AUDIO LEVEL:
Volume during audio playback
COLOR-CB:
Color Cb (color-difference signal)
COLOR-CR:
Color Cr (color-difference signal)
BRIGHTNESS:
Brightness
VFX1:
Visual effects 1
VFX2:
Visual effects 2
VFX3:
Visual effects 3
VFX4:
Visual effects 4
OUTPUT-FADE:
Output fade
T-BAR:
T bar
Y Assign-XY (Link Y Assign-XY)
Specify the V-LINK function that will be controlled when you
operate the Time Trip pad in the Y (vertical) direction in XY mode.
Value
OFF:
The time trip pad will not be used.
PLAYBACK-SPEED:
Playback speed
DISSOLVE-TIME:
Dissolve time (time over which the image
switches)
AUDIO LEVEL:
Volume during audio playback
COLOR-CB:
Color Cb (color-difference signal)
COLOR-CR:
Color Cr (color-difference signal)
BRIGHTNESS:
Brightness
VFX1:
Visual effects 1
VFX2:
Visual effects 2
Reference_e.book 128 ページ ２００５年３月１０日 木曜日 午後５時６分
