2.ProductSpecicationsandDescription
2.2.5.4.Pick-Upunit
Whenpickuptakesplace,thepickuprollertransportsthepaper.TheKNOCK-UPmovesupbytheelevatingmotorand
thepickuprollercomesintocontactwiththepaper.Theforwardrollerandtheretardrollerservetomakesurethata
singlesheetofpaperismovedtothepaperpath,andthepaperismovedasfarastheregistrationrollerbythework
oftheverticalpathroller.

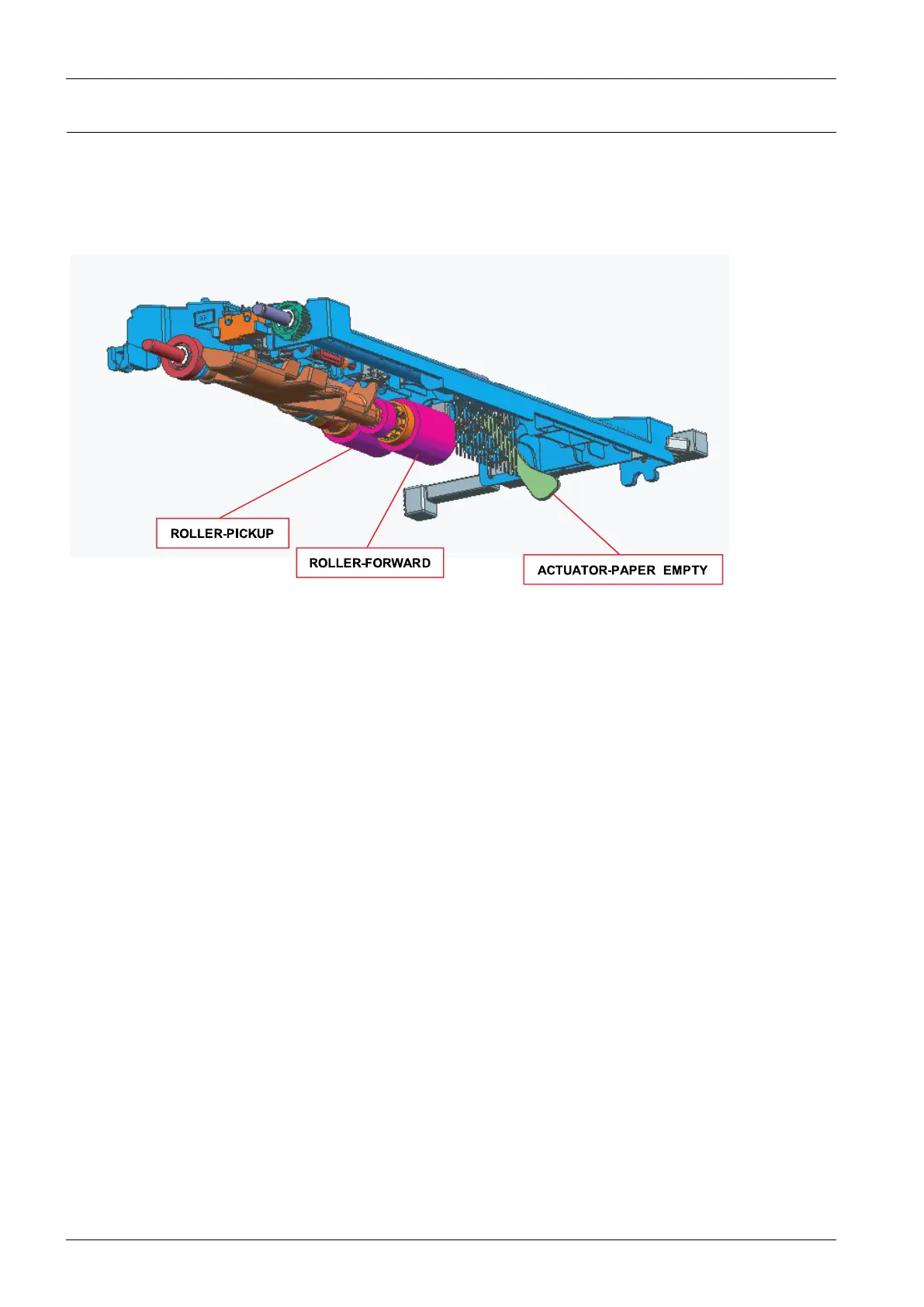

ROLLE R-P ICKUP
ROLLE R-FORWAR D
ACTUATOR-P AP E R EMP TY
