3.
Disassembly
and
Reassembly

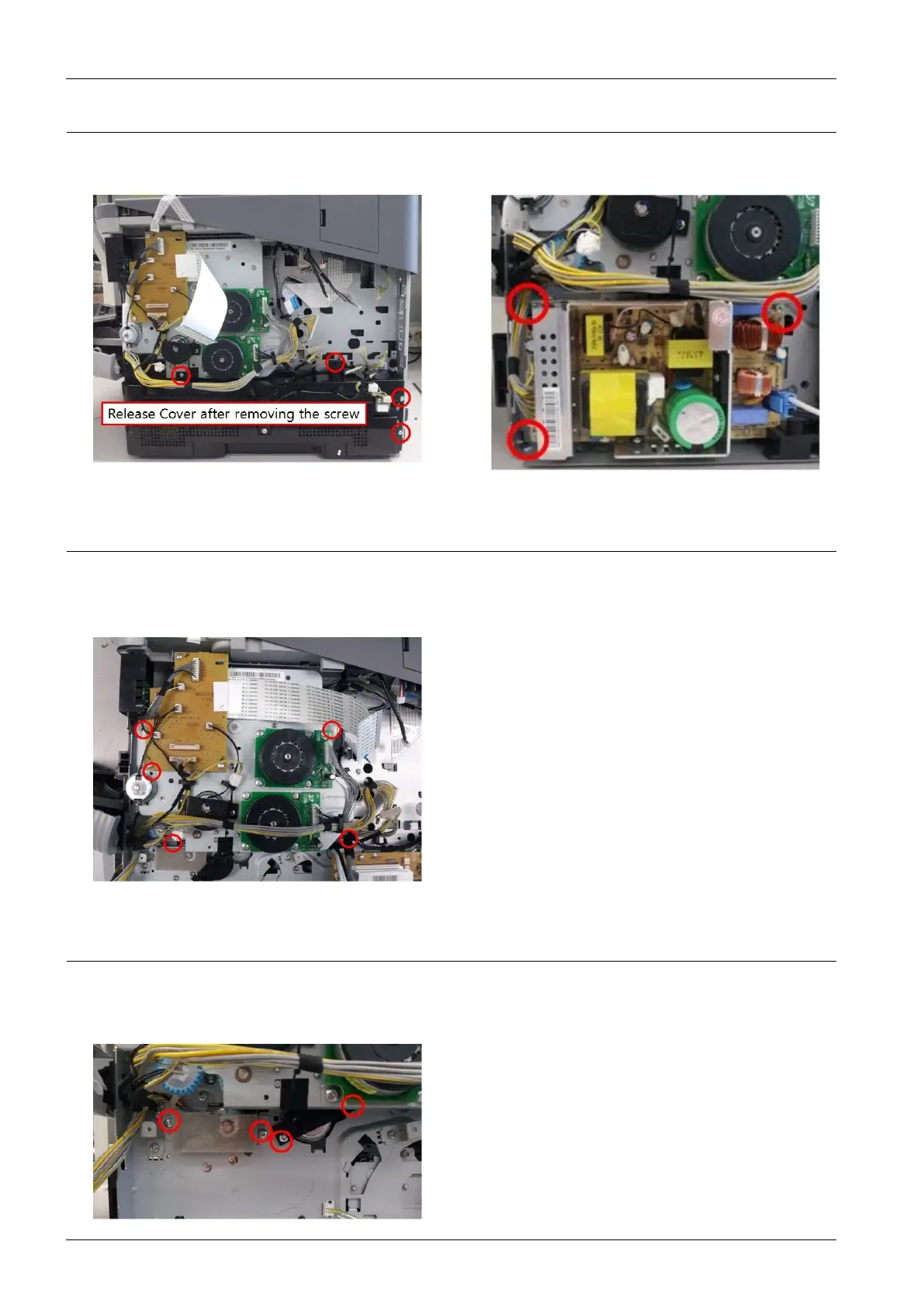

3.4.13.4.
Cover-SMPS
and
SMPS
1.
Remove
4
screw
securing
Cover-SMPS.
2.
Remove
3
screw
securing
SMPS.
3.4.13.5.
Drive
Assy
1.
Don’t
completely
release
Drive
after
removing
the
screw
.
Make
a
only
space
for
releasing
Clutch.
3.4.13.6.
Pick
up
and
Duplex
Clutch
1.
Release
the
cover
after
removing
the
screws
for
each
cover
3-18
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
89
