Samsung ML-501 Series User Manual

2.ProductSpecicationsandDescription
2.2.9.3.ExitDriveUnit

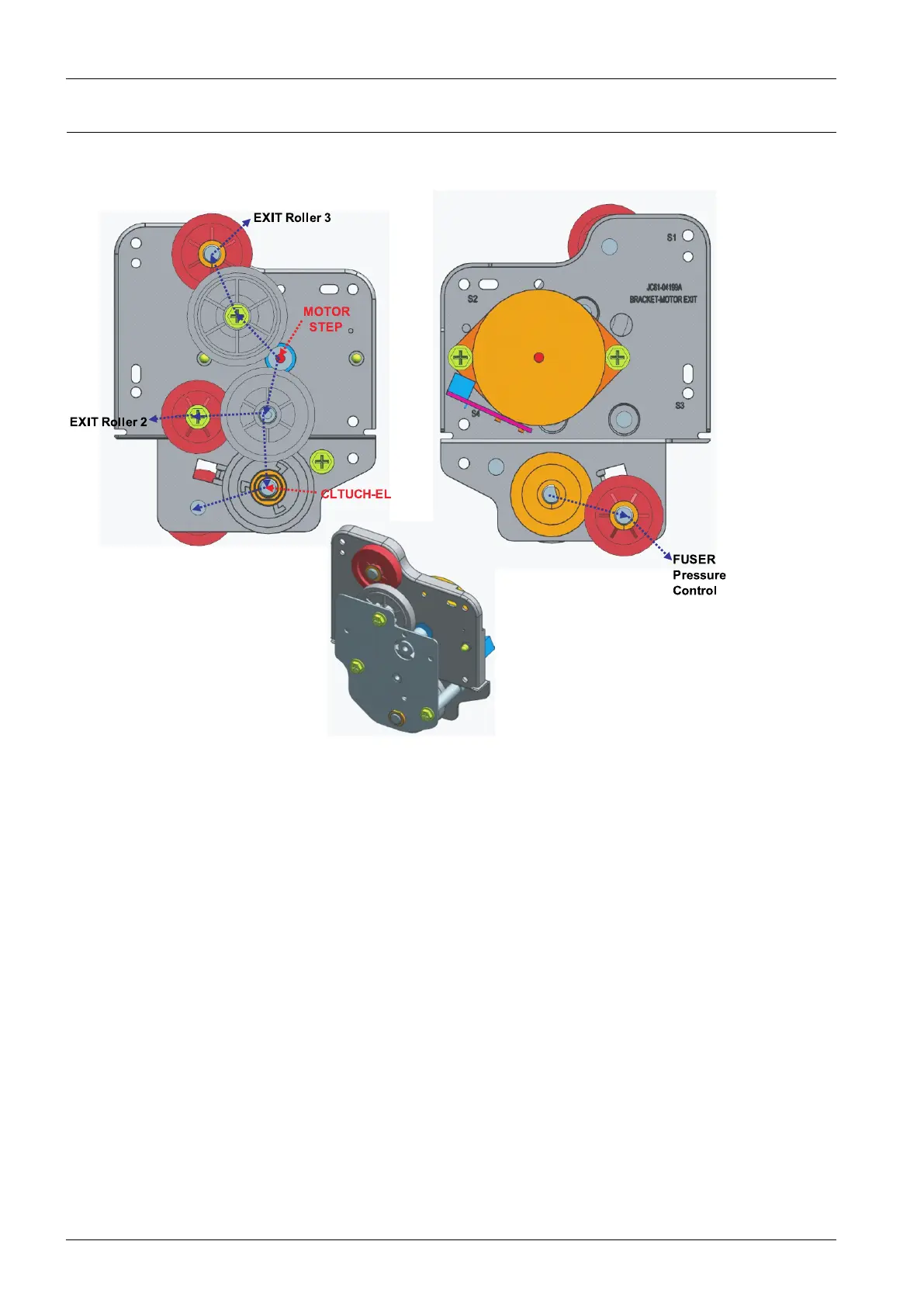

ThefollowingisadiagramoftheExitdrive.
MOTOR
S TEP
EXIT Ro lle r 3
EXIT Ro lle r 2
CLTUCH-EL
F
US ER
P re s s u re
Co n tro l
•Information
-PartCode:JC93-00349A[DRIVEEXIT]
PowerTrain
Itisdrivenbystepmotor.
•Stepmotor→Gear→Gear→ExitRoller3driving
•Stepmotor→Gear→Gear→ExitRoller2driving
•Stepmotor→Gear→E-Clutch→Gear→Gear→Fuserpressuredriving
2-35Copyright©1995-2016SAMSUNG.Allrightsreserved.
