3.
Disassembly
and
Reassembly

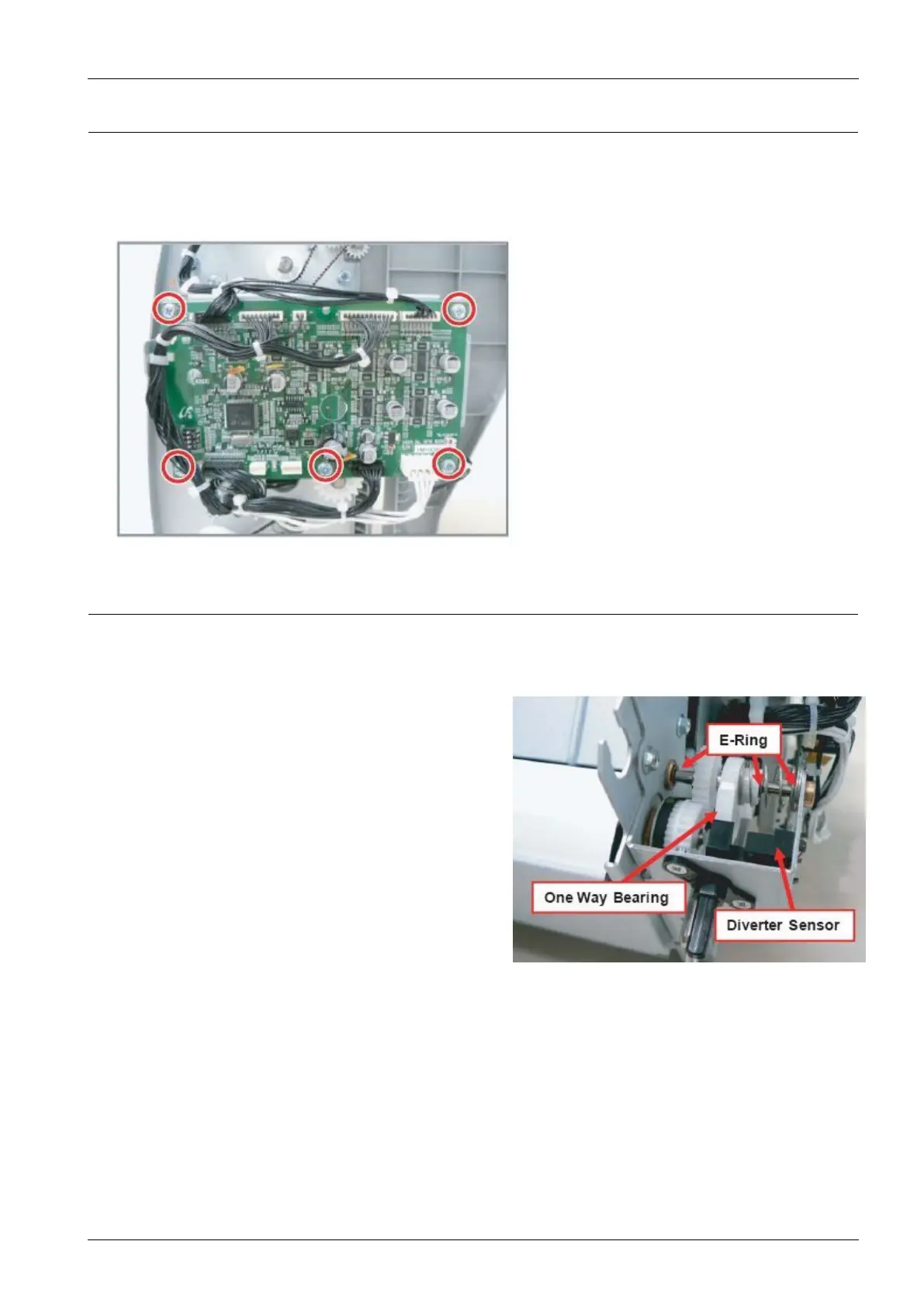

3.5.5.
Finisher
main
board
1.
Remove
the
nisher
rear
cover
.
2.
Remove
the
nisher
main
board
after
removing
5
screws
and
all
connectors.
3.5.6.
Diverter
Assy
1.
Remove
the
nisher
rear
cover
.
2.
Remove
the
Diverter
Sensor
after
unplugging
the
connector
.
3.
Remove
the
One-W
ay
Bearing
after
removing
3
E-rings
and
spring.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-25
