3.
Disassembly
and
Reassembly

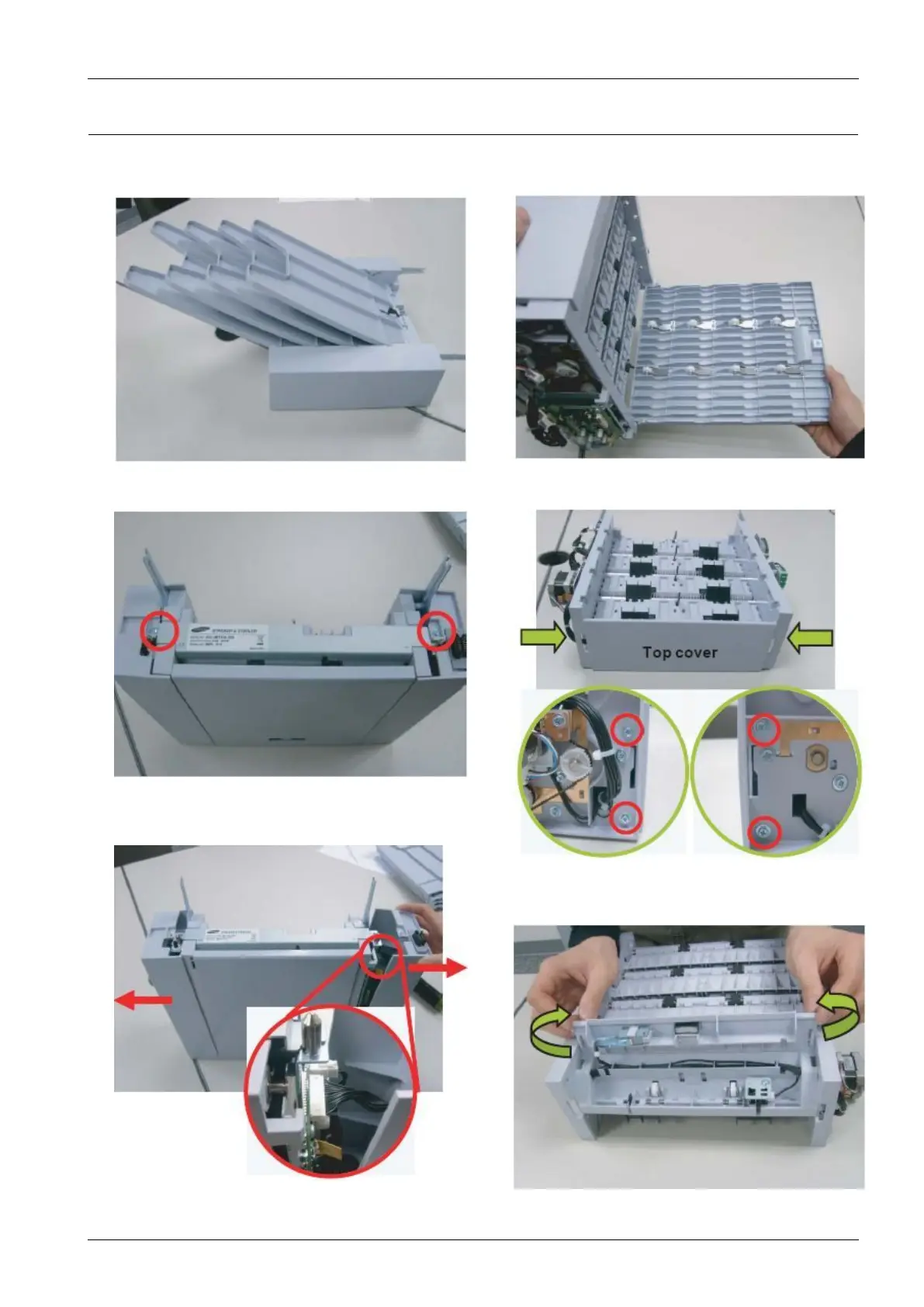

3.6.
Mail
box
1.
Remove
the
Stacker
tray
(4
EA).
2.
Remove
2
screws
to
separate
front/rear
cover
.
3.
Remove
the
front
cover
.
Separate
the
rear
cover
after
unplugging
the
connector
.
4.
Remove
the
jam
cover
.
5.
Remove
the
top
cover
after
remove
4
screws.
6.
Open
the
Assy
Shield
T
OP
.
If
necessary
,
remove
switch
or
sensor
.
