2.ProductSpecicationsandDescription

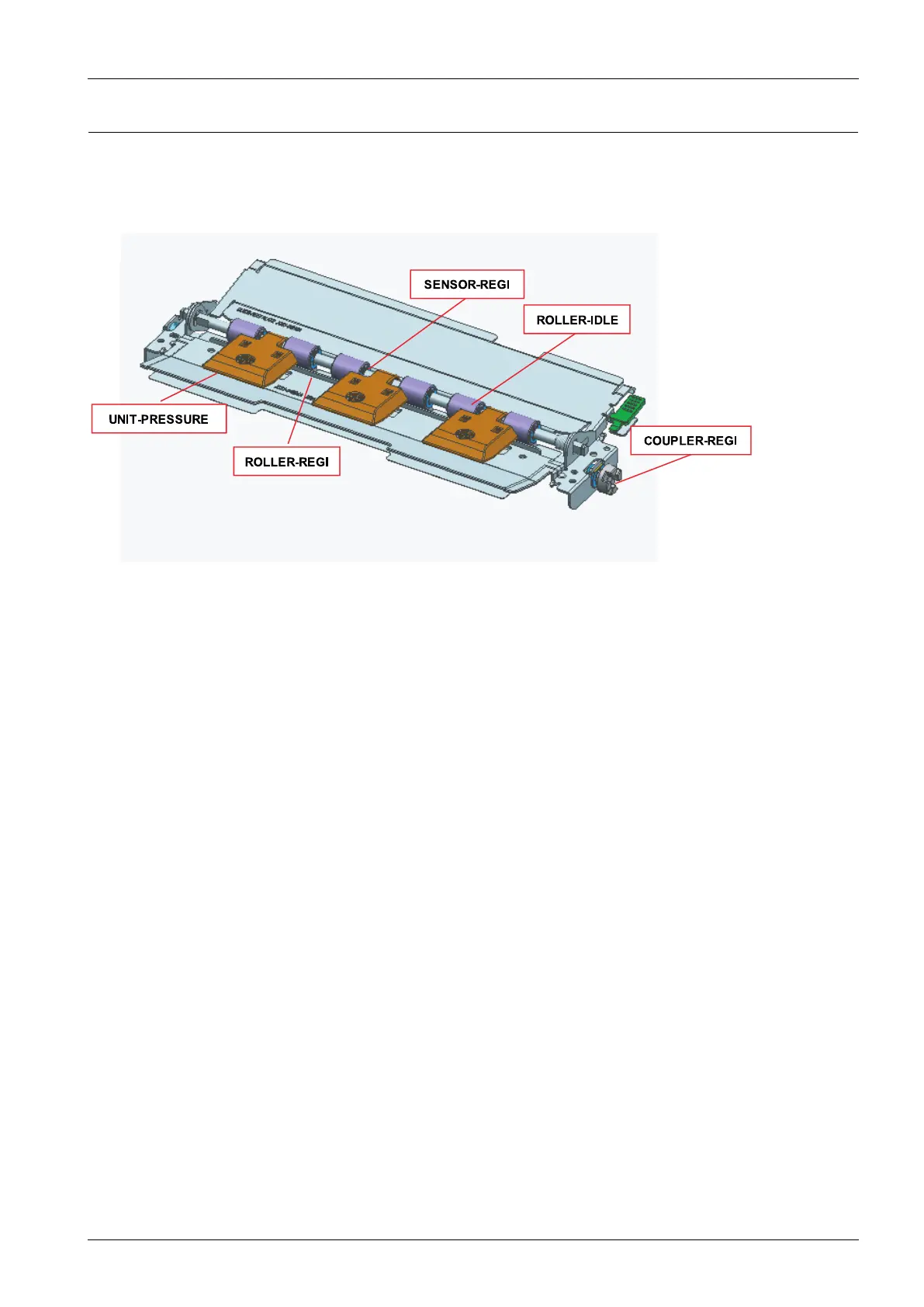

2.2.5.5.RegistrationUnit
Theregistrationrollerisdrivenbythemainmotor.Theregistrationclutchislocatedbetweentheregistrationrollerand
themainmotor,andcontrolstheregistrationrollertomovethepaperandanimageonthedrumatthepredetermined
registrationpoint.
ROLLE R-RE GI
ROLLE R-IDLE
UNIT-P RE S S URE
COUP LE R-RE GI
S ENS OR-RE GI
RegistrationVarience
•TopMargin
-Lessthan1.0mm(Simplex,DuplexShort)
-Lessthan2.0mm(DuplexLong)
•SideMargin
-Lessthan1.5mm(Simplex,DuplexShort)
-Lessthan2.5mm(DuplexLong)
•DogEar ,Trees,Nicks,Wrinkling
-PlainPaper:1/5,000
-SpecialMedia:1/3,000
•TopSkew(HorizontalSkew)@180mm
-Lessthan1.0mm(Simplex,DuplexShort)
-Lessthan1.5mm(DuplexLongandSCF)
•SideSkew(VerticalSkew)@260mm
-Lessthan1.5mm(Simplex,DuplexShort)
-Lessthan2.0mm(DuplexLongandSCF)
