3.
Disassembly
and
Reassembly
3.4.9.
Exit
Unit
1.
Remove
all
covers
and
fuser
unit.
2.
Remove
the
bracket
after
removing
2
screws.
NOTE
When
reassembling
the
exit
unit,
rst
tighten
these
screws
to
secure
the
frame
and
bracket.

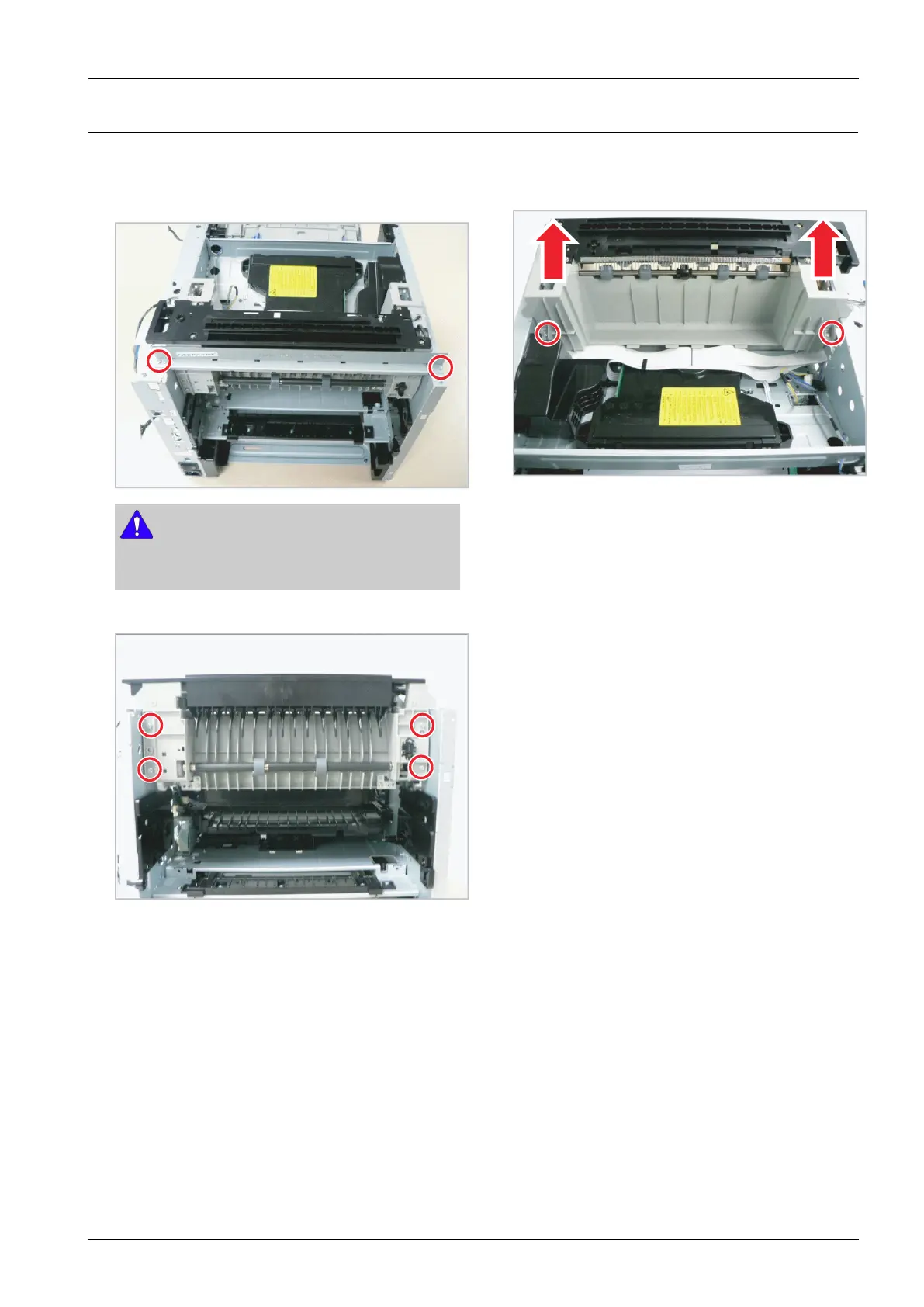

3.
Remove
the
4
screws
from
the
rear
.
4.
Remove
2
screws.
Release
the
Exit
unit
after
pull
it
to
the
rear
slightly
.
Copyright©
1995-2016
SAMSUNG.
All
rights
reserved.
3-13
