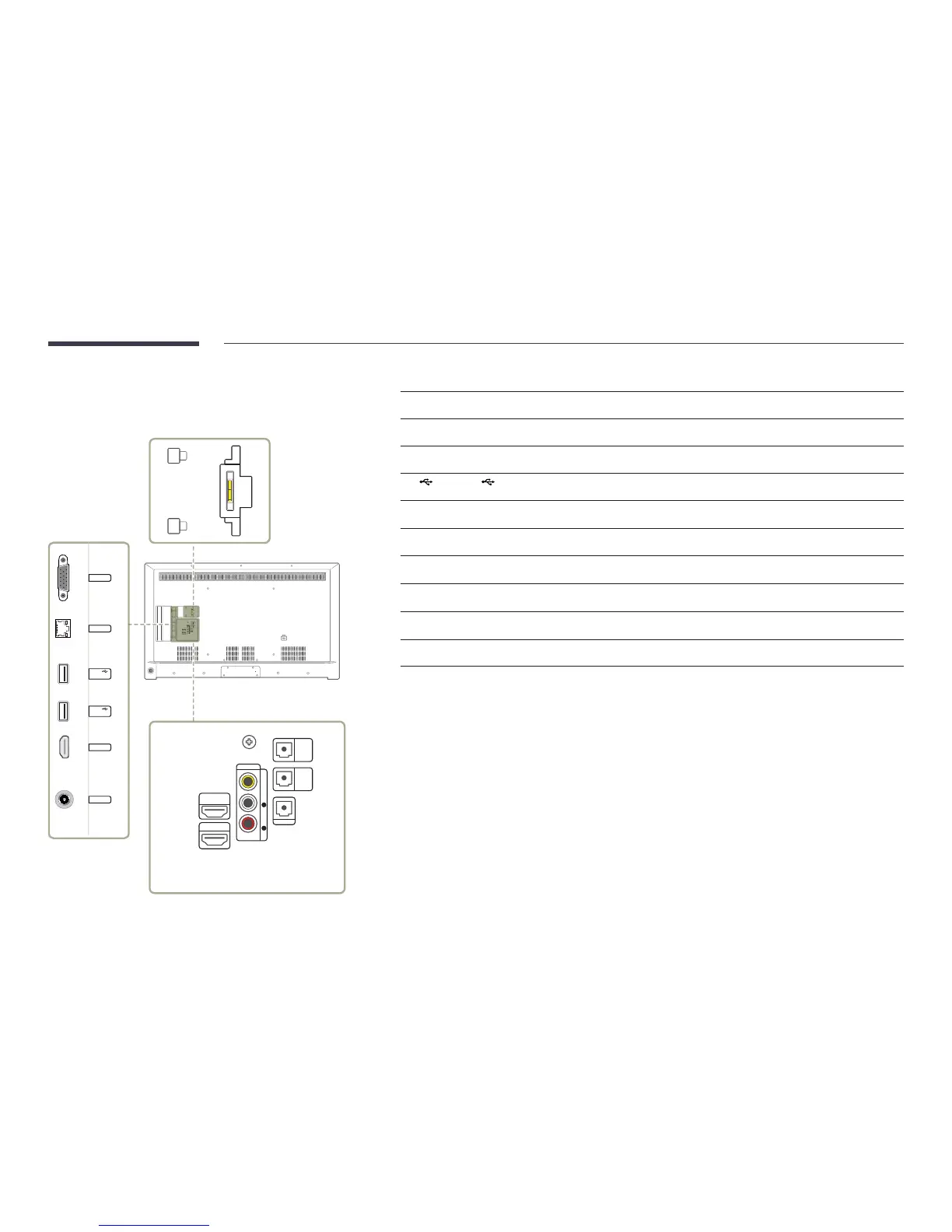

Reverse Side
―
The colour and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
PC IN
LAN
USB
(0.5A)
USB
(1.0A)
HDMI 1
ANT IN
HDMI 2
(ARC)
HDMI 3
AV IN
PC
AUDIO
IN
AUDIO
OUT
RS232C IN
VIDEO
AUDIO
RL
PC IN
LAN
USB
(0.5A)
HDMI 1
ANT IN
USB
(1.0A)
HDMI 2
(ARC)
HDMI 3
COMMON INTERFACE
AV IN
PC
AUDIO
IN
AUDIO
OUT
RS232C IN
VIDEO
AUDIO
RL
Port Description
COMMON INTERFACE
Connect to a CI card.
PC IN
Connects to a source device using a D-SUB cable.
LAN
Connects to MDC using a LAN cable.
USB (0.5A), USB (1.0A)
Connect to a USB memory device.
HDMI 1, HDMI 2 (ARC), HDMI 3
Connects to a source device using an HDMI cable.
ANT IN
Connect to an antenna cable.
AV IN VIDEO / L-AUDIO-R
Connect to an external device using a video or Audio cable.
PC AUDIO IN
Receives sound from a PC via an audio cable.
AUDIO OUT
Connects to the audio of a source device.
RS232C IN
Connects to MDC using an RS232C adapter.
