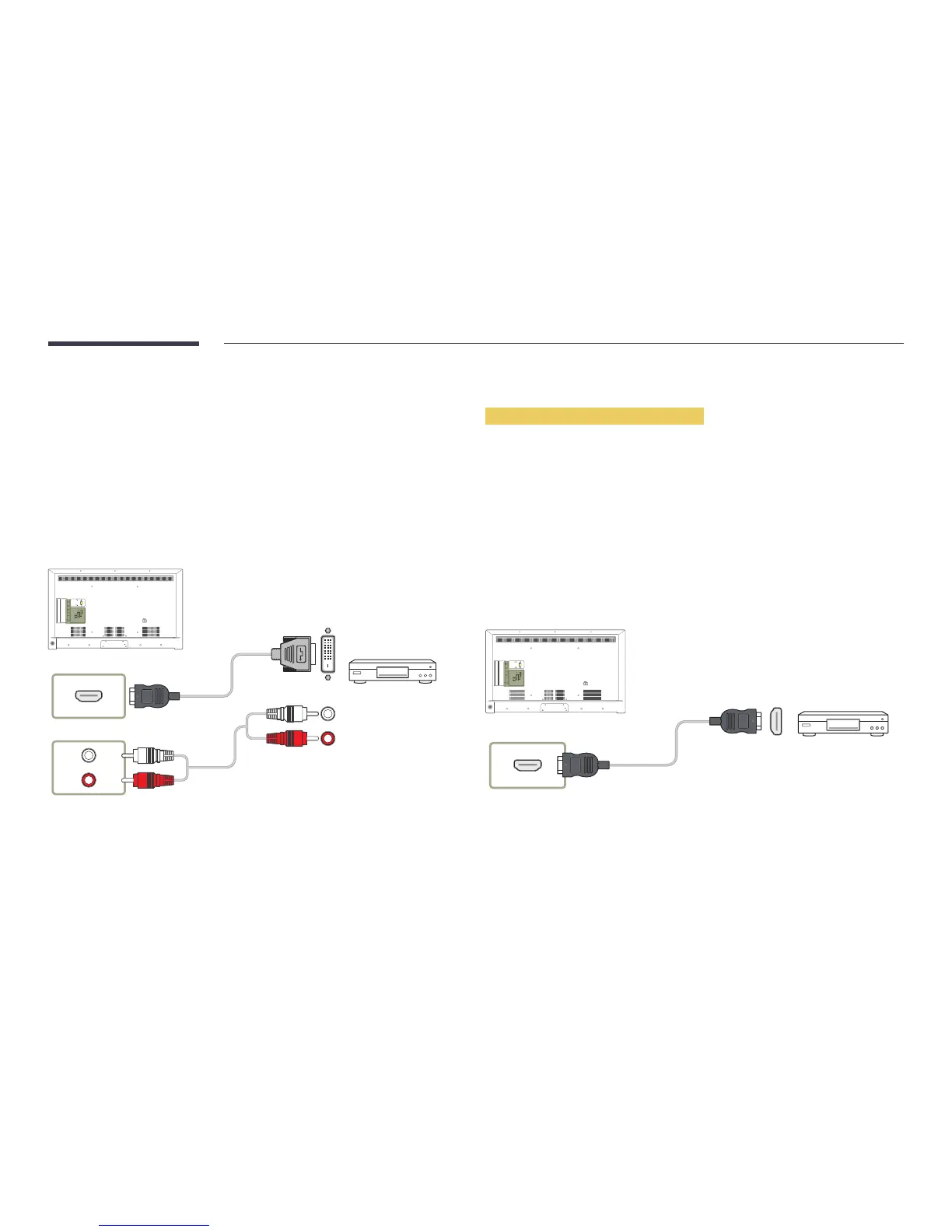

Connection Using an HDMI-DVI Cable
―
Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable. To
resolve this, additionally connect an audio cable to the audio ports on the product and video device.
―
After connecting a video device to the product with an HDMI-DVI cable, make sure to configure the
settings as shown below to enable the video and audio from the video device.
―
Sound → set HDMI Sound to PC(DVI)
―
Picture → set each screen mode to Videos/Images under Picture Mode
―
System → General → set HDMI Hot Plug to On
―
Supported resolutions include 1080p (50/60Hz), 720p (50/60Hz), 480p, and 576p.
―
To view content with a video device connected to the monitor, select Picture and change
Picture Mode to Videos/Images for the optimum picture quality.
HDMI 1, HDMI 2 (ARC), HDMI 3
AV IN / L-AUDIO-R
PC IN
LAN
USB
(0.5A)
USB
(1.0A)
HDMI 1
ANT IN
HDMI 2
(ARC)
HDMI 3
AV IN
PC
AUDIO
IN
AUDIO
OUT
RS232C IN
VIDEO
AUDIO
RL
Connection Using an HDMI Cable
Using an HDMI cable (up to 1080p)
•
For better picture and audio quality, connect to a digital device using an HDMI cable.
•
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
-
To connect the product to a digital device that does not support HDMI output, use an HDMI-
DVI and audio cables.
•
The picture may not display normally (if at all) or the audio may not work if an external device that
uses an older version of HDMI mode is connected to the product. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
•
Be sure to use an HDMI cable with a thickness of 14 mm or less.
•
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection
error may occur.
•
A basic high-speed HDMI cable or one with ethernet is recommended.
This product does not support the ethernet function via HDMI.
HDMI 1, HDMI 2 (ARC), HDMI 3
PC IN
LAN
USB
(0.5A)
USB
(1.0A)
HDMI 1
ANT IN
HDMI 2
(ARC)
HDMI 3
AV IN
PC
AUDIO
IN
AUDIO
OUT
RS232C IN
VIDEO
AUDIO
RL
