SATO CL6NX User Manual

135

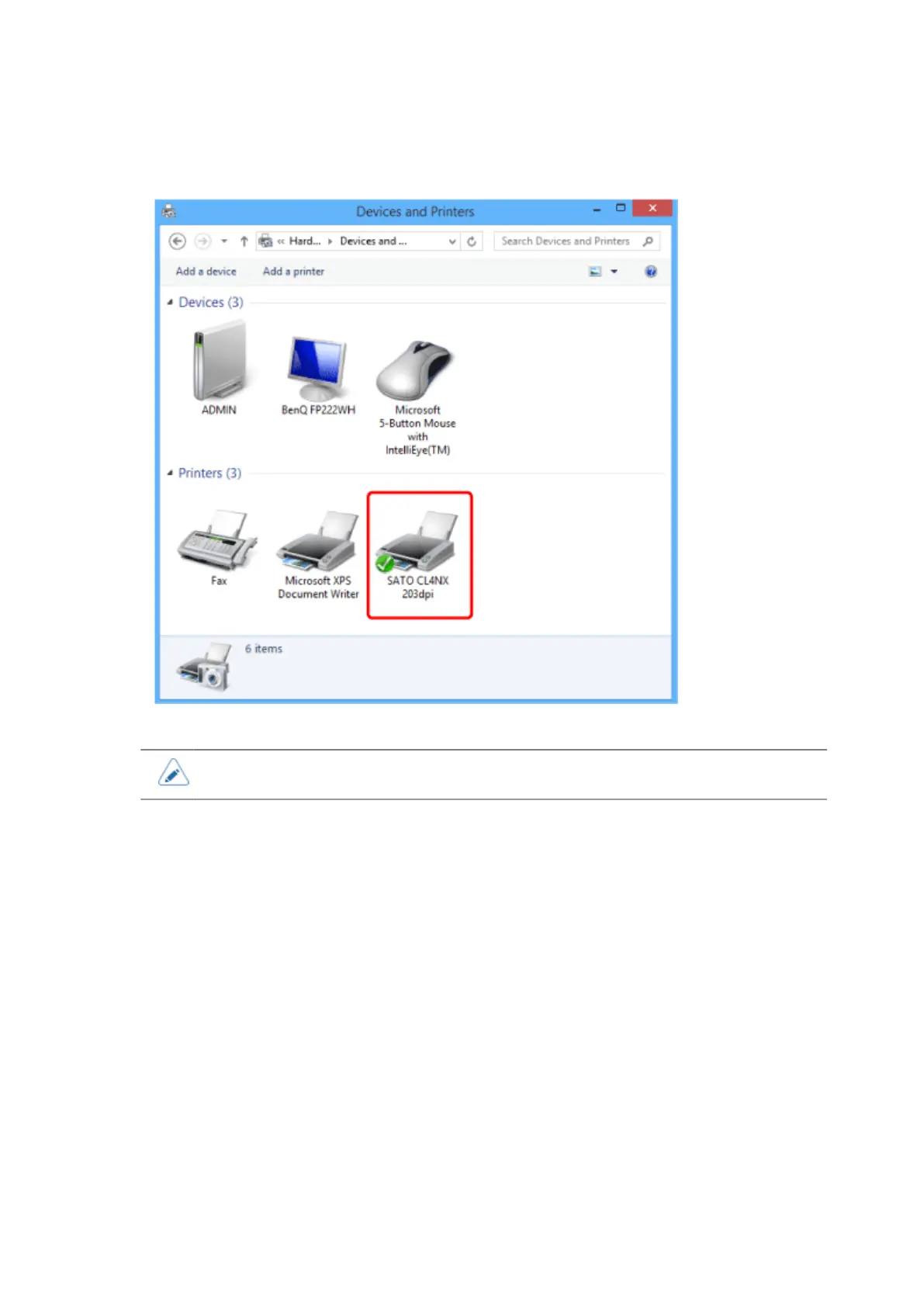

14. Open [Devices and Printers]* and confirm that the printer driver is installed.
*[Printers] in Windows Vista
• The settings of the printer driver should be performed by the Administrator Privilege.
Installing the Printer Driver (Bluetooth)
To use the printer driver with the Bluetooth interface connection, install the printer driver and add the
printer to the computer as a Bluetooth device. Then, it is necessary to change the port setting of the
printer driver according to the port setting of the added Bluetooth device.
The procedure for adding (pairing) the Bluetooth device varies depending on the environment of your
computer. The following procedure is an example of Windows 8.1. For details, refer to the user manual
of your computer.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
