SATO CL6NX User Manual

757

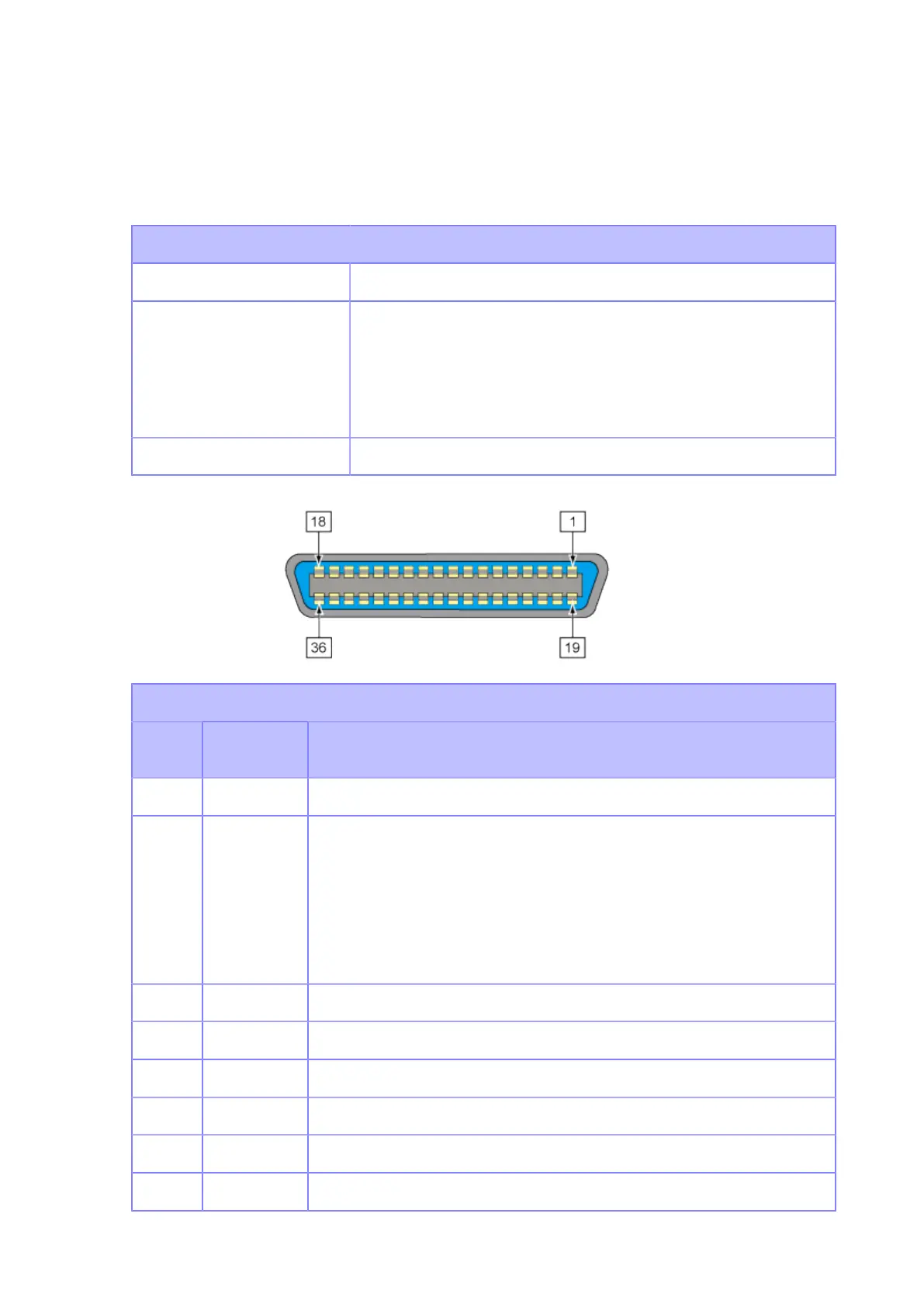

IEEE1284 Interface
This interface complies with the IEEE1284 standard.
Basic Specifications
Connector Amphenol 36 pins, female
Signal Levels
High-level
+2.4 to +5.0 V
Low-level
+0.0 to +0.4 V
Receive Mode Single-item buffer, Multi-item buffer
Connector Pin Specifications
Pin
No.
I/O Description
1 Input STROBE
2 - 9 Input DATA 1 - DATA 8
DATA1
LSB
DATA8
MSB
10 Output ACK
11 Output BUSY
12 Output PAPER EMPTY/PAPER ERROR
13 Output SELECT
14 Input AUTO FEED
15 - Not in use

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
