SATO CL6NX User Manual

51
Settings Mode
In the Settings mode, various setting of the printer can be operated. The topics here explain how to
operate the Settings mode.

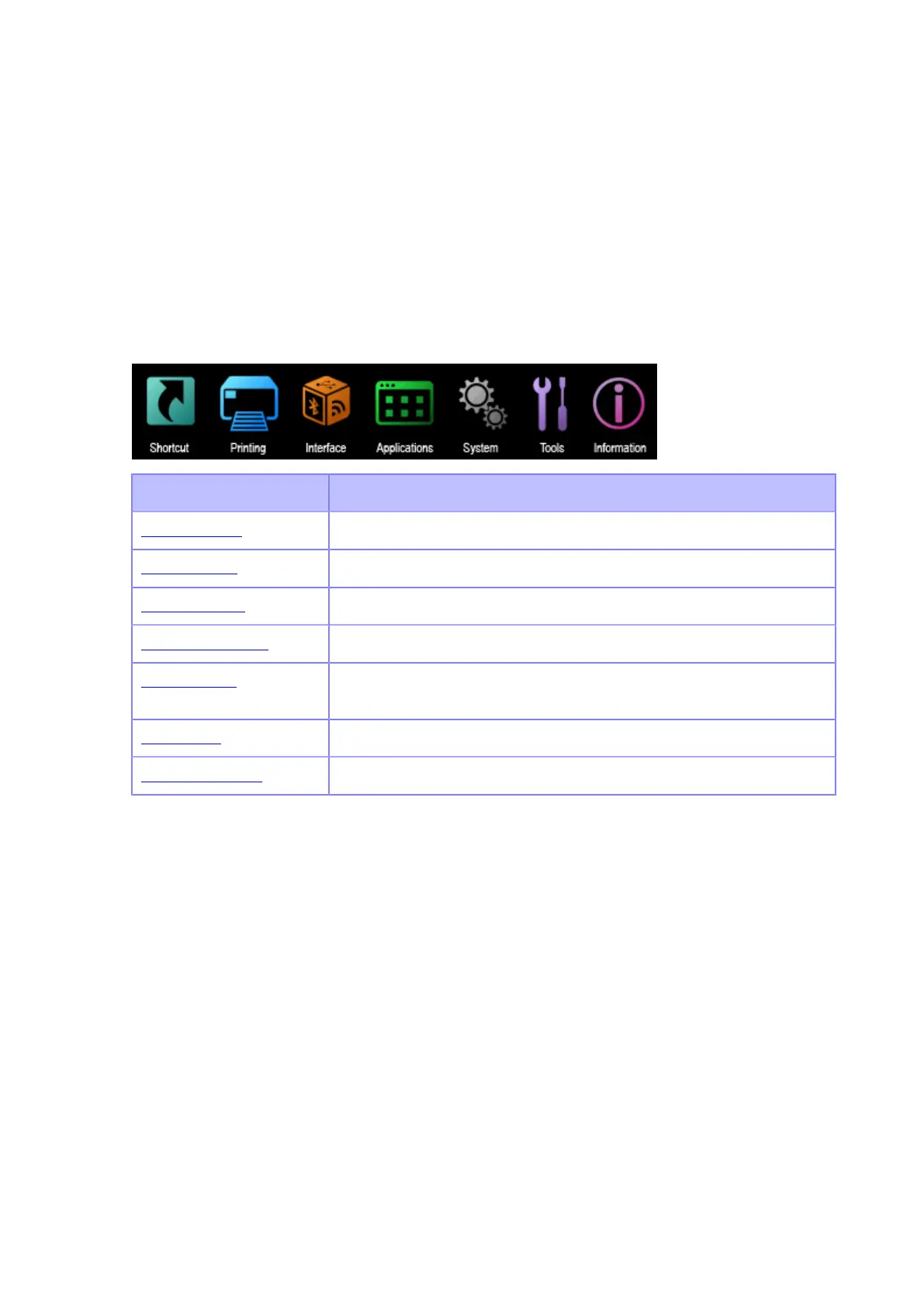

Settings Mode Menus
There are six main menus in the Settings mode and each menu contains many layers of submenus.
Frequently used settings are also listed in the [Shortcut] menu so that you can directly access them.
Menu Description
Shortcut Menu Directly access frequently used settings.
Printing Menu Access the settings related to printing.
Interface Menu Access the settings related to the interfaces.
Applications Menu Access the settings related to the printer's command.
System Menu Access the settings related to the display language, buzzer volume
etc.
Tools Menu Access the test print, initialization and other settings.
Information Menu Access the printer information and guidance videos.
Changing to the Settings Mode
The Settings mode can appear when no print jobs remain in the printer.
Change the printer to the Settings mode according to the following procedure:

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
