SATO CL6NX User Manual

Error Message Indication and Operating Procedure When the SOS (SATO Online Services) Is Enabled (SOS users only)
744
Error Message Indication and Operating Procedure When the
SOS (SATO Online Services) Is Enabled (SOS users only)

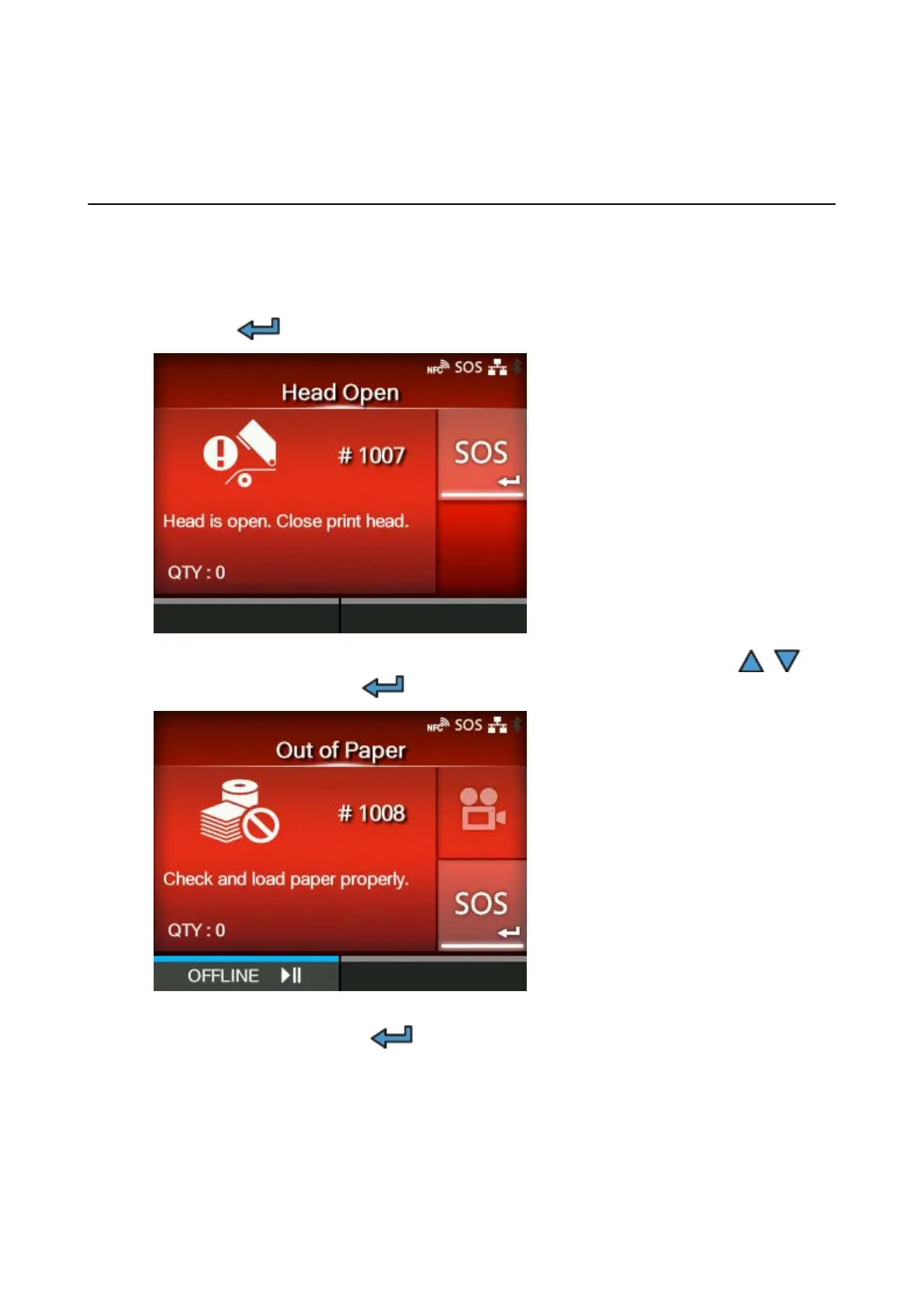

The SOS (SATO Online Services) icon appears in the error message when SOS is enabled.
If you select the SOS icon, a QR code containing the error information and the contact telephone
number appears.
•
Press the button.
•
If the icon of the guidance videos also appears, select the SOS icon using the /
button, and then press the button.
A screen with QR code, phone number, printer serial number, and error number appears after
selecting the SOS icon. Press the button.

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
