SATO CL6NX User Manual

33
Using the Operator Panel
Display and Operation of the Operator Panel

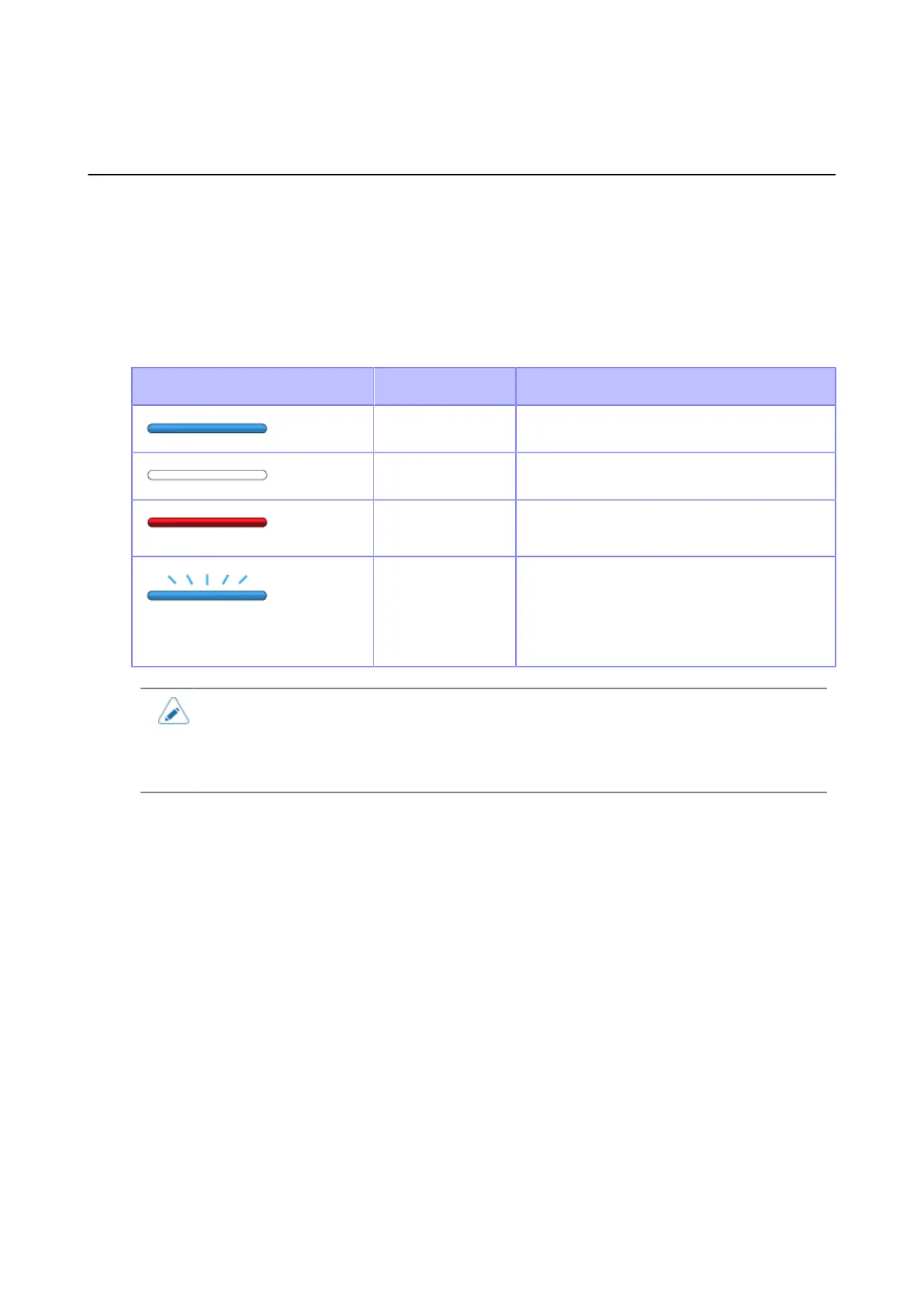

LED Indicator
The LED indicator lights up or flashes to show the current status of the printer. The printer statuses
which the LED indicator shows are as follows:
LED Indicator Color Description
Blue Online mode
(Light off) Power off or Offline mode
Red Printer error (for example, when the ribbon
runs out)
Flashes at intervals of two
seconds.
Blue Sleep mode (energy saving mode)
• If the printer enters sleep mode during a printer error status (LED lights red), the LED
indicator will flash blue at intervals of two seconds.
• By default, the printer goes into sleep mode after 60 minutes of inactivity. Use the
[Energy Saving] menu to change the period before the printer enters sleep mode.
Operations in Online/Offline Mode
Online Mode

SATO CL6NX Specifications

General

Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Cables included	AC
Maximum roll diameter	220 mm
Maximum printing width	167.5 mm
Printing media thickness	0.08 - 0.268 µm
USB port	Yes
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Wi-Fi	No
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	338 mm
Height	321 mm
Weight	20000 g
