Chapter 5 System Operation
5.3 Operation Screen HRZ Series
5-6

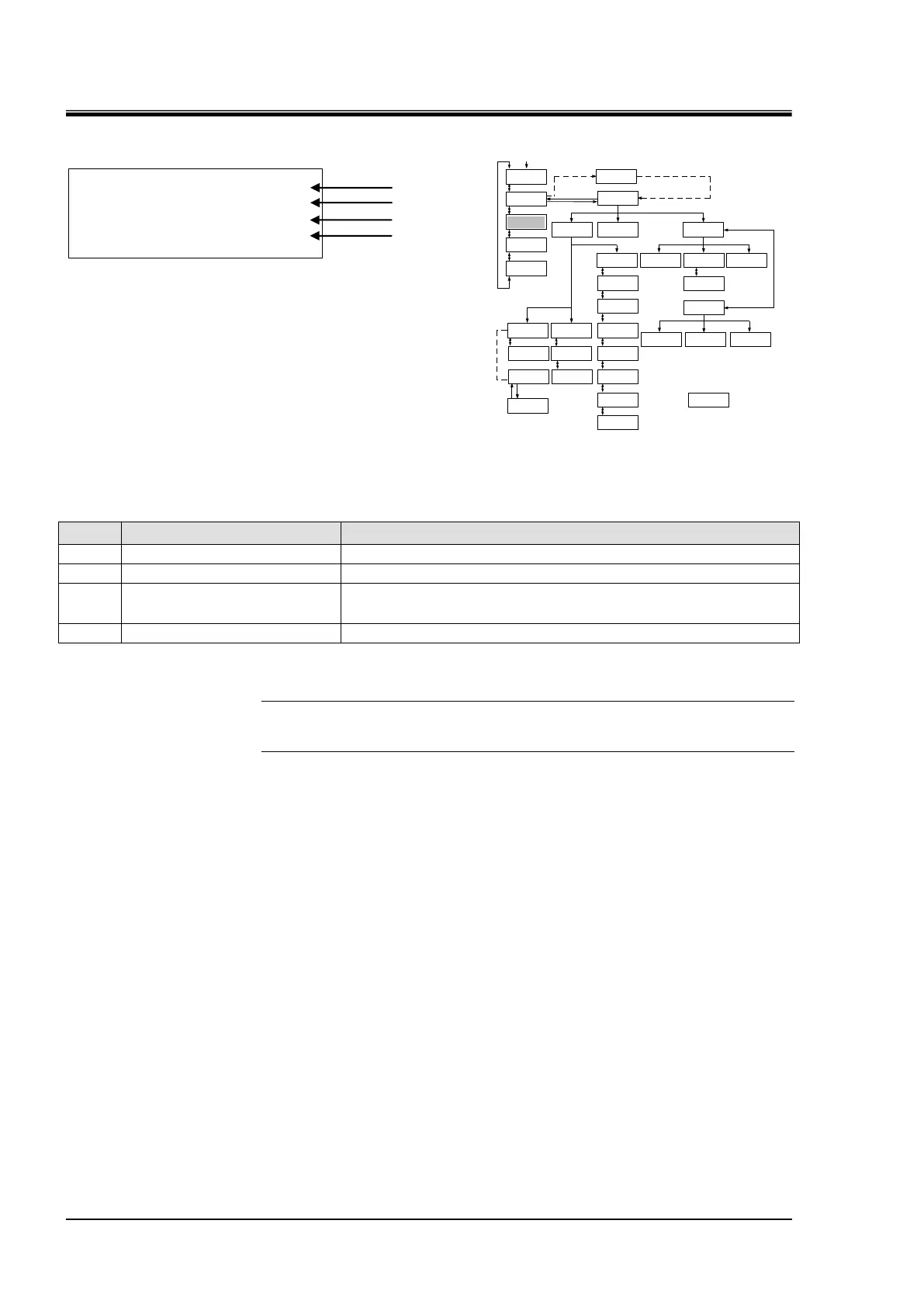

5.3.3 Status screen 2
ＴＥＭＰ ＰＶ ２３．６℃
ＴＥＭＰ ＳＰ ２５．０℃
＜＜ＴＥＭＰ ＲＥＡＤＹ＞＞
ＴＥＭＰ ＢＡＮＤ １．０℃
Figure 5-5 Status screen 2
Table 5-4 Status screen 2
No.
Item
Descriptions
1
TEMP PV
Discharge temperature of the circulating fluid
2
TEMP SP
Set circulating fluid temperature
3
＜＜TEMP READY＞＞
Displays the BAND/READY [Displayed when set value
conditions are satisfied］
*1
4
TEMP BAND
Set value of BAND range
*1
[Tips]
See “Appendix 8.5 BAND/READ” in Chapter 8 on page 8-17 on offset
features (*1).
2
1
3
4
POWER ON
