HRX-OM-X010
Chapter 8 Appendix
8.6 Anchor Bolt Mounting Position HRZ Series
8-18
8.6 Anchor Bolt Mounting Position
8.6.1 Part 1
HRZ***-WS-F HRZ***-W1S-F HRZ***-W2S-F
Lock the brakes on casters (2 pcs. on the front), and attach the anti-seismic bracket
(optional: HRZ-TK002) to secure this system.

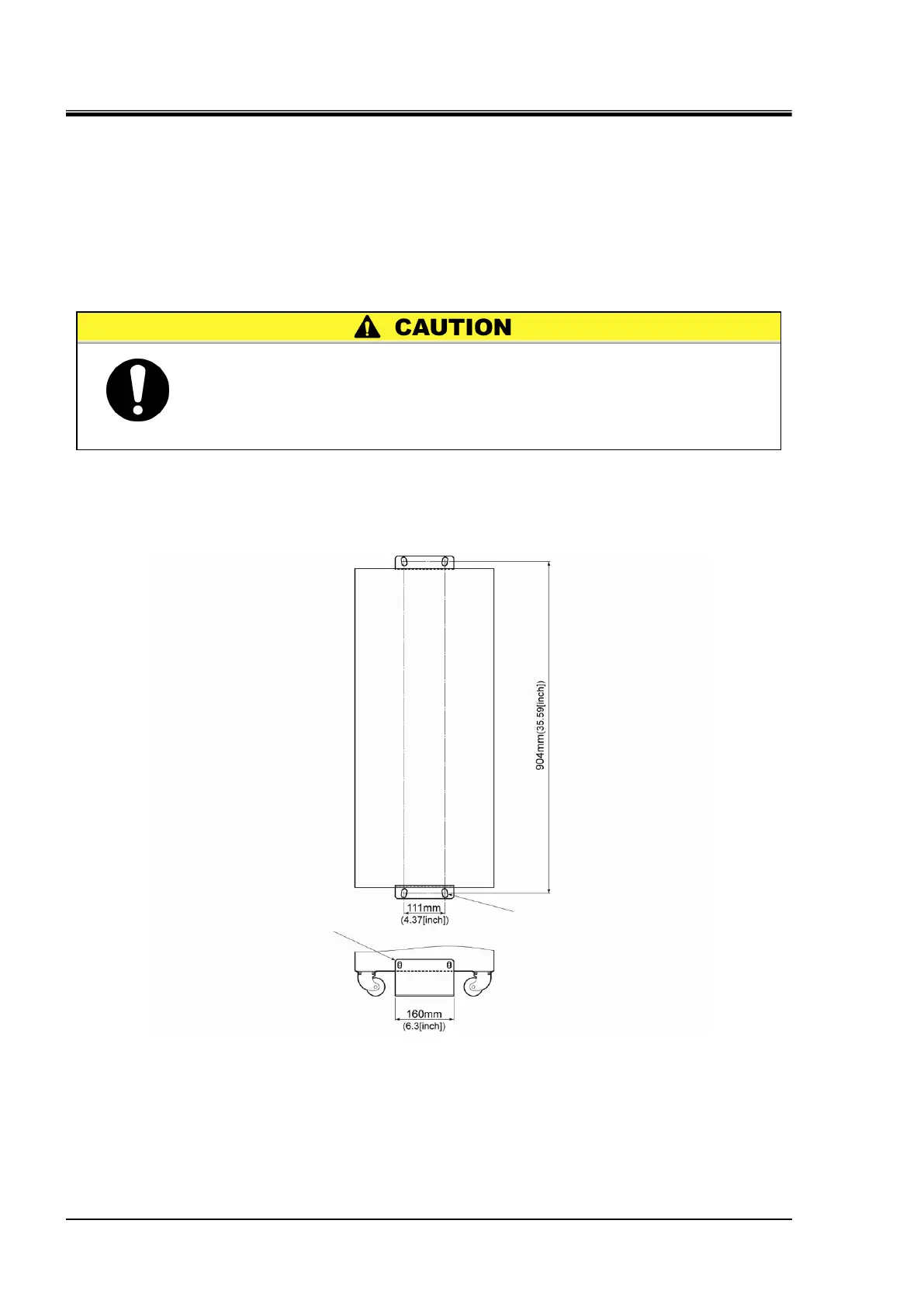

Figure 8-10 Anchor Bolt Mounting Position
Front
Anti-seismic bracket (optional)
Anchor bolt (4-Ø14)
Top
 Anti-seismic bracket is an optional accessory, which is required for the
installation of this system (HRZ-TK002).
 It is your responsibility to prepare anchor bolts suitable for your floor material.
M12-anchor bolts (4 pcs.) are required.
