6-5

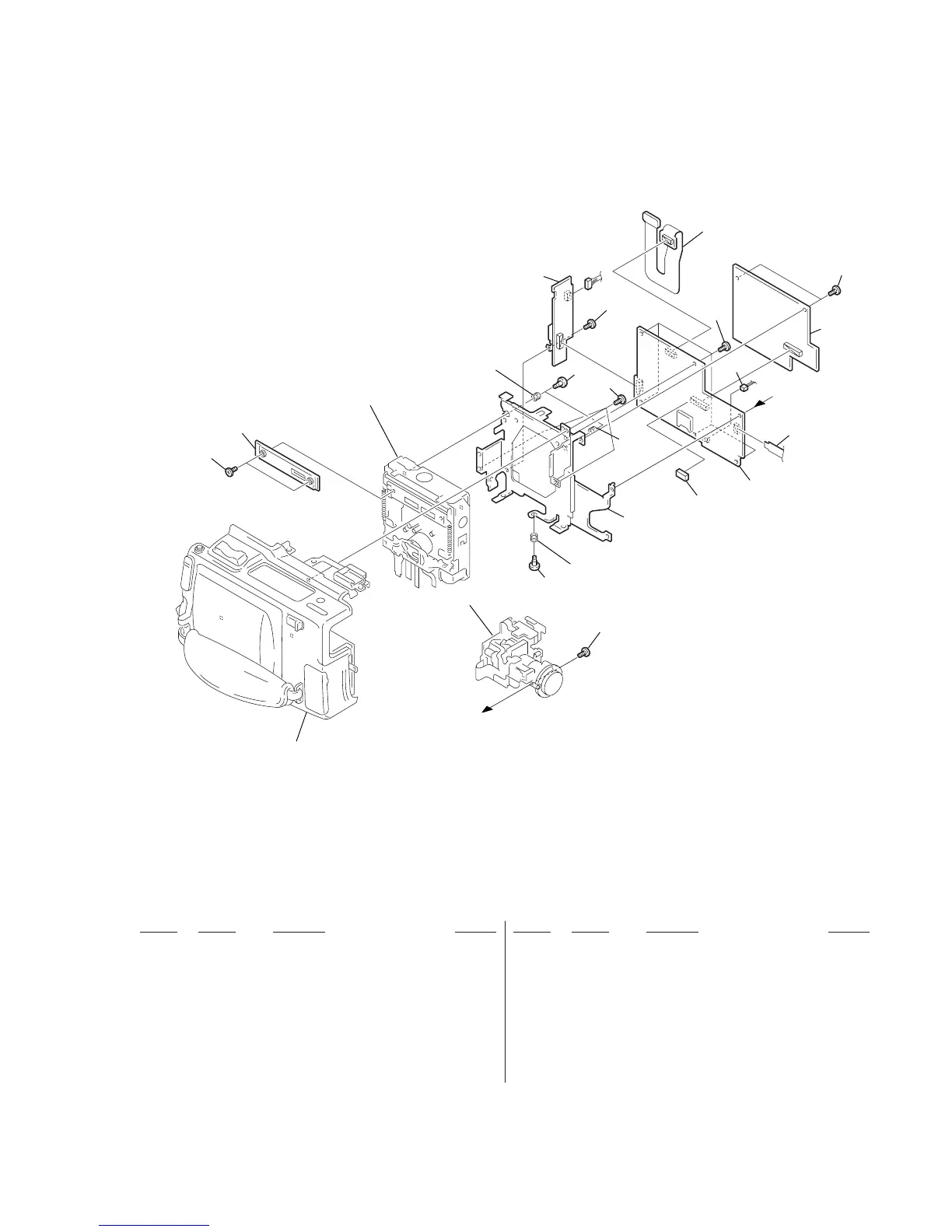

6-1-5. CHASSIS SECTION
a
a
201
202
203
204
205
206
207
208
208
208
208
208
209
209
208
210
not supplied
not supplied
not
supplied
211
C Mechanism
Zoom lens section
Cabinet (L) section
AU-202
Board
VC-206
Board
DD-
106
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-988-481-01 LID, CASSETTE COMPARTMENT
202 A-7067-144-A DD-106 BOARD, COMPLETE
203 1-669-509-21 FP-650 FLEXIBLE BOARD
204 A-7073-520-A AU-202 BOARD, COMPLETE
(TRV9/TRV9E:EXCEPT AEP,UK)
204 A-7073-599-A AU-202 BOARD, COMPLETE (TRV9E:AEP,UK)
205 1-669-511-11 FP-654 FLEXIBLE BOARD
206 A-7067-143-A VC-206 BOARD, COMPLETE (TRV9)
206 A-7067-155-A VC-206 BOARD, COMPLETE (TRV9E:AEP,UK)
206 A-7067-160-A VC-206 BOARD, COMPLETE
(TRV9E:EXCEPT AEP,UK)
* 207 X-3948-451-1 FRAME ASSY, MD
208 3-968-729-81 SCREW (M2), LOCK ACE, P2
209 3-988-464-01 SCREW (M2), STEP
210 1-958-570-11 HARNESS (BT-55)
211 9-911-840-99 CUSHION, VC
To Next Page
