6-7

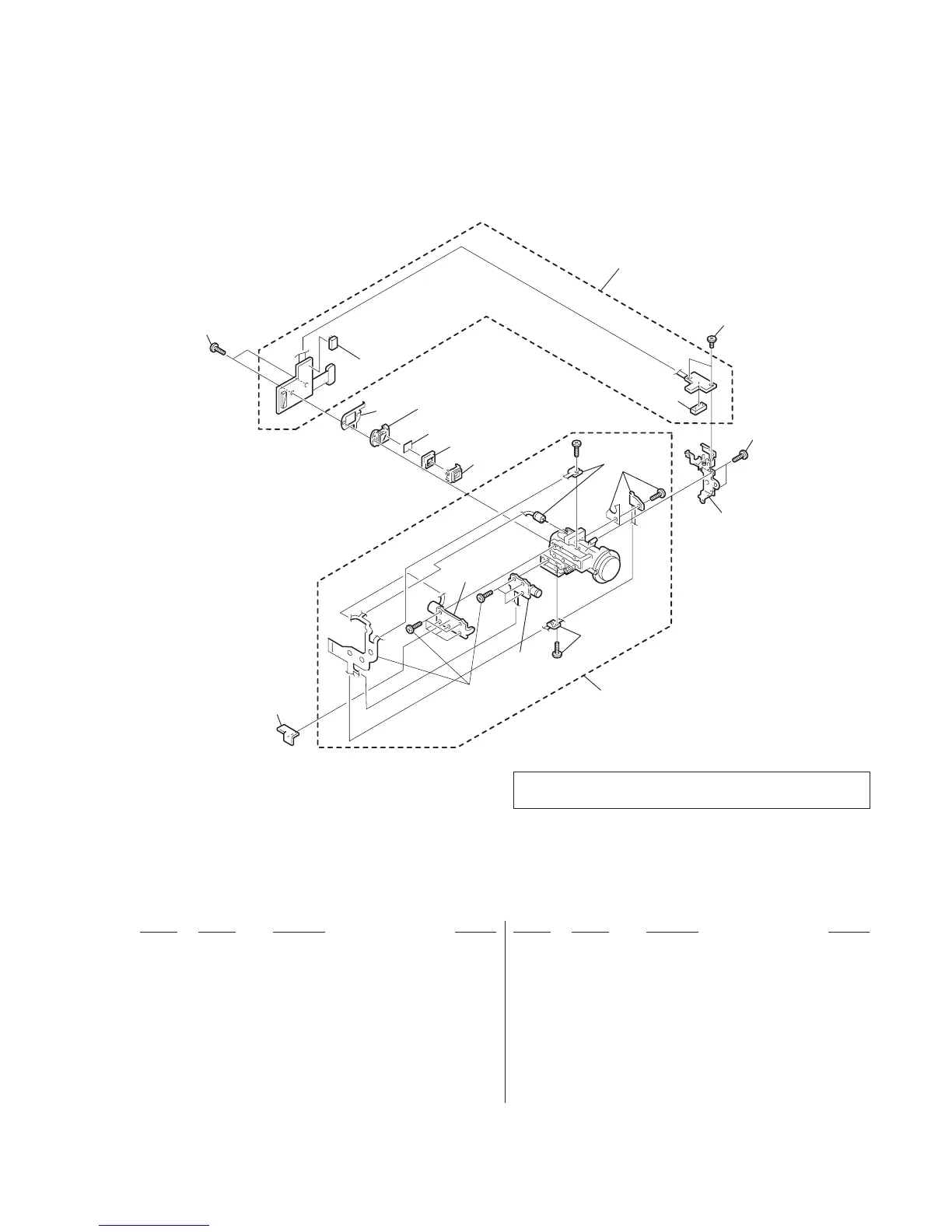

6-1-7. ZOOM LENS SECTION
301
302
303
304
305
306
311
307
308
309
310
SE452
M905
M904
IC451
SE451
not
supplied
not
supplied
not
supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
301 1-758-154-11 LENS, ZOOM (VCL-5115VA)
302 A-7073-516-A CD-185 BOARD, COMPLETE
* 303 3-988-448-01 PLATE, CD GROUND
304 1-758-155-21 FILTER BLOCK, OPTICAL
305 3-968-054-11 RUBBER (FM), SHIELD
306 3-978-981-11 ADAPTOR (FK), CCD FITTING
* 307 X-3948-453-1 FRAME ASSY, LENS
308 3-318-203-11 SCREW (B1.7X6), TAPPING
309 3-713-786-21 SCREW (M2X3)
310 3-948-339-61 TAPPING
* 311 3-050-210-01 CUSHION (L)
IC451 A-7030-881-A CCD BLOCK ASSY (220 SERVICE)
(CCD IMAGER)(TRV9)
IC451 A-7030-885-A CCD BLOCK ASSY (221 SERVICE)
(CCD IMAGER)(TRV9E)
M904 3-709-400-01 MOTOR, FOCUS
M905 3-709-399-01 MOTOR, ZOOM
SE451 1-803-042-31 SENSOR, ANGULAR VELOCITY (PITCH)
SE452 1-801-731-31 SENSOR, ANGULAR VELOCITY (YAW)
Be sure to read “Note on the CCD imager replacement” on
page 4-5 when changing the CCD Imager.
