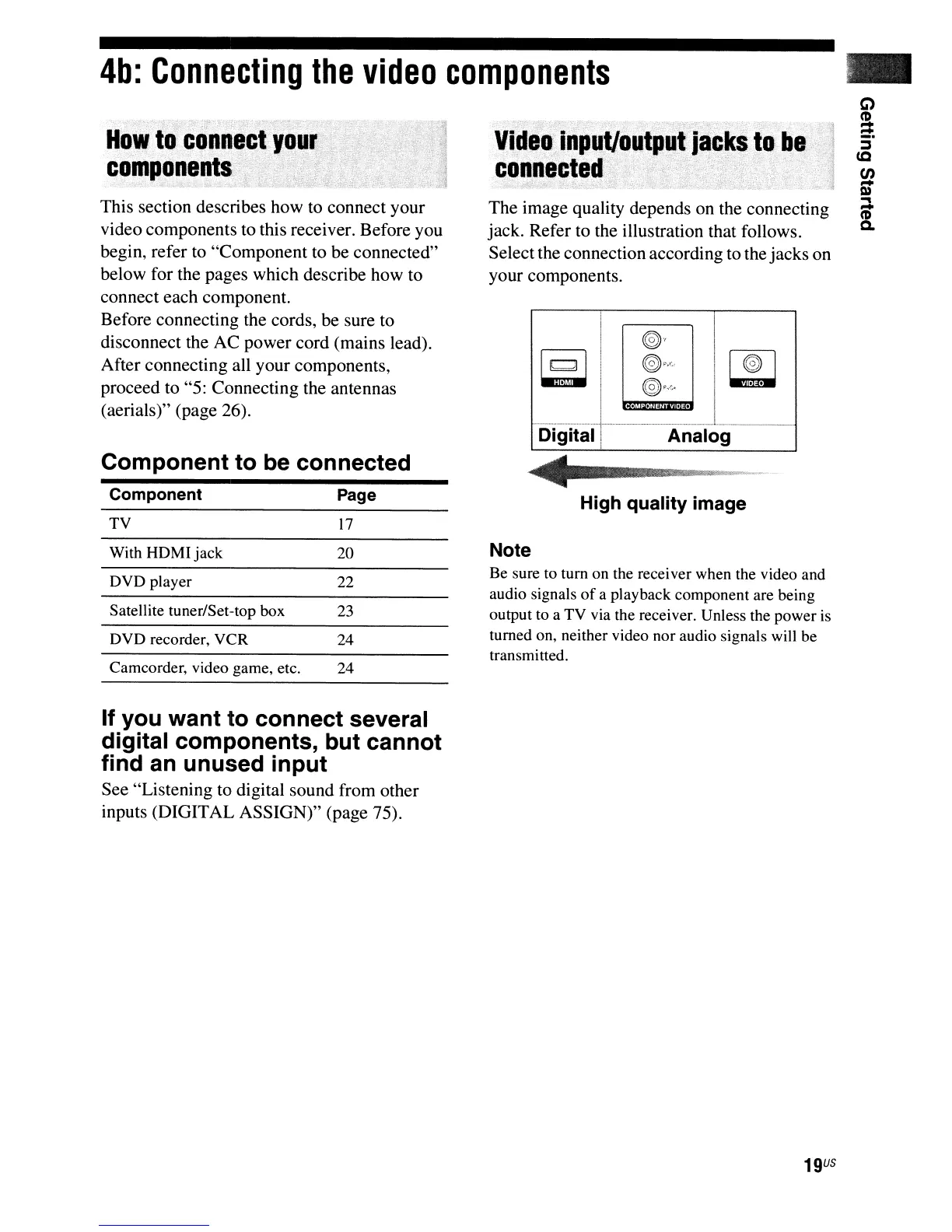

4b:
Connecting
the
video
components
-
How
,to
connect
Jour
..
'-
'
..
compPI,1,Qts,
':::(.'::
This section describes how to connect your
video components to this receiver. Before you
begin, refer to "Component to be connected"
below for the pages which describe how to
connect each component.
Before connecting the cords, be sure to
disconnect the AC power cord (mains lead).
After connecting all your components,
proceed to "5: Connecting the antennas
(aerials)" (page 26).
Component to be connected
Component Page
TV
17
With
HDMljack
20
DVD player
22
Satellite tuner/Set-top box
23
DVD recorder, VCR
24
Camcorder, video game, etc.
24
If you want to connect several
digital components, but cannot
find an unused input
See "Listening to digital sound from other
inputs (DIGITAL ASSIGN)" (page 75).
,
Video,
inputloutp~t
jacks
connected,
"W
'
The image quality depends on the connecting
jack. Refer to the illustration that follows.
Selectthe connection according to the jacks on
your components.
0,
"""
~
0~'~~"
L~J
0
.0
\?J ',r;.
0·0
.0
Digital Analog
High quality image
Note
Be sure to tum on the receiver when the video and
audio signals
of
a playback component are being
output to a TV via the receiver. Unless the power
is
turned on, neither video nor audio signals will be
transmitted.
19
U5
To Next Page
