125MS 261, MS 261 C

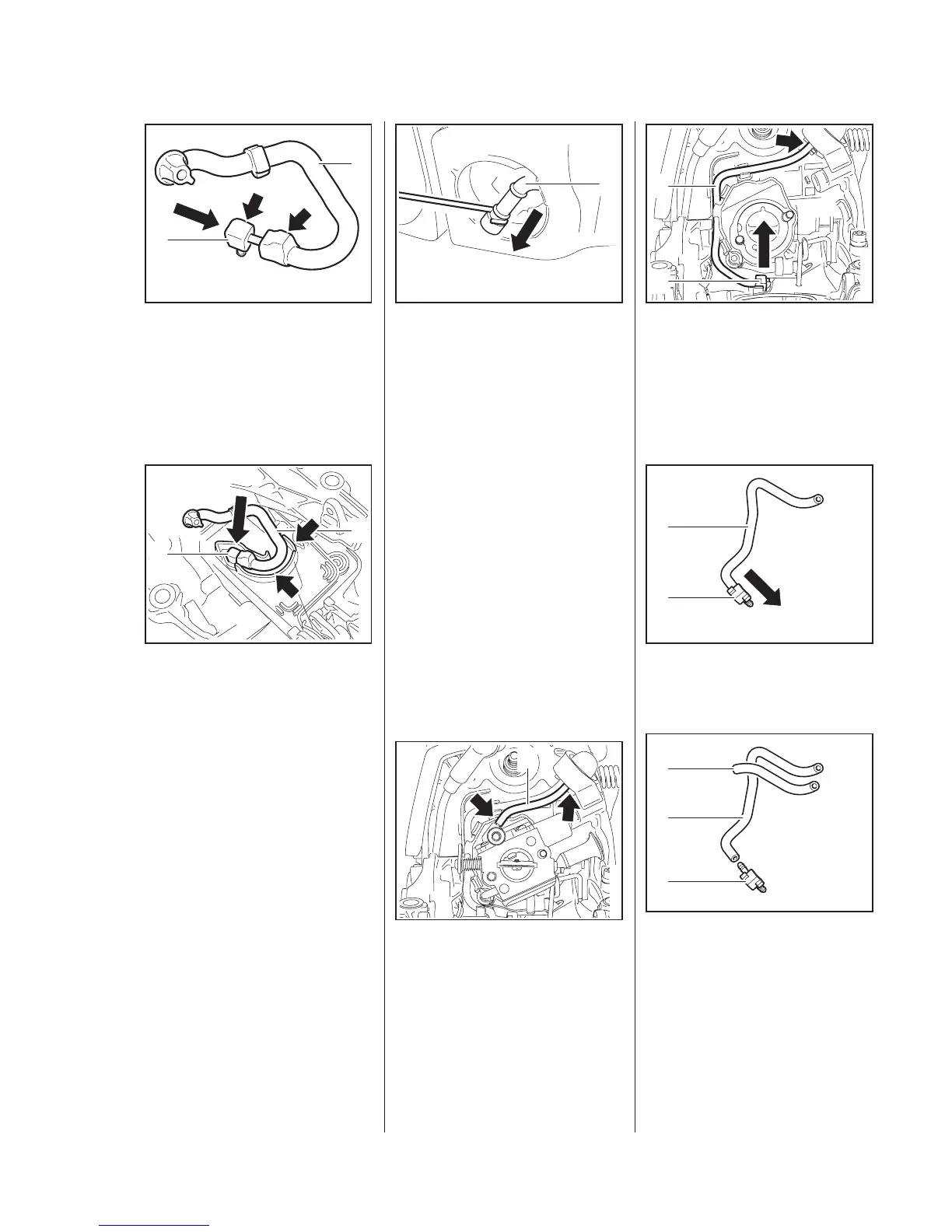

– Line up straight face of
connector (1) with hump on fuel
hose (2) (see arrows).
: Push the connector (1) into the
fuel hose (2) as far as stop.
: Push the connector (2) into the
fuel suction hose.
: Line up the fuel hose (1) and
connector with the
channel (arrows).
: Fit the fuel hose (1) in the
channel (arrows).
5902RA441 TG
2
1
5902RA442 TG
1
2
: Use hook 5910 893 8800 to
remove the fuel suction hose (1)
from the fuel tank.
Do not overstretch the fuel suction
hose.
– Fit the pickup body, b
b
12.11.1
– Close the tank cap.
– Reassemble all other parts in the
reverse sequence.
12.11.3 Fuel Hose – Models with
Manual Fuel Pump
– Remove the filter base,
b
12.3
– Open the tank cap.
: Pull the furl suction hose (1) off
the nipples (arrows).
– Remove the carburetor,
b
12.5
1
0001RA419 TG
5902RA443 TG
1
: Pull out the connector (1) with
fuel return hose (2).
: Pull the fuel return hose (2) off
the nipple on the fuel
pump (arrow).
: Pull the connector (1) off the fuel
return hose (2).
: Install a new fuel return hose (2)
and new fuel suction hose (1),
inspect the connector (3) and
replace if necessary.
5902RA444 TG
2
1
5902RA445 TG
2
1
5902RA446 TG
2
3
1
