77MS 261, MS 261 C

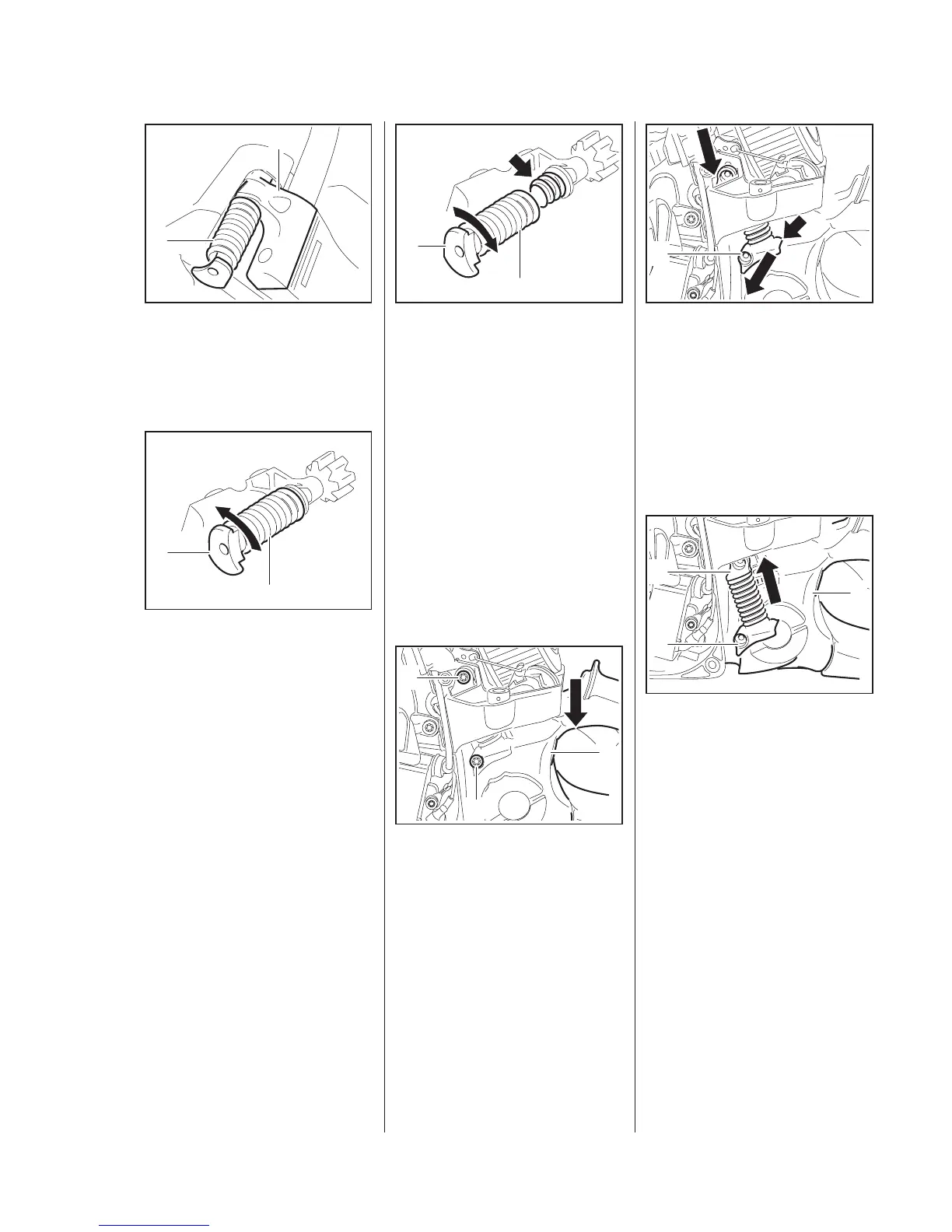

: Pry out the AV spring (1).
: Remove the complete
bracket (2).
: Unscrew the AV spring (1).
: Unscrew the bearing plug (2).
– Check the AV spring and plug,
replace if necessary.
5902RA232 TG
1
2
2
1
5902RA233 TG
: Screw home the bearing plug (2)
as far as stop.
: Screw the AV spring (1) into the
bracket (arrow) as far as stop.
– Reassemble all other parts in the
reverse sequence.
9.3 AV Spring on Fuel Tank
– Remove AV spring from
handlebar, b
b
9.4
– Remove the stop buffer,
b
9.5
: Take out the screws (1).
: Press the tank housing (2) down
a little and hold it there.
2
1
5902RA234 TG
1
1
5902RA235 TG
2
: Pull the AV spring (1) out of the
guide (arrow) and remove it from
between the crankcase and tank
housing.
– Check the AV spring and plug,
replace if necessary.
Installing
: Press the tank housing (2) down
a little and hold it there.
: Push the AV spring (1), bearing
plug (3) first, between the
crankcase and tank housing.
5902RA236 TG
1
5902RA237 TG
1
2
3
