Stihl MS 261 C User Manual

127MS 261, MS 261 C

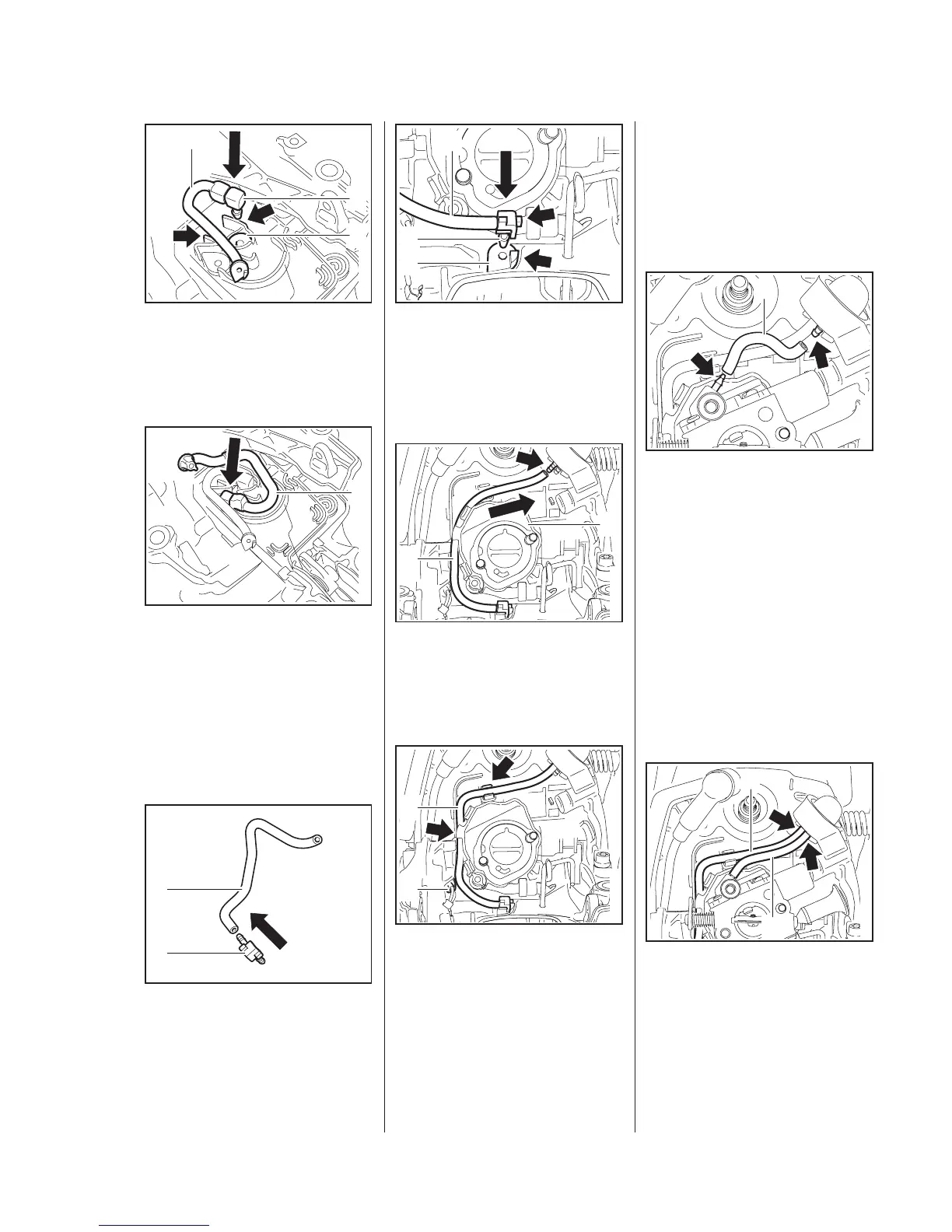

: Fit the connector (1) with fuel
return hose (2) between the
positioning ribs (arrows) and
push it into the grommet (3).
: Install the fuel hose (1),
b
12.11.2
– Install the air guide shrouds,
b
12.4.2
– Install the carburetor carrier,
b
12.8
: Push the connector (1) into the
fuel return hose (2) as far as stop.
5902RA497 TG
2
1
3
5902RA495 TG
1
5902RA498 TG
2
1
: Push the connector (1) with fuel
return hose (2) into the fuel return
hose (3) so that the
contours (arrows) are in
alignment.
: Fit the fuel return hose (1) behind
the carburetor carrier (2) and
push it onto the fuel pump's
nipple (arrow) as far as stop.
: Position the fuel return hose (2)
so that it is next to the short circuit
wire's grommet (1).
5902RA499 TG
3
1
2
5902RA500 TG
1
2
5902RA501 TG
2
1
: Push the fuel return hose (2) into
the guides (arrows).
– Install the carburetor, b
b
12.5
–Close the tank cap.
: Push the fuel suction hose (1)
onto the nipples (arrows) as far
as stop.
– Check operation with manual fuel
pump,
b
12.11.4
– Reassemble all other parts in the
reverse sequence.
12.11.4 Manual Fuel Pump
– Remove the filter base,
b
12.3
: Disconnect the fuel suction
hose (1) and fuel return hose (2)
from the nipples (arrows).
5902RA502 TG
1
5902RA503 TG
2
1
