Stihl MS 261 C User Manual

91MS 261, MS 261 C

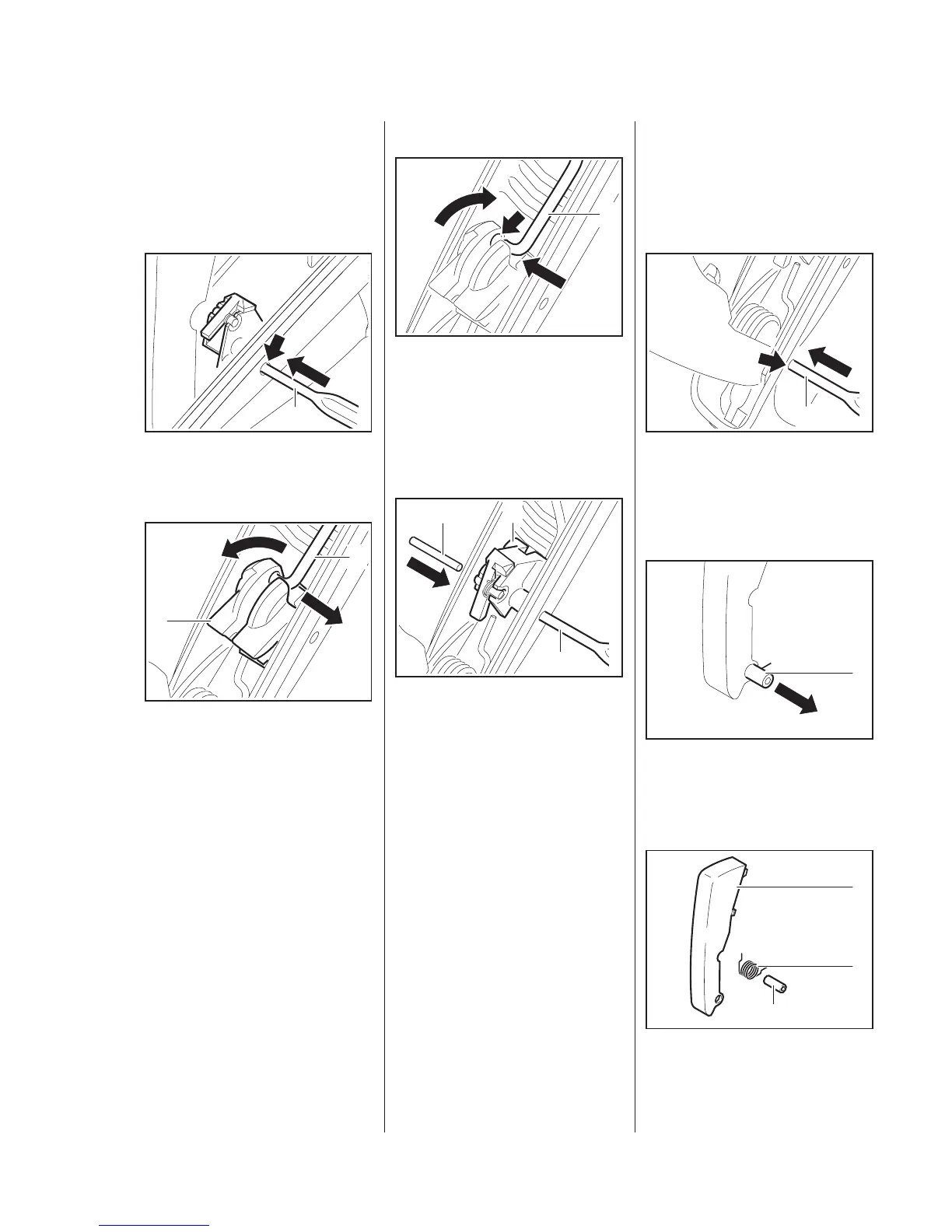

10.3.1 Switch Lever –
QuickStop Super
– Remove the handle molding,
b
10.3
: Use a drift (1) to drive out the
pin (arrow).
– Lift the switch lever (1) slightly.
: Turn the switch lever (1) about
90° and pull it off the brake
cable (2).
– Check the switch lever (1) and
replace it if necessary.
5902RA330 TG
1
5902RA331 TG
1
2
Installing
: Connect the brake cable (1) to
the bore (arrow) in the switch
lever.
– Turn the switch lever so that it
faces up.
: Use a drift (2) to center the switch
lever (1).
: Drive home the pin (3) until it is
recessed by same amount at
both sides.
– Reassemble in the reverse
sequence.
– Check operation of switch lever
by operating the lockout lever.
5902RA332 TG
1
5902RA333 TG
1
2
3
10.3.2 Lockout Lever –
QuickStop Super
– Remove the handle molding,
b
b
10.3
: Use a drift (1) to drive out the
pin (arrow).
– Take out the lockout lever.
: Push out the bushing (1).
– Remove the torsion spring.
– Check the lockout lever (1),
torsion spring (2) and bushing (1)
and replace if necessary
5902RA334 TG
1
219RA453 TG
1
219RA454 TG
1
2
3
