Stihl MS 261 C User Manual

90 MS 261, MS 261 C

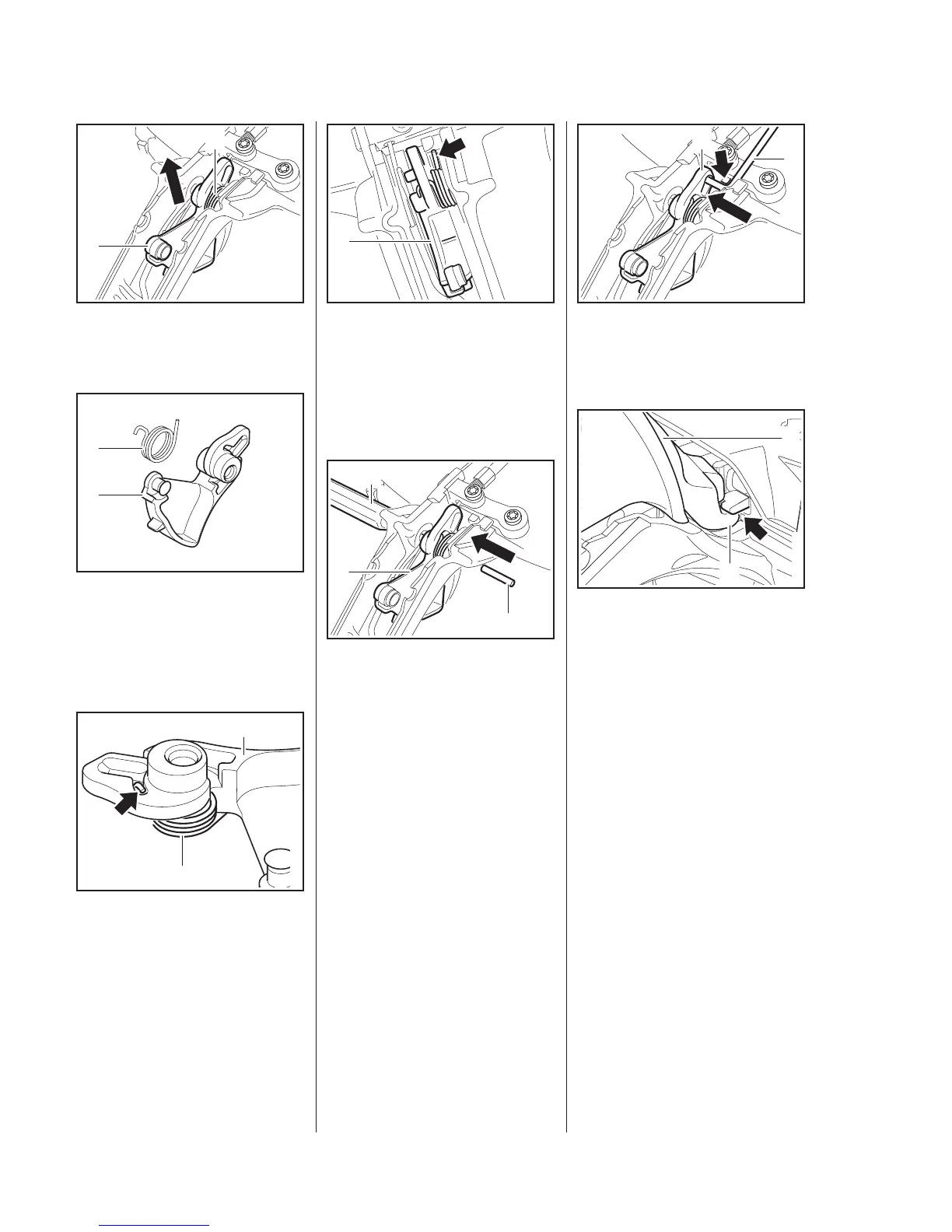

: Remove the throttle trigger (1)
with torsion spring (2).
– Check the throttle trigger (1) and
torsion spring (2) and replace if
necessary
Installing
: Attach the torsion spring (1) to
the trigger (2) – note the installed
position (arrow).
5902RA324 TG
1
2
5902RA325 TG
1
2
5902RA326 TG
1
2
: Place the throttle trigger (1) in the
rear handle so that the leg of the
torsion spring locates against the
handle (arrow) and the holes in
the throttle trigger and handle are
in alignment.
Brake cable must be in the handle
housing guide below the drift
– take care not to damage the brake
cable.
: Use a drift (2) to center the
throttle trigger (1).
: Drive home the pin (3) until it is
recessed by same amount at
both sides.
5902RA327 TG
1
5902RA328 TG
1
2
3
: Attach the throttle rod (1) to the
trigger (2) and fit it in the
guide (arrow).
: Engage tabs (2) of handle
molding (1) in the
openings (arrow).
– Press the lockout lever down.
– Push down the handle
molding (1) until it snaps into
position.
– Check operation.
– Reassemble all other parts in the
reverse sequence.
5902RA329 TG
2
1
5902RA320 TG
1
2
