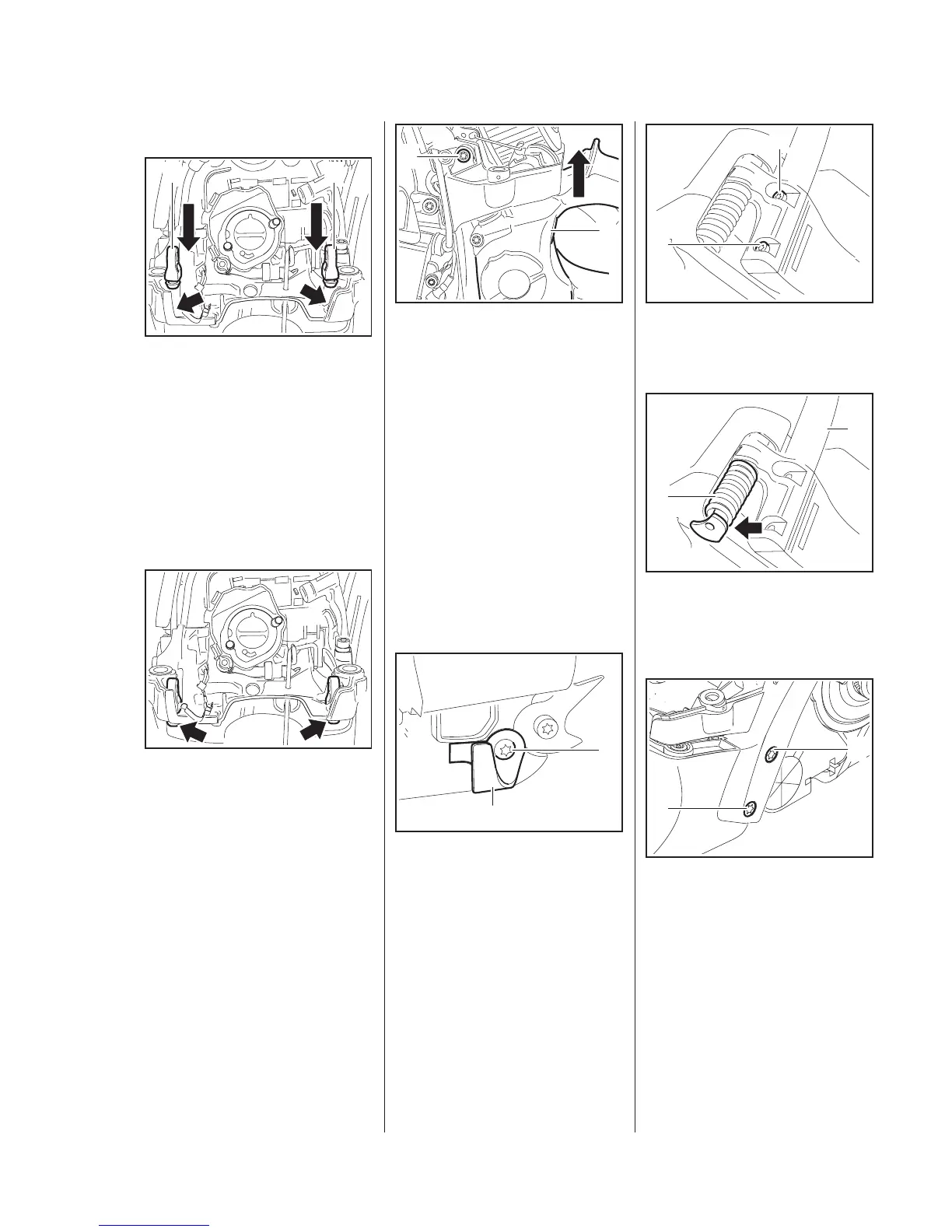

Installing
– Position the buffers (1)
with their tapered ends facing the
bores.
– Use STIHL press fluid to simplify
assembly,
b
15
: Push the tapered ends of the
buffers (1) fully into the
bores (arrows).
The tapered ends (arrows) must be
properly seated on the other sides
of the bores.
5902RA255 TG
1 1
5902RA256 TG
– Push the tank housing (2)
upwards and hold it there.
: Insert and tighten down the
screw (1) firmly.
– Reassemble all other parts in the
reverse sequence.
9.6 Handlebar
– Remove the shroud, b
b
6.4
– Remove AV spring from
handlebar,
b
9.4
: Take out the screw (1) and
remove the chain catcher (2).
1
5902RA257 TG
2
5902RA230 TG
2
1
: Remove the screws (1) from the
underside of the machine.
: Push the handlebar (2) sideways
and pry the AV spring (1) out of its
bearing seat (arrow).
: Take out the screws (1).
5902RA258 TG
1
1
5902RA259 TG
1
2
5902RA270 TG
1
1
