57MS 261, MS 261 C

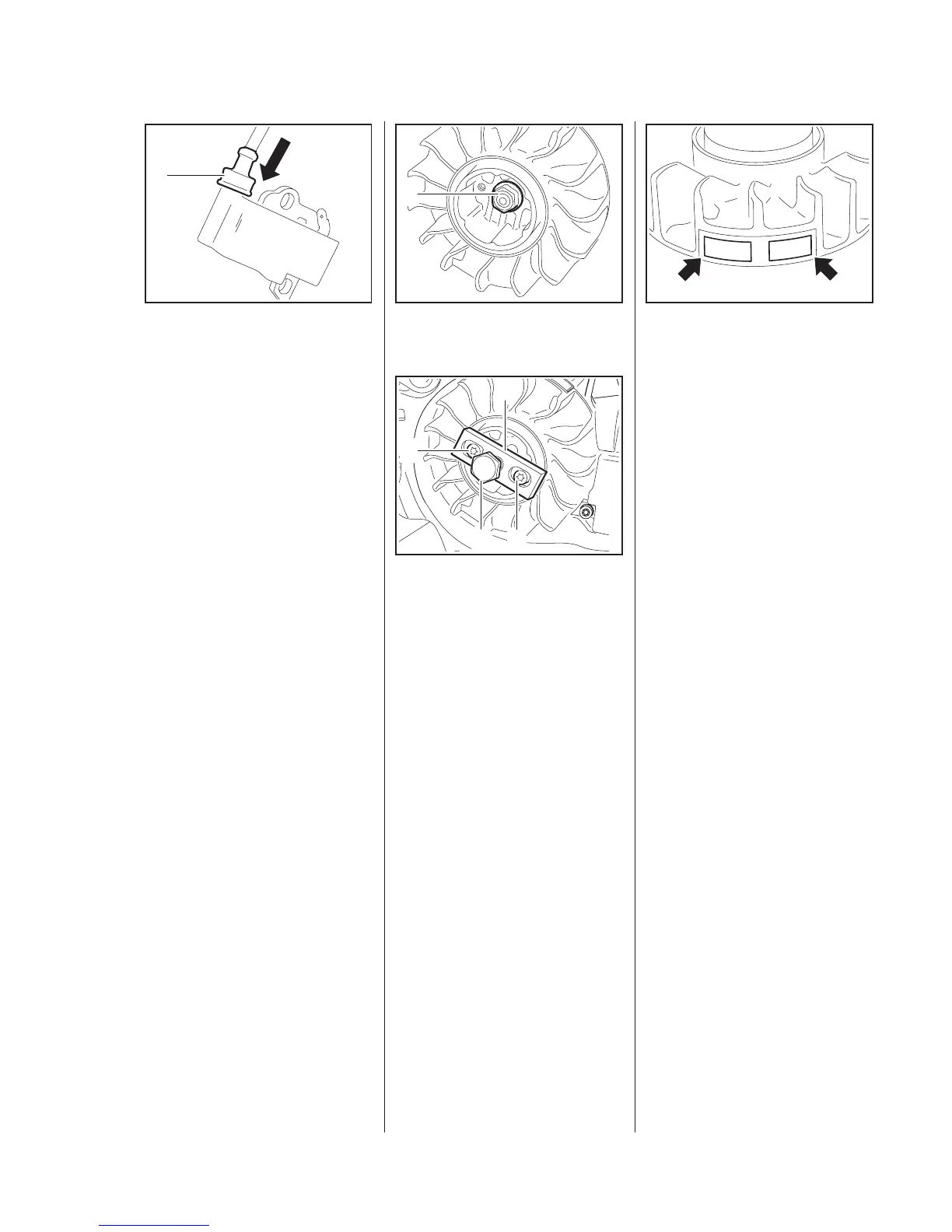

– Slide the grommet (1) onto the
ignition module.
– Screw the ignition lead into the
ignition module.
: Push the grommet (1) into
position.
– Install the ignition module and set
the air gap between the module
and flywheel,
b
7.3
– Reassemble all other parts in the
reverse sequence.
7.6 Flywheel
The new puller 5910 890 4504 (with
a longer base block) must be used
on models with ErgoStart. The new
puller replaces the previous puller
1135 890 4500, which can still be
used on standard models.
– Remove the shroud,
b
6.4
– Remove the fan housing,
b
8.2
– Use locking strip to block the
piston,
b
4
5902RA180 TG
1
: Unscrew the flywheel nut (1).
: Fit the puller (3) 5910 890 4504
on the flywheel and tighten the
screws (1) as far as stop.
– Tighten the screws uniformly.
Models with ErgoStart
Take care not to damage the pawls.
All models
: Screw home the thrust bolt (2)
clockwise until the flywheel is
released from the crankshaft.
– Remove the puller (3)
5910 890 4504 from the flywheel.
0001RA165 TG
1
5902RA181 TG
1
1
2
3
The flywheel and magnet
poles (arrows) must not be
damaged or have turned blue.
Replace flywheel if necessary.
– On versions with heating, also
check the magnet ring for signs of
damage, b
b
13.7.
On versions with ErgoStart, also
check the pawls for signs of
damage,
b
8.4.
All models
The flywheel and crankshaft stub
must be free from grease before
assembly.
0001RA167 TG
