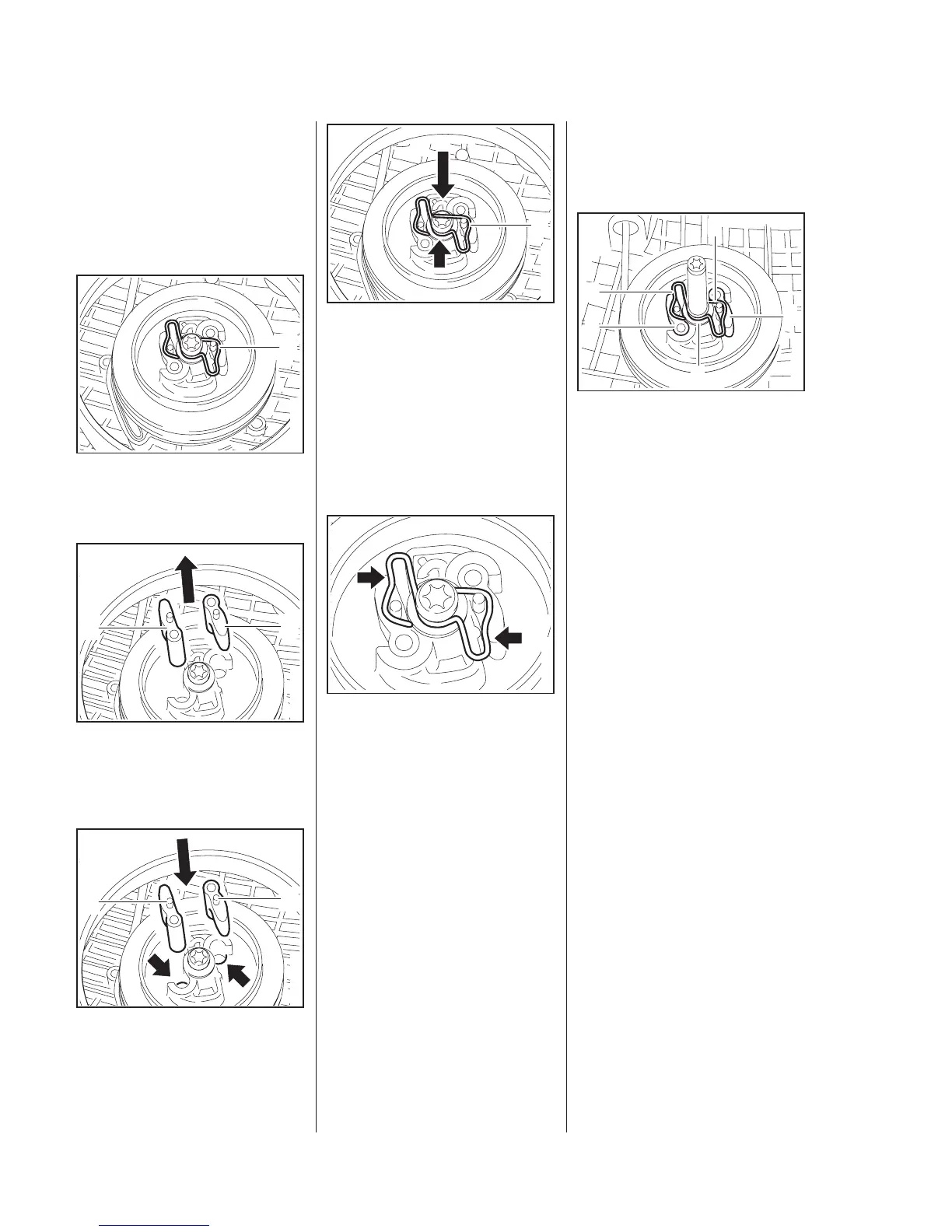

8.3 Pawls
– Remove the fan housing,
b
8.2
– Relieve tension of rewind spring,
b
8.5
: Carefully ease the spring clip (1)
off the starter post.
: Remove the pawls (1).
Installing
– Fit the new pawls in the
bores (arrows) and lubricate the
pegs (1),
b
15
1
0001RA471 TG0001RA472 TG
1
1
0001RA473 TG
1
1
: Position the spring clip (1) so that
its loops engage the pegs on the
pawls. The rounded part of the
spring clip (short arrow) must
engage the starter post’s groove.
: Push the straight part of the
spring clip over the starter post
until it snaps into the groove.
The spring clip's guide loops must
be in line with the pawls (arrows).
Check operation.
– Pull the starter rope, the rotor
turns and the pegs on the pawls
move in the direction of spring
loops – the pawls move
outwards.
– Reassemble all other parts in the
reverse sequence.
0001RA474 TG
1
0001RA190 TG
Models with ErgoStart
– Remove the ErgoStart, b
b
8.4
: Carefully ease the straight
part (2) of the spring clip out of
the groove in the starter post and
take the spring clip (1) off the
starter post.
– The rewind spring may pop out
and unwind.
– Pull out the pawls (3), check them
and clean or replace if necessary.
– Lubricate the seats of the new
pawls,
b
15
– Fit the new pawls and lubricate
their pegs with resin-free oil,
b
15
Make sure washer (4) is in place.
5902RA202 TG
1
3
3
4
2
