25MS 261, MS 261 C

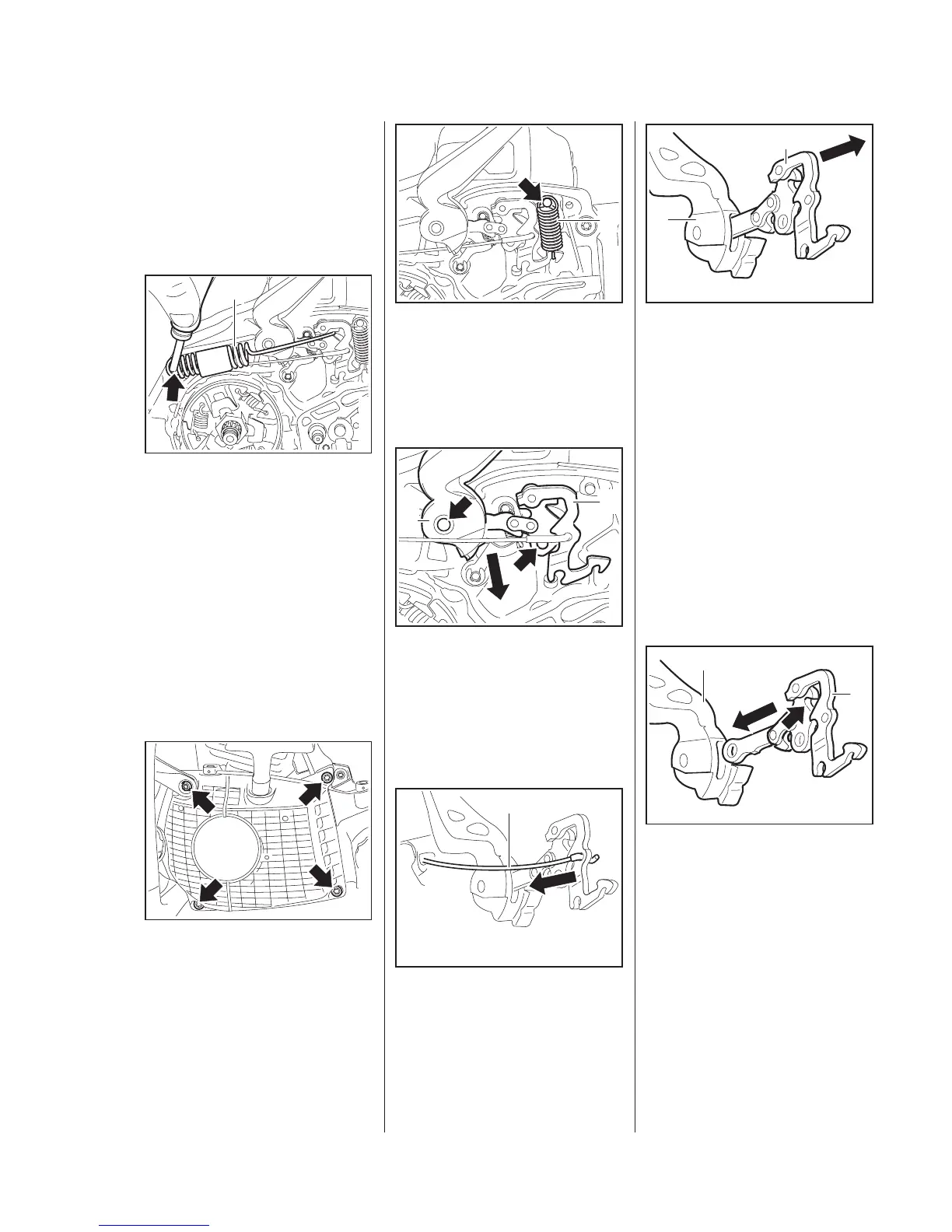

5.4 Brake lever on machines
with QuickStop Super
– Troubleshooting,
b
3.2
– Remove the brake band,
b
5.2
– Engage the chain brake.
The brake spring is now relaxed.
: Use the assembly tool
1117 890 0900 to disconnect the
brake spring (1) from the anchor
pin (arrow).
– Remove the brake spring from
the brake lever.
– Remove the shroud,
b
6.4
: Take out the screws (arrows).
: Lift the hand guard a little and
remove the fan housing.
5902RA043 TG
1
5902RA031 TG
: Disconnect the spring (1) from
the anchor pin (arrow).
– Remove the brake spring (1) from
the brake lever.
: Pull the hand guard (1) and brake
lever (2) off the pivot pins
(arrows) together.
– Remove the hand guard and
brake lever.
: Disconnect the brake cable (1).
5902RA044 TG
1
5902RA045 TG
2
1
5902RA046 TG
1
: Take the brake lever (2) out of the
hand guard (1).
– Inspect all pivot pins and replace
if necessary, b
b
5.6
– Inspect the cam lever and
replace if necessary,
b
5.5
Installing
– Clean the pivot pins and
disassembled parts,
b
15
– Lubricate the pivot pins,
b
15
: Hold the brake lever (2) so that
the brake spring attachment point
(arrow) is at the top.
: Push the brake lever (2) into the
recess in the hand guard (1) and
line up the holes.
5902RA047 TG
1
2
5902RA048 TG
1
2
