83MS 261, MS 261 C

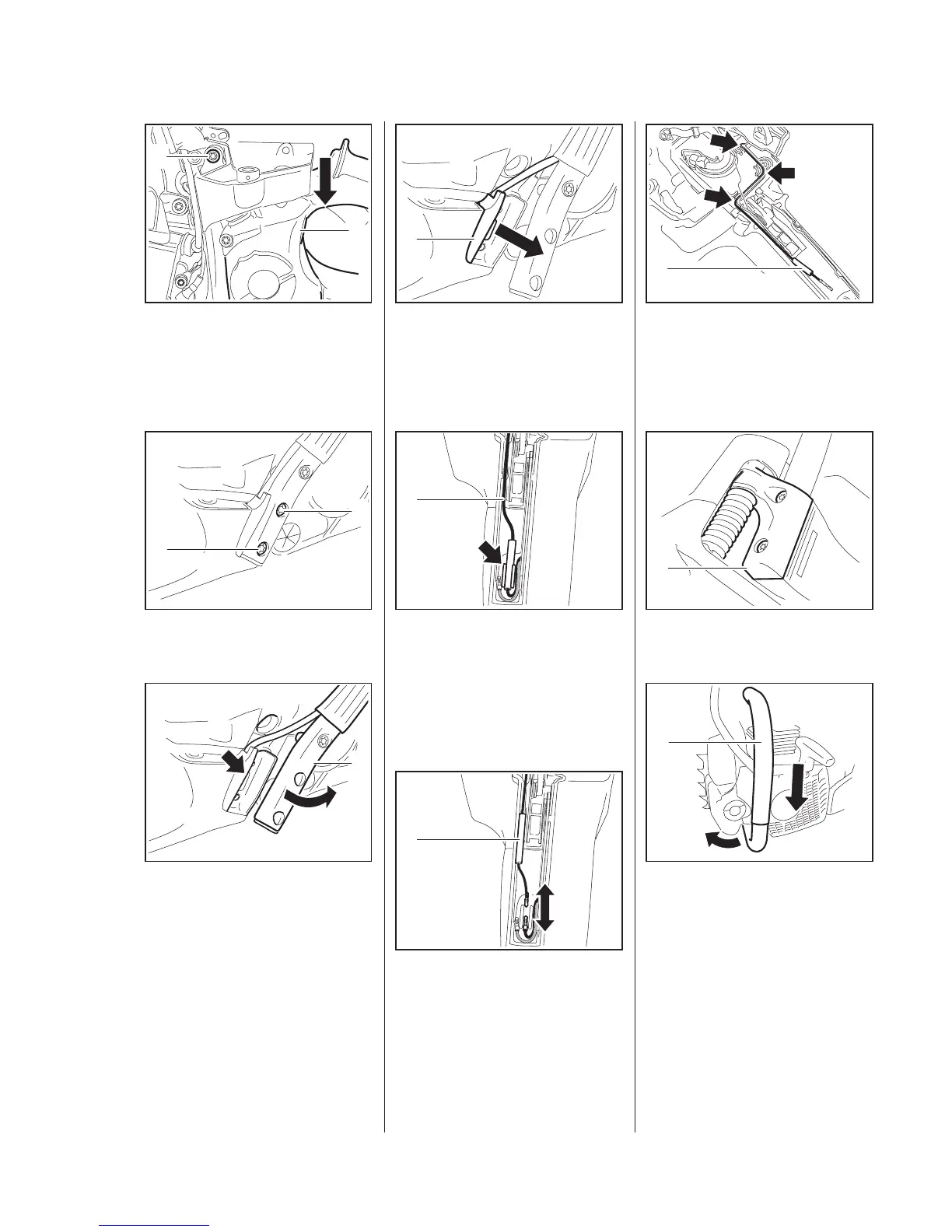

: Take out the screw (1).
– Press the tank housing (2) down
a little and hold it there.
: Take out the screws (1).
– Ease the handlebar (1) sideways
and take it out of the guide
(arrow).
1
5902RA253 TG
2
5902RA275 TG
1
1
5902RA276 TG
1
: Remove the bracket (1).
– Remove the wiring harness,
b
b
13.8
– Pull the pin and socket connector
with insulating tube out of the
guide (arrow).
: Pull the handlebar heating
wire (1) out of the cable guide.
: Push the insulating tube (1) in the
direction of the handlebar heating
element.
: Separate the pin and socket
connector.
5902RA277 TG
1
5902RA278 TG
1
5902RA279 TG
1
: Pull off the insulating tube (1).
: Pull the wires out of the
guides (arrows).
– Remove the bracket (1), b
b
9.2.1
: Push the handlebar (1) out of the
lower guide.
– Remove the handlebar.
