COMPONENT INFORMATION
2-4
Freezer Drawer Assembly - Models 511, 550
The freezer drawer assembly pulls out, providing
access to the food and ice. The drawer consists of
the following:
• Foamed drawer shell
• Door liner
• Drawer trim and handle
• Gasket
• Upper basket
• Lower basket
The drawer slides have a built-in self-closing
incline feature. The complete drawer assembly
can be removed by lifting up and out while hold-
ing the upper basket (Figure 2-8).
The lower basket is fixed to the frame assy. The
upper basket rolls in and out on the frame assy.
and drawer slides (Figure 2-9).
NOTE: Attached to the back of the bottom freezer
basket frame is a restraint clip (not shown). This
clip holds the upper roll-out basket to the frame.
This clip is not
to be removed or discarded; it is
installed to prevent child entrapment.
FREEZER DRAWER ADJUSTMENT-MODELS 511 & 550
1. Loosen the two rear screws of each cabinet
drawer slide, and remove the screw at the slide
front (Figure 2-10).
2. Relocate the front screw to the desired posi-
tion (Figure 2-10). After adjustment, tighten
all screws and reinstall the drawer. Check
door seal for proper gasket seating.
3. To adjust the drawer pitch, remove the two
plastic plugs on each side of the liner (Figure
2-11). Use a socket wrench to loosen all four
CAUTION
Freezer drawer is heavy. Use proper lifting
techniques when removing drawer assy.

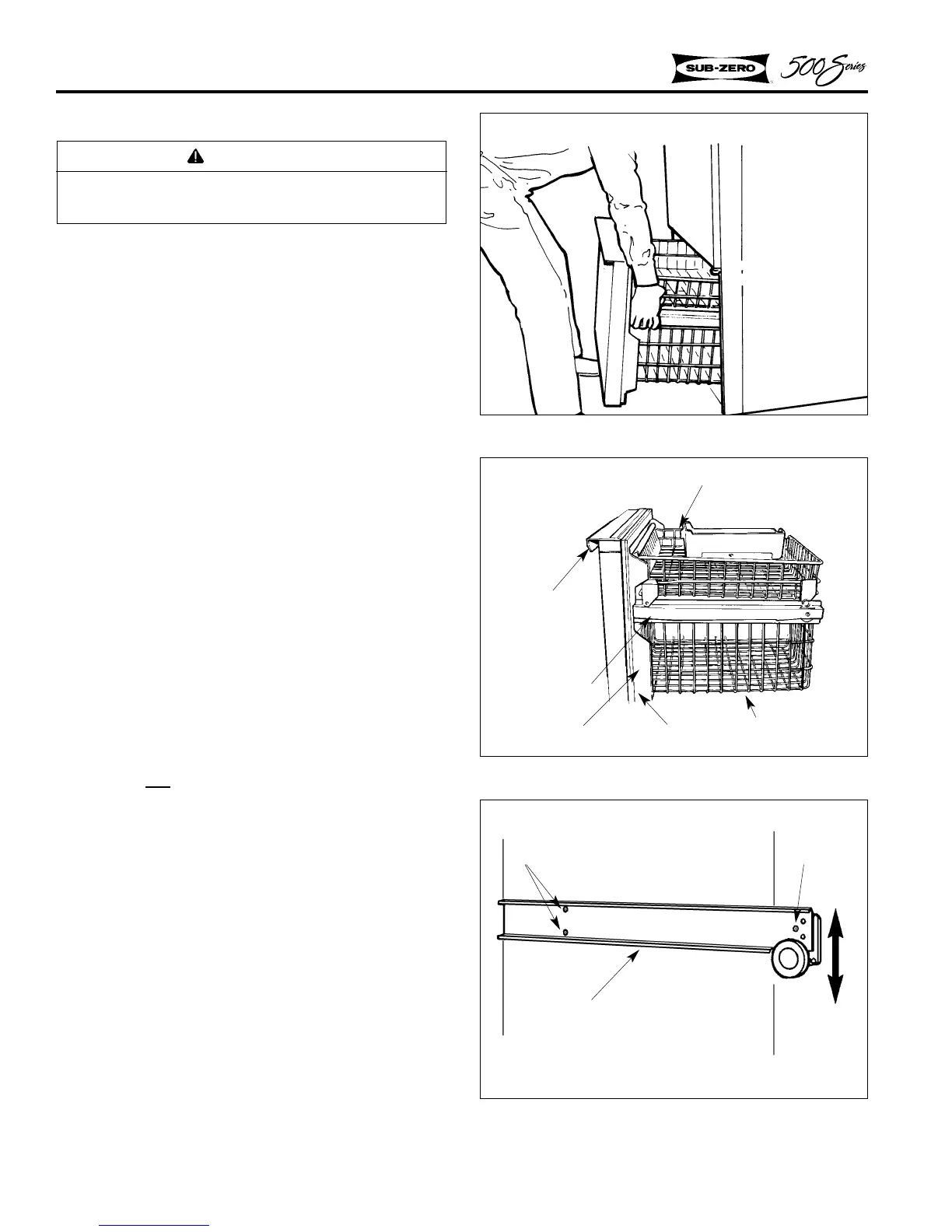

Figure 2-8 Removing Freezer Drawer
Models 511, 550
Figure 2-9. Freezer Drawer Assy.
Models 511, 550
Figure 2-10. Drawer Up-And-Down Adjustment
Models 511, 550
Freezer
Handle Assy.
Door Gasket
Door LIner
Frame Assy.
Upper Basket Assy.
Lower Basket Assy.
Cabinet Slide
Rear Screws Front Screw
