Ice Maker Assy. - Model 501F
The ice bucket is located in the top right freezer
basket (Figure 2-35).
The ice maker is connected to the ice level arm by
a connecting rod (Figure 2-36).
When the ice bucket is removed, ice production
will stop. There is a tab on the rear left hand cor-
ner of the bucket that activates the ice maker
switch (Figure 2-36).
1. To access and remove the icemaker assy.,
remove the top right freezer basket which con-
tains the ice bucket.
2. Slide the connecting rod to the right, off of the
icemaker shut-off arm, allowing the ice level
arm to drop out of the way.
3. Remove the mounting screw at the bottom left
of the icemaker which secures the icemaker
bracket to the drain trough enclosure.
4. Extract the two mounting screws at the top
rear, above the icemaker mold.
5. Pull the icemaker assy. forward and disconnect
the electrical leads from the icemaker.
COMPONENT INFORMATION
2-13
WARNING
Always disconnect electrical power to equip-
ment before attempting repairs.
CAUTION
Do not manually advance the ejector blades on
the modular ice maker.

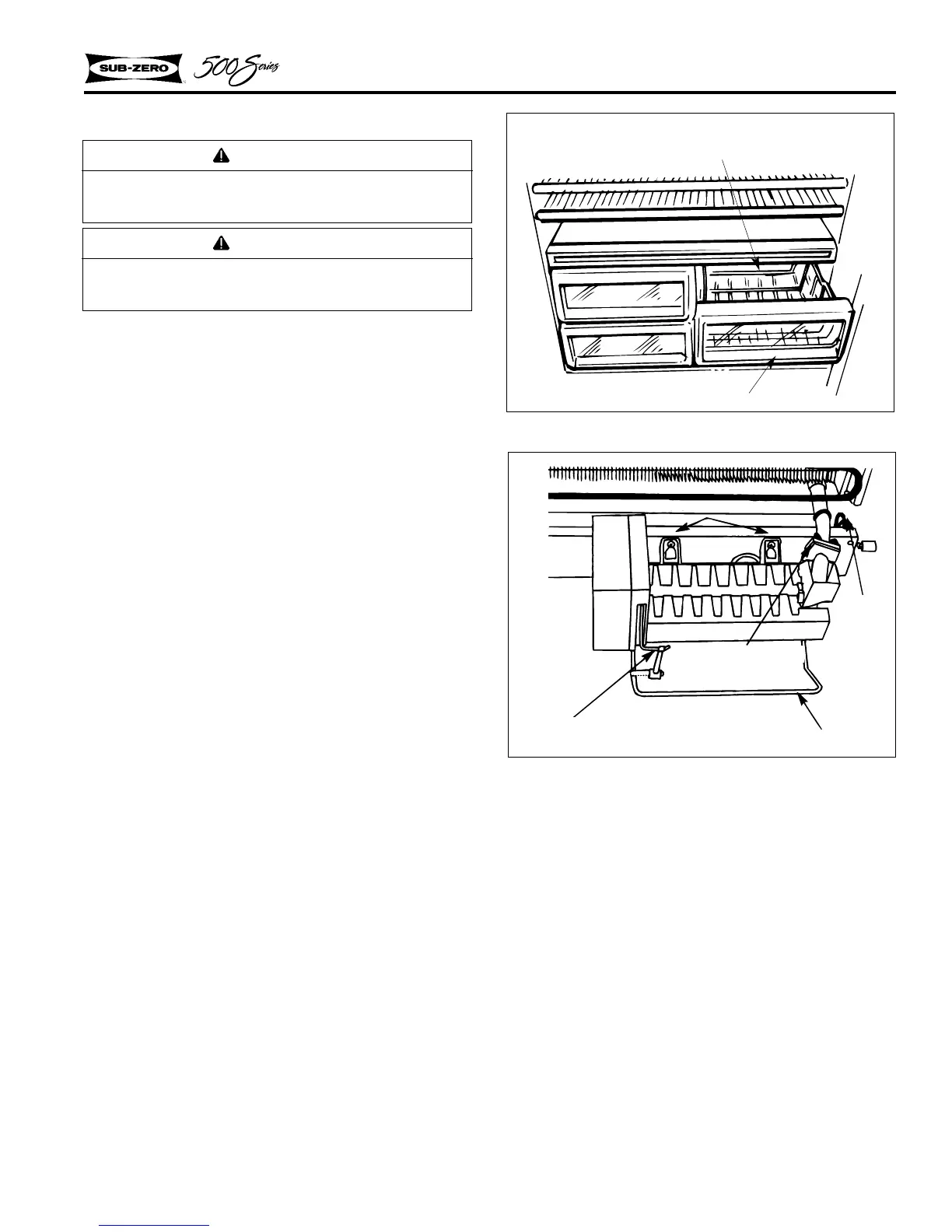

Figure 2-35. Ice Bucket
Models 501F
Ice Bucket
Freezer Basket Assy.
Figure 2-36. Icemaker Area
Connecting Rod
Screws
Ice Level Arm
Drain
Tube
Heater
Fill Tube Heater
