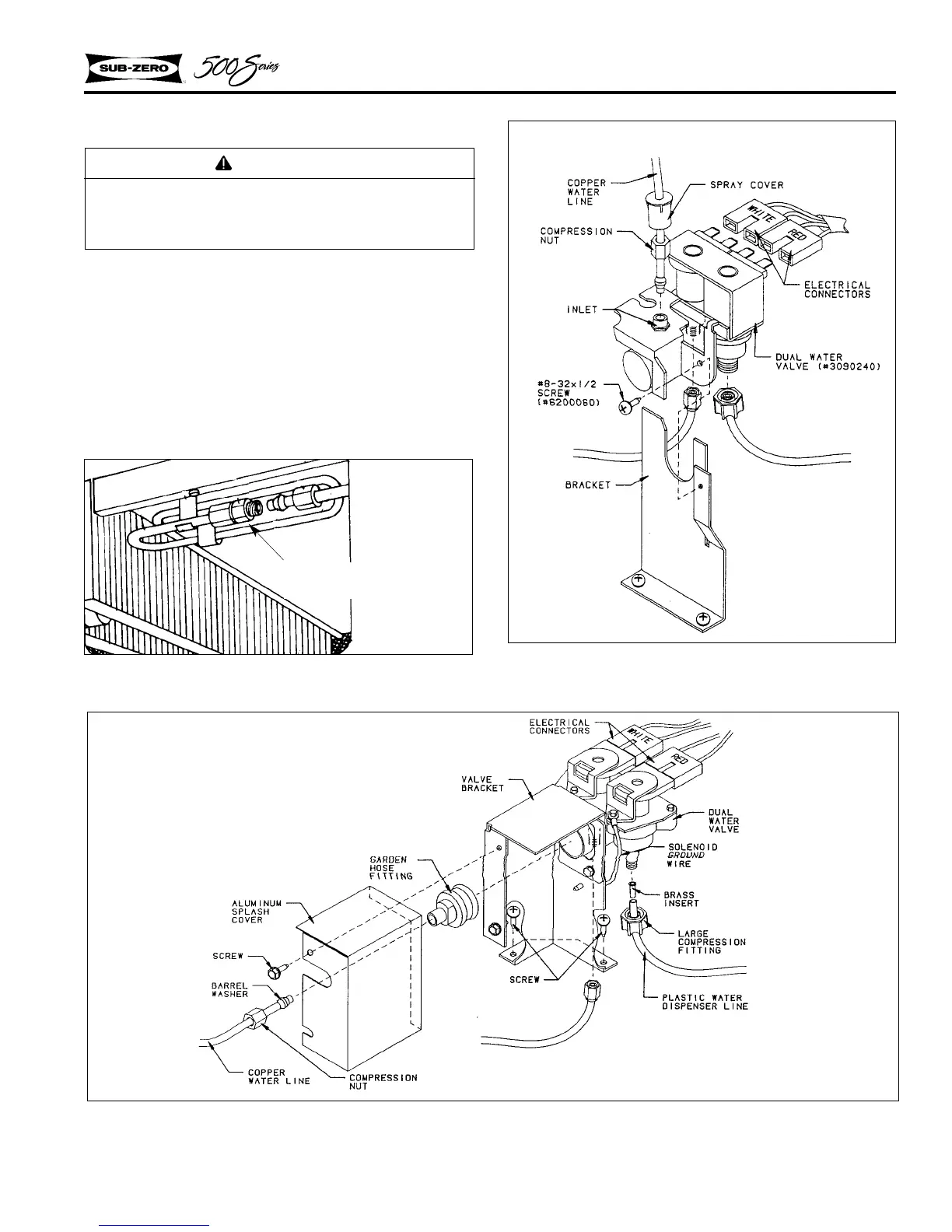

Figure 2-52. Water Valve Connection
After S/N 1259340
Figure 2-53. Water Valve Connection Prior to S/N 1259340
Model 590 prior to S/N 1259340
Model 590 after S/N 1259340
Dual Water Valve Solenoid - Model 590
The dual water valve is located in the compressor
area. The water supply connection is located
underneath the unit (Figure 2-51). A copper water
line from the supply connection is fed up the rear
duct to the dual water valve.
Figures 2-52 & 2-53 illustrate the connections at
the dual water before and after serial number
1259340.
WARNING
Always disconnect water to the unit and turn
electrical power off at the master power switch
before attempting repair.
