AIR FLOW & FAN BLADE SPACING
3-6
Refrigerator Air Flow - Model 590
(Figure 3-7)
The air travels up the back channel and across the
evaporator coil.
The cool air discharges out of the diffuser area and
is pulled downward in all directions around the
glass storage shelves, maintaining even shelf stor-
age temperatures.
The refrigerator evaporator fan motor cycles with
the refrigerator compressor.
Freezer Air Flow - Model 590 (Figure 3-8)
The cabinet air is drawn in by the fan motor assy.
across the evaporator and then forced downward.
The majority of the air is forced through an air
duct located along the back wall into the bottom of
the freezer. The remaining air flow cascades down
through the freezer baskets. The fan motor pulls
the air up and across the freezer control ice maker
returning to the evaporator coil.
NOTE: On units manufactured prior to S/N
M862414, if warmer temperatures are experienced
in the freezer basket areas, install Freezer Air
Duct Kit, part no. 4-20-099-0.

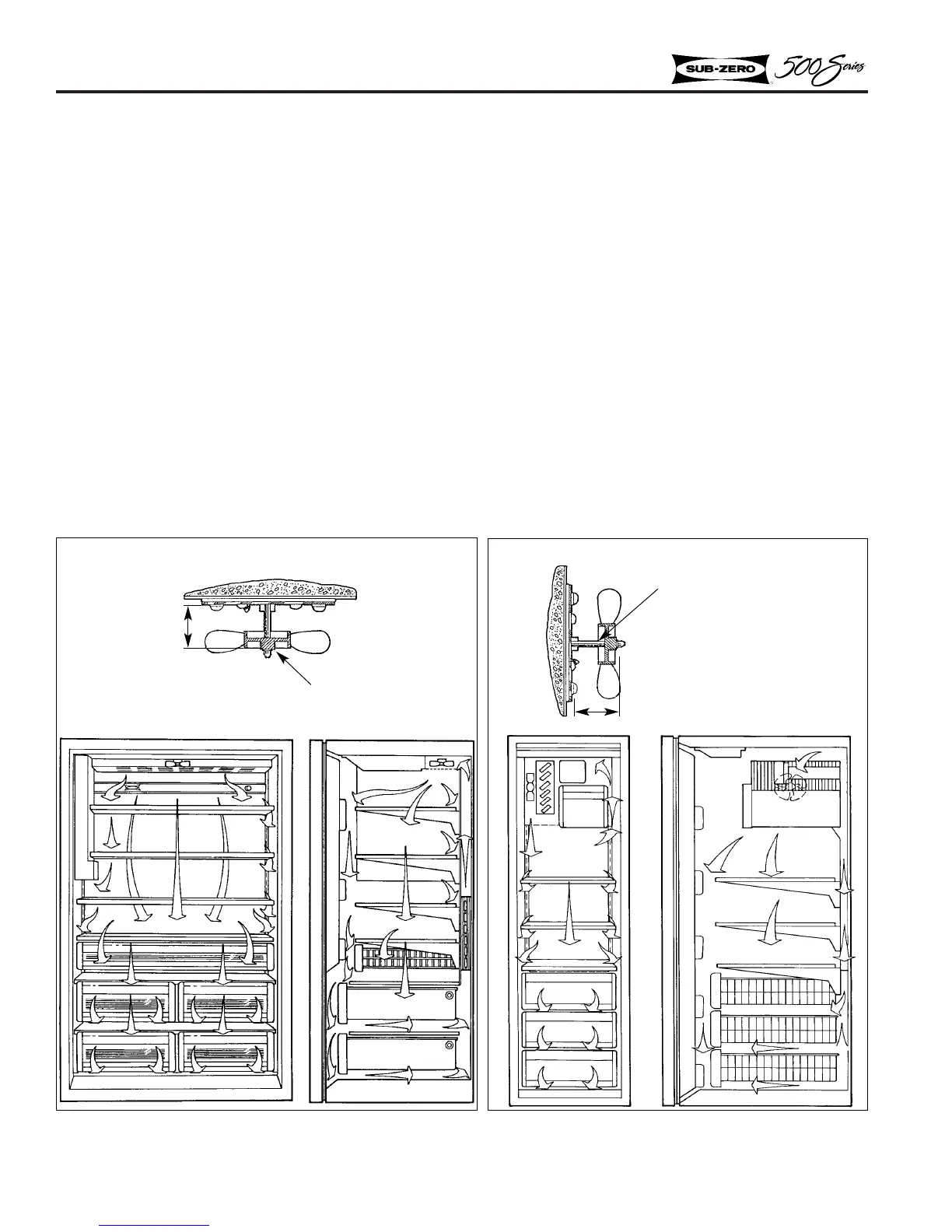

Figure 3-7. Refrigerator Air Flow - Model 690
Figure 3-8. Freezer Air Flow - Model 590
1-1/4"
Clamp Down
13/16"
Clamp Left
